Audi Q5: Steering Intermediate Shaft, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Chassis / Suspension, Wheels, Steering / Steering / Steering Intermediate Shaft, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1331 5-50Nm -VAG1331-

Removing

- Bring wheels in the straight position.

- Position the steering wheel as far down as possible using the full range of the steering column adjuster.

- Turn the steering wheel to the center position (wheels are straight).

- Move the driver seat forward to the stop.

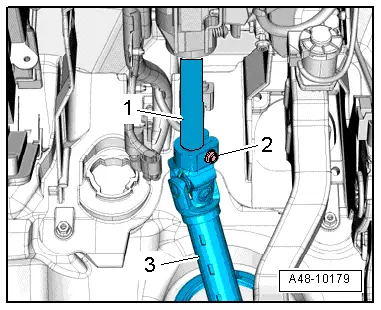

- Remove the bolt -2- and remove the steering intermediate shaft -3- from the steering column -1-.

- Place the vehicle on a hoist.

Audi Q5. A48-10179

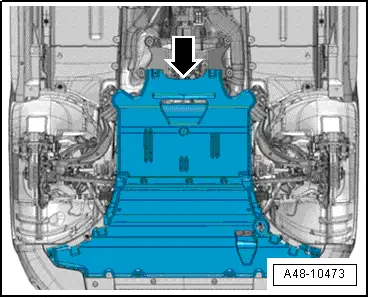

- Remove the rear noise insulation -arrow-.

Audi Q5. A48-10473

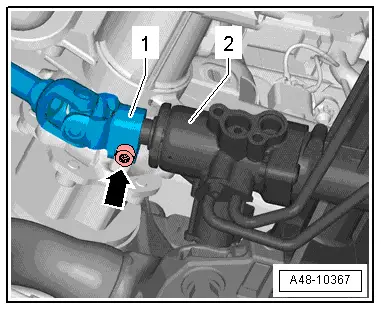

- Remove the bolt -arrow-.

- Remove the steering intermediate shaft -1- from the steering gear -2-.

  WARNING

Danger of getting burned by the exhaust system depending on the engine installed.

Audi Q5. A48-10367

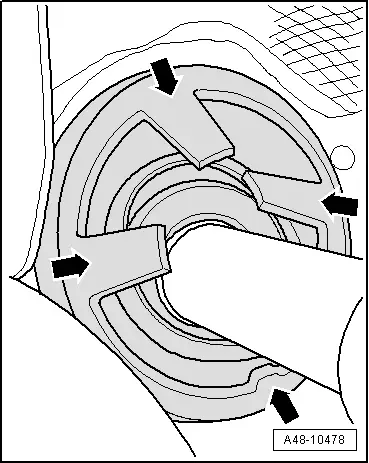

- Remove the protective boot on the straps -arrows- from the body.

- Remove the steering intermediate shaft toward the passenger compartment.

Installing

Install in reverse order of removal. Note the following:

- The threaded holes for the screws must always be cleaned, for example, with a thread cutter.

- Install the steering intermediate shaft.

Audi Q5. A48-10478

- Install the steering intermediate shaft -3- on the steering column -1- as far as the stop and tighten the bolt -2-.

Audi Q5. A48-10179

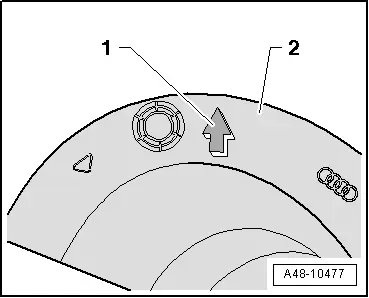

- Install the protective boot -2- as far as possible. Make sure, that the arrow -1- points upward.

Audi Q5. A48-10477

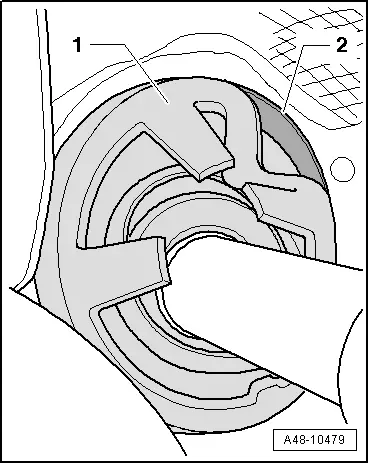

- Pull the protective boot -1- through the opening.

- Mount the protective boot -1-, without turning it, completely over the collar -2-.

- Then check the installation position of the protective boot above the marking inside the passenger compartment. If necessary, loosen the protective boot and turn it to the correct installation position.

Audi Q5. A48-10479

- The mount the steering intermediate shaft -1- all the way onto the steering gear -2- and tighten the bolt -arrow-.

Install in reverse order of removal.

Audi Q5. A48-10367
