Audi Q5: Overview - Window Regulator

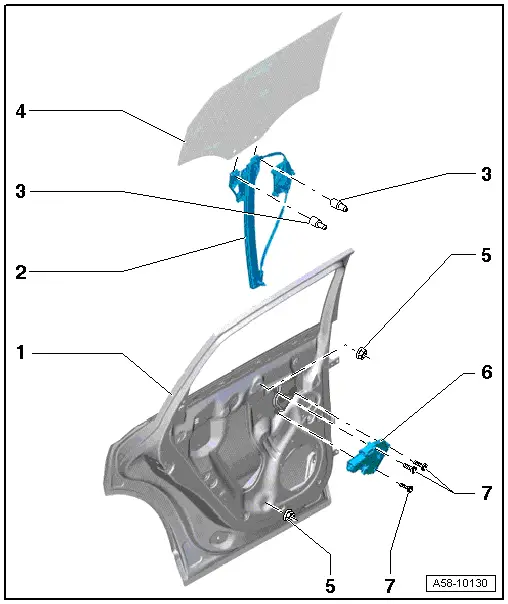

Audi Q5. Overview - Window Regulator

1 - Door

2 - Window Regulator

  • Removing and installing. Refer to → Chapter "Window Regulator, Removing and Installing".

3 - Clip

4 - Door Window

  • Removing and installing. Refer to → Chapter "Front Door Window, Removing and Installing".

5 - Nut

  • 6 Nm

6 - Window Regulator Motor

  • Removing and installing. Refer to → Chapter "Window Regulator, Removing and Installing".

7 - Bolt

  • 3.5 Nm
  • Quantity: 3

Overview - Door Handle and Door Lock

Door Handle and Door Lock

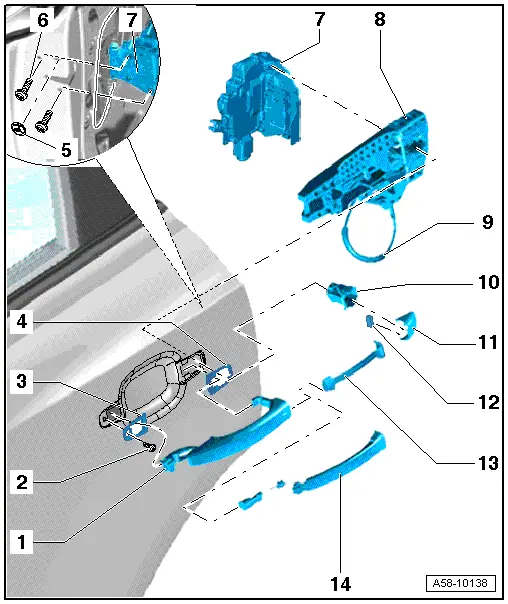

Audi Q5. Overview - Door Handle and Door Lock

1 - Exterior Door Handle

  • Before installation, front and rear backing installed in door outer panel.
  • Removing and Installing. Refer to → Chapter "Door Handle, Removing and Installing".

2 - Bolt

  • 2.5 Nm

3 - Front Backing

4 - Rear Backing

5 - Cap

  • Unclip prior to removing the exterior door handle.

6 - Bolt

  • 19 Nm

7 - Door Lock

  • Removing and installing. Refer to → Chapter "Door Lock, Removing and Installing".

8 - Bracket

  • The rear backing -5- is pushed into the outer door panel.
  • To install, engage mounting bracket with loosely installed screw -10- in door, slide forward and tighten screw to 2.5 Nm.

9 - Operating Cable

  • Engage in door lock.

10 - Housing

  • Before installing, attach cover cap -7-.
  • Removing. Refer to → Chapter "Door Handle, Removing and Installing".

11 - Cap

  • Removing and installing.

12 - Magnet

  • For vehicles with the "keyless entry system"

13 - Exterior Door Handle Trim

  • For vehicles without the "keyless entry system"
  • Removing and installing. Refer to → Chapter "Door Handle Trim, Removing and Installing".

14 - Left and Right Rear Outside Door Handle Touch Sensor, Removing and Installing

  • For vehicles with the "keyless entry system"
  • Removing and installing. Refer to → Chapter "Rear Outside Door Handle Touch Sensor - G417-/- G418-, Removing and Installing".

Door Lock and Catch

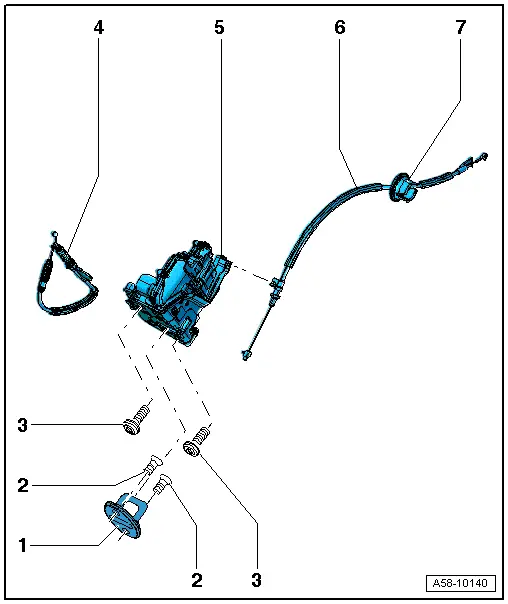

Audi Q5. Door Lock and Catch

1 - Catch

  • Removing and installing. Refer to → Chapter "Catch, Removing and Installing".

2 - Bolt

  • 25 Nm

3 - Bolt

  • 19 Nm

4 - Door Lock Cable

5 - Door Lock

  Caution

There is a risk of malfunctions.

The door lock must be removed and installed together with the bracket to prevent overbending the cable when disengaging and engaging it.

The cable must be disconnected from/attached to the lever on the door lock outside of the door.

  • Removing and installing. Refer to → Chapter "Door Lock, Removing and Installing".

6 - Interior Door Mechanism Cable

  • Removing and installing. Refer to → Chapter "Operating Cable for Interior Door Mechanism, Removing and Installing".

7 - Grommet

  • Cannot be replaced separately.

Door Lock

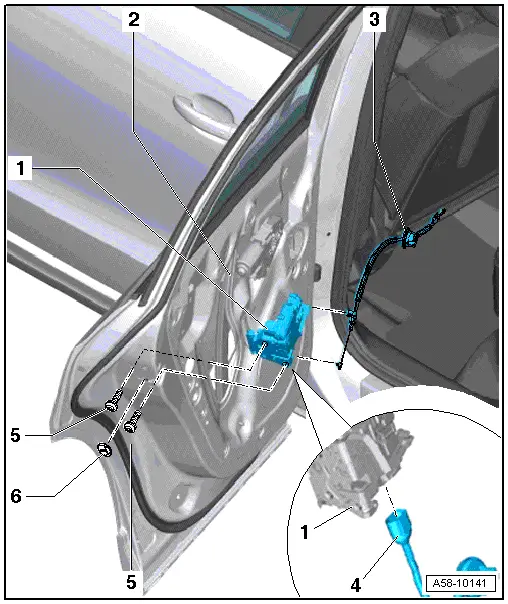

Audi Q5. Door Lock

1 - Door Lock

  • Removing and installing. Refer to → Chapter "Door Lock, Removing and Installing".

2 - Door

3 - Door Opener Cable

4 - Connector

5 - Bolt

  • Tightening specification, refer to -item 3-

6 - Cap

Overview - Housing

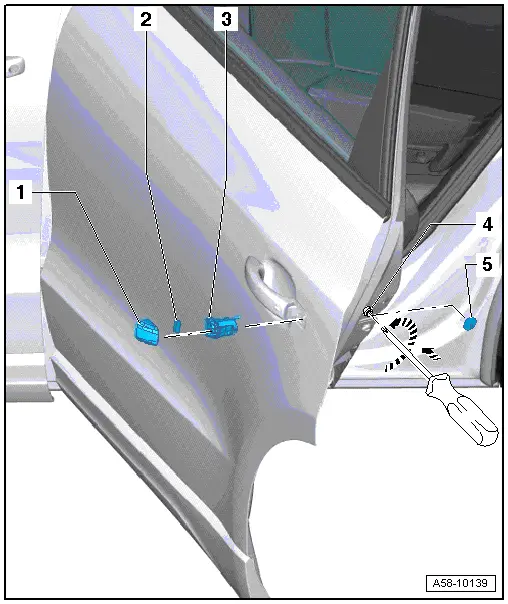

Audi Q5. Overview - Housing

1 - Cap

  • Removing from the housing.

2 - Magnet

  • For vehicles with the "keyless entry system"

3 - Housing

  • Remove the screw from the clip.

- Using a screwdriver, press the retaining bracket and then remove the lock cylinder and cap.

4 - Clip

  • No replacement part, supplied with the mounting bracket

5 - Cover

Overview - Window Guides and Window Shaft Strips

Window Guide

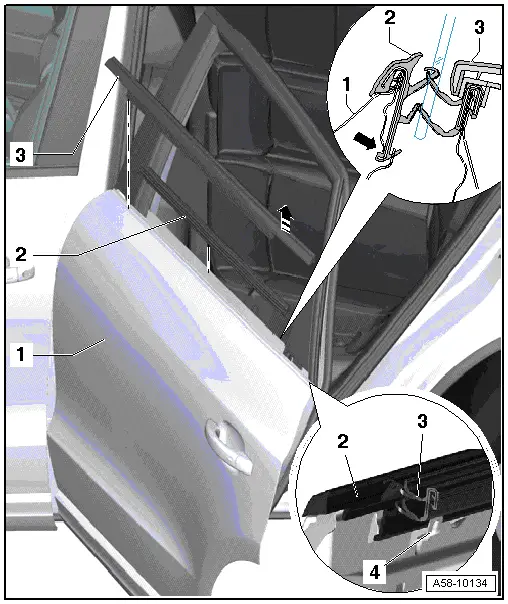

Audi Q5. Window Guide

1 - Window Guide

  • The door window is removed. Refer to → Chapter "Rear Door Window, Removing and Installing".

- Remove the window guide from the door starting at the top and at the sides on the "B-pillar" and "C-pillar".

- Remove the window guide from the door.

  • For easier installation, coat window guide with a soap solution.
  • Push the window guide into the guide shafts as illustrated.
  • Press the window guide with the latching tabs into the door.

2 - Door

3 - Door Window

  • Removing and Installing. Refer to → Chapter "Overview - Rear Door Window".

Window Shaft Strips

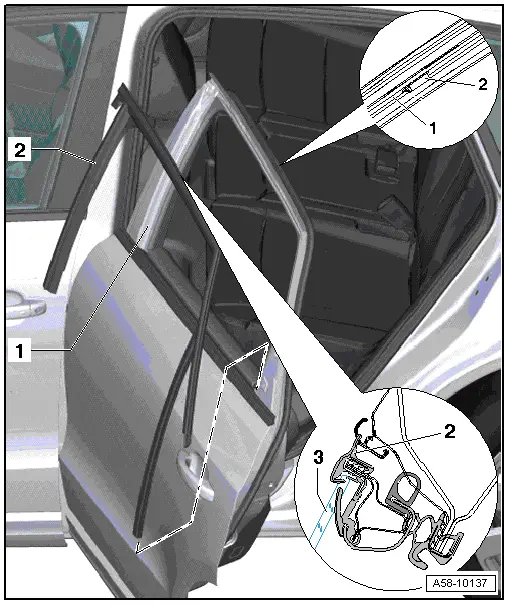

Audi Q5. Window Shaft Strips

1 - Door

2 - Outer Window Shaft Strip

  • Must be replaced after removing
  • Removing: Refer to → Chapter "Outer Window Shaft Strip, Removing and Installing".

3 - Inner Window Shaft Strip

  • Removing:

The door trim panel is removed. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Remove shaft strip upward.

4 - Catches

  • quantity: 4
