Audi Q5: Door Inner Cover, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body Exterior / Rear Doors / Door Inner Cover, Removing and Installing

Audi Q5. Door Inner Cover, Removing and Installing

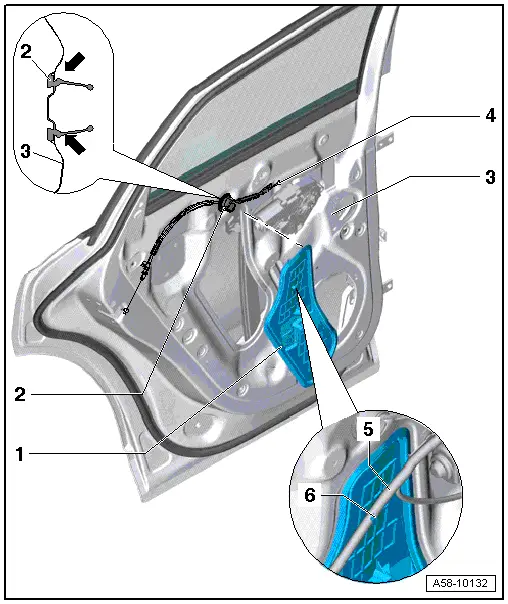

1 - Cover

- Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Remove the wiring harness -4- from the bracket -5-.

- When removing the cover, always start at the top.

2 - Grommet

  • When installing, it must fit correctly -arrows-.

3 - Inner Door Panel

4 - Cable

5 - Wire

  • Release at the bracket -6-.

6 - Bracket

Window Regulator, Removing and Installing

Audi Q5. Window Regulator, Removing and Installing

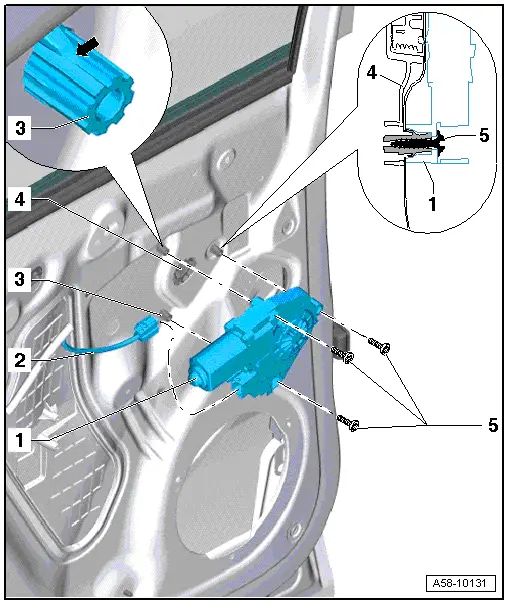

1 - Window Regulator Motor

  Note

The window regulator motor can be removed or installed with the motor or door window in any position.

  • Removing:
    • Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.
    • Remove the screws -6- and remove the window regulator motor from the window regulator.
  • Installing
  • Tightening specification. Refer to → Chapter "Overview - Window Regulator".
  • The clips -arrow- for the window regulator threaded pins must be latched into the inner door panel.

- Mount the window regulator motor on the threaded pins and tighten the screws -6-.

  Note

  • With the window regulator motor switches connected, switch the ignition on and run the door windows up to the stop.
  • Continue holding the window regulator switch for approximately 2 seconds so the basic setting and one-touch up/down function are activated.

2 - Connector

- Disconnect the connector from the door control module.

3 - Threaded Pin

4 - Window Regulator

5 - Bolt

Window Regulator, Removing and Installing

Audi Q5. Window Regulator, Removing and Installing

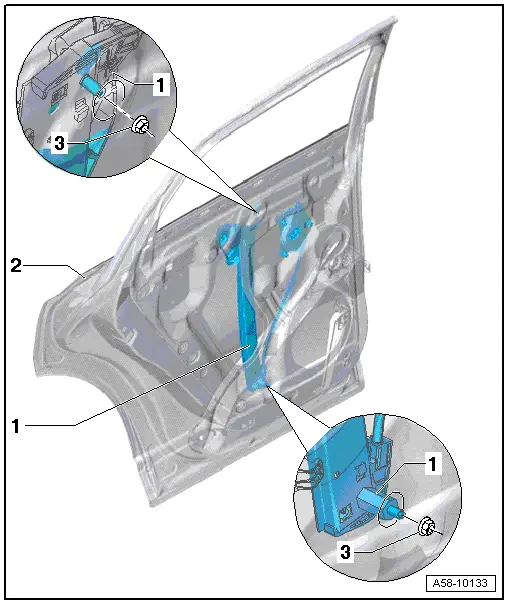

1 - Window Regulator

  • Removing:
    • The door trim panel is removed. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.
    • The window regulator motor is removed. Refer to → Chapter "Window Regulator, Removing and Installing".
    • The door window is removed. Refer to → Chapter "Front Door Window, Removing and Installing".
    • The door gap cover is removed. Refer to → Chapter "Door Inner Cover, Removing and Installing".

- Release the window regulator motor threaded pins and push it through the inside panel.

- Only loosen the upper nut.

- Remove the lower nuts and lift the window regulator out of the "key hole".

- Remove the window regulator through the opening in the door inner panel.

2 - Door

3 - Nut

  • 6 Nm
  • For removing the window regulator, only loosen the top, remove the bottom.

Threaded Pins, Releasing

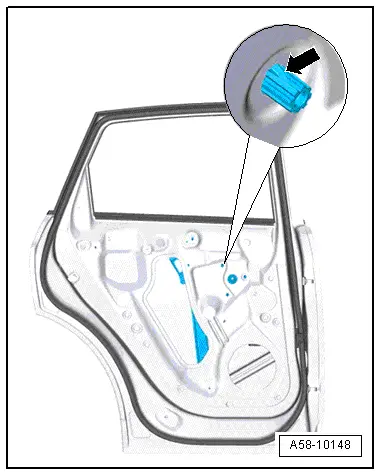

- Release the clips -arrow- on the window regulator threaded pins -3- using an 11 mm socket by sliding the socking onto the threaded pins.

Audi Q5. A58-10148

Upper Connecting Point for the Window Regulator

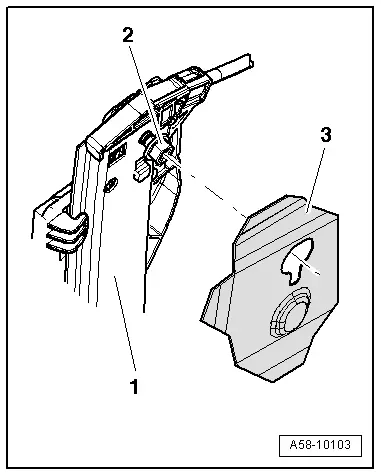

- To remove the window regulator -1- only remove the nut -2-.

Audi Q5. A58-10103

Housing, Removing and Installing

Removing

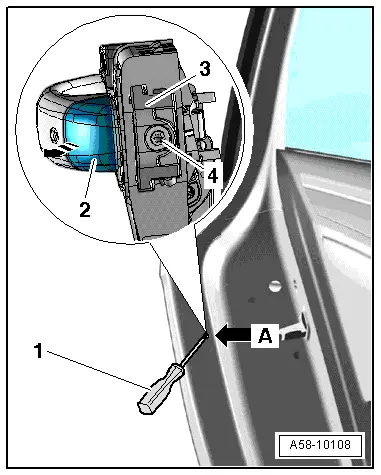

- Press the door outer seal to the side and remove the protective film over the hole -arrow A-.

- Remove the locking bolt -4- as far as the stop using a screwdriver -1-.

- Press the housing retaining bracket -3- inward.

- Remove the housing -2- from the mounting bracket -arrow B-.

Installing

Install in reverse order of removal.

Audi Q5. A58-10108

Housing Cap, Removing and Installing

Removing

- Remove the housing. Refer to → Chapter "Housing, Removing and Installing".

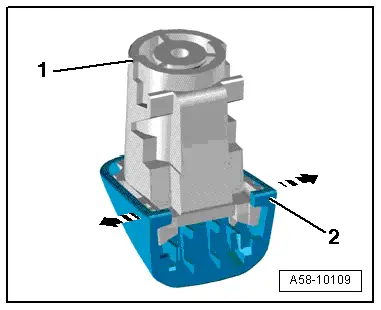

- Spread the clips -arrows- and remove the cover cap -1- from the housing -2- using an awl if necessary.

Installing

Install in reverse order of removal. Note the following:

- Press the housing cover cap on until it engages audibly.

Audi Q5. A58-10109
