Audi Q5: Door Arrester, Removing and Installing

Removing

- Move the door window into the "closed" position.

- Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

- Remove the lower speaker. Refer to → Communication; Rep. Gr.91; Sound System; Left/Right Front Bass Speaker R21/R23, Removing and Installing.

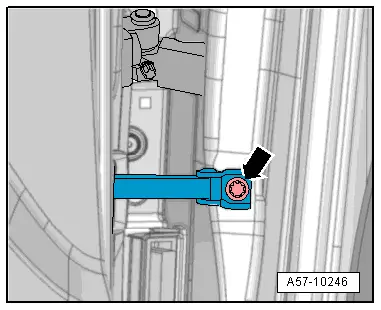

- Remove the door arrester bolt -arrow-.

Audi Q5. A57-10246

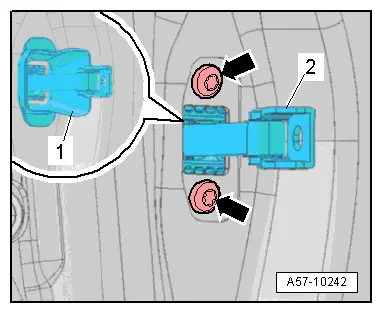

- Remove the door arrester seal -1- on the door opening.

- Remove the bolt -arrows- and remove the door arrester -2- inward.

Audi Q5. A57-10242

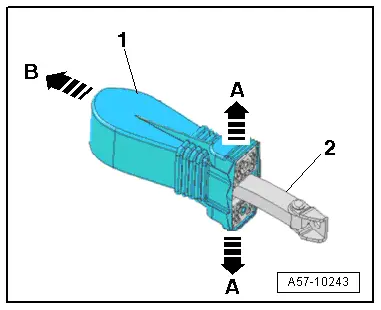

- Pull the rubber grommet -1- on the door arrester to the side slightly -A arrows-.

- Remove the rubber grommet from the door arrester -2--arrow B-.

Installing

- Install the lower speaker. Refer to → Communication; Rep. Gr.91; Sound System; Left/Right Front Bass Speaker R21/R23, Removing and Installing.

- Install the door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

Audi Q5. A57-10243

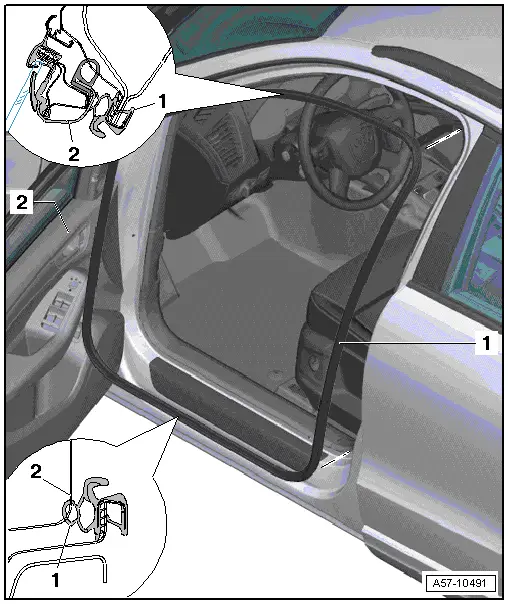

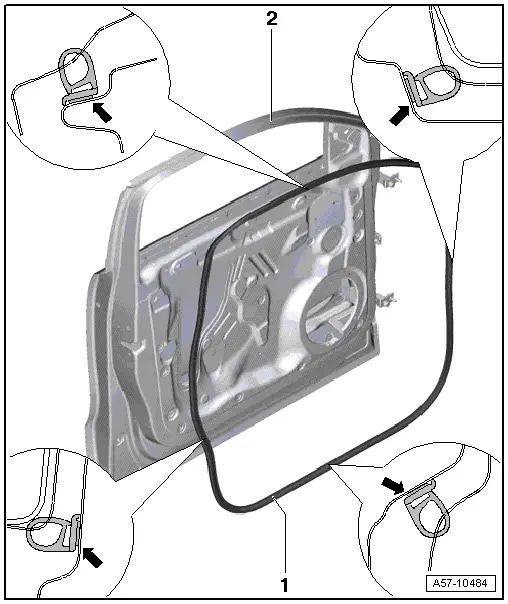

Inner Door Seal, ‏Removing and Installing

Audi Q5. Inner Door Seal, ‏Removing and Installing

1 - Inner Door Seal

  • Remove the upper and lower A-pillar trim panel and B-pillar trim panel. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; Component Location Overview - Passenger Compartment Trim.
  • Remove the front grab handle. Refer to → Body Interior; Rep. Gr.68; Equipment; Roof Grab Handle, Removing and Installing.
  • Connected all around on body flange
  • To remove, remove from body flange.
  • When installing, align the seal with the center of the vulcanized joint on the lower hinge and press it by hand onto the body flange.

2 - Door

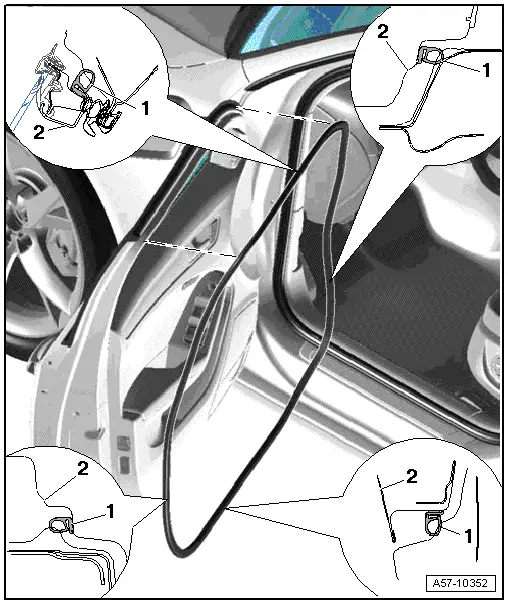

Outer Door Seal, Removing and Installing

Special tools and workshop equipment required

  • Roller -3356-
  • Adhesive Strip Remover -VAS6349-

  Note

  • The door outer seal is completely bonded and can only be replaced.
  • The vehicle and the outer door seal must be at room temperature.
  • The adhesive surfaces must free of dust and grease. Clean with Cleaning Solution -D 009 401 04-.
  • Apply Bonding Agent -D 355 205 A2- on the surface on the body side using the Applicator -D 009 500 25- and let dry for 10 minutes.
  • The water drain hole is found on the underside of the door if it was installed correctly.

Audi Q5. Outer Door Seal, Removing and Installing

1 - Outer Door Seal

  Note

Before removing, mark the position on the door with tape.

  Note

Make sure there is no adhesive left on the door, first pull the seal lengthwise and then pull it off the door.

  • Removing

- Remove the window frame trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Overview - Front Door Trim Panel.

- Slightly lift the seal at the top of the window frame and cut it with commercially available scissors.

- First pull the seal lengthwise, then remove it a bit at a time.

  • Installing

- The adhesive surfaces must be free of dust and grease. Clean them with Cleaning Solution - D 009 401 04- and remove adhesive residue with Adhesive Strip Remover - VAS6349- if necessary.

- Apply the Adhesive -D 355 205 A2- with Applicator -D 009 500 25-in the adhesion area and let it dry for 10 minutes.

- Loosen the door arrester on the body.

- Pull the door outer seal behind the door arrester.

- Secure the door arrester again.

  Note

  • Line up the marking on the door outer seal with the corner at the top of the B-pillar.
  • Secure the door outer seal to the top of the window frame on the left and on the right with tape. Refer to -item 2-.
  • When positioned correctly, the 3 water drain holes are in the lower door outer seal at the bottom of the door.
  • It is necessary to press the door outer seal starting in the center and the working outward left and right in steps.

- Remove off the peel-off backing near the bottom of the door.

- Press the door outer seal starting in the center and working outward left and right.

- Continue to remove the peel-off backing little by little and press the door outer seal onto the door.

- Press the door outer seal upward along the A-pillar and B-pillar.

- Press the door outer seal along the window frame.

  Caution

  • Do not stretch or crush the seal when installing it.
  • The seal will come off wherever it is stretched or crushed along the bottom or on the A- or B-pillar.
  • The door outer seal can be bent or crushed only in the are around the top of the window frame because window frame cover will hold it place.

- Press the end of the outer door seal on firmly. Refer to -item 2- with a Roller - 3356-.

  Caution

Do not close the door for at least 2 hours to prevent loosening or moving the door outer seal. The vehicle must be at room temperature.

2 - Door

Door Arrester, Loosening

- Remove the door arrester bolt -arrow-.

- Pull the seal behind the door arrester and tighten the screw to the tightening specification. Refer to -item 6-.

Mark the position of the door seal.

Audi Q5. A57-10246

- Mark the position of the seal on the window frame with adhesive tape and ...

Audi Q5. A58-10122

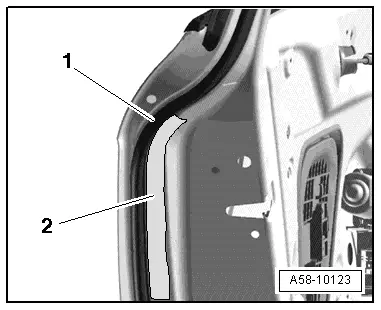

- ...around the door lock

Audi Q5. A58-10123

Seal, Removing

  Note

Pulling the seal laterally will loosen the adhesive and then it is possible to remove the door outer seal from the window frame without any left over adhesive on it.

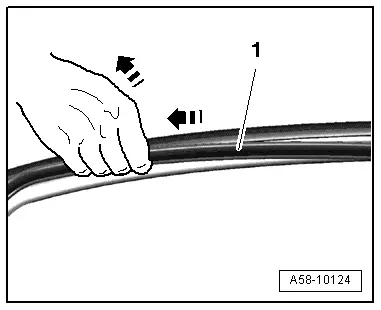

- Bend the door outer seal -1- laterally as illustrated -arrow- and remove it.

- Proceed the same way all around and remove the door outer seal completely.

- Remove any left over adhesive on the window frame with Adhesive Strip Remover -VAS6349-.

Audi Q5. A58-10124

Replace the door outer seal on a new door.

  Note

  • The seal must be pressed over the complete radius (inner) as illustrated -arrows-.
  • To make it easier to install, mark these distances and then press the seal on.

Audi Q5. Replace the door outer seal on a new door.

1 - Outer Door Seal

  • After marking the radius run-out, continue to install in the previously described manner, refer to → Chapter "Outer Door Seal, Removing and Installing"

- Press the entire seal on firmly with a Roller - 3356-.

2 - Door

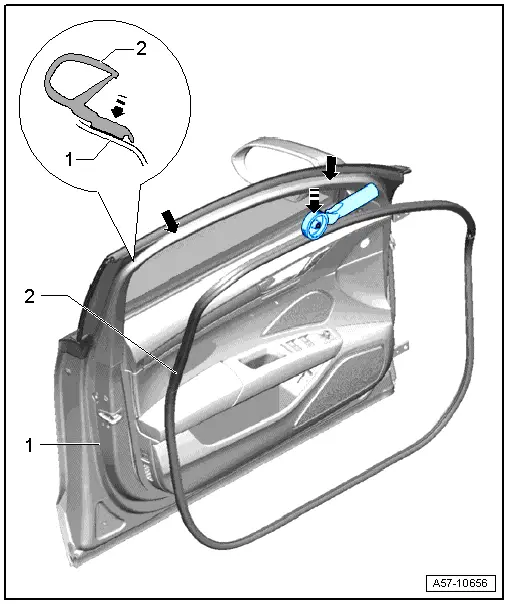

Outer Door Seal, Pressing On

Audi Q5. Outer Door Seal, Pressing On

1 - Front Door

2 - Outer Door Seal

- Tape the door outer seal to the top of the window frame first -arrows-.

  Caution

Use only a Roller - 3356- to press the seal firmly at the seal base.

- Fold up the door outer seal as illustrated and then press it on firmly at the seal base all the way around with a Roller -3356-.
