Audi Q5: Disconnecting And Connecting The Connector To The Connector Station

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body  Interior / Seat Frames / Disconnecting And Connecting The Connector To The Connector Station

  Note

The connector station is located in the vehicle floor under the front seat area.

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-
  • Airbag Lockout Adapter - VAS6281-

Connectors, Disconnecting

  WARNING

Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".

- Bring headrest into lowest lock position.

- Move seat as far back and up as possible.

- Turn on the ignition.

- Disconnect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

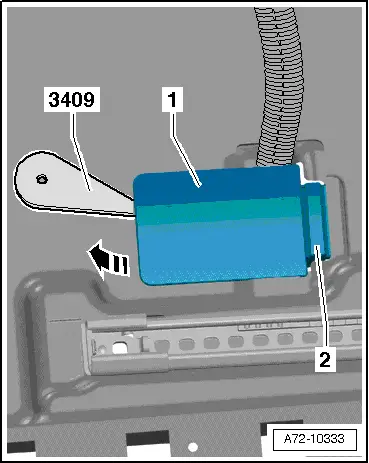

- Unclip the front cover -1- with Trim Removal Wedge -3409- and pull cover in -direction of arrow- off the connector station-2-.

Audi Q5. A72-10333

- Remove the wire holder -3- from the connector station.

  Note

The number of connectors can vary depending on equipment. The description shows the version with the most equipment possible.

  WARNING

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

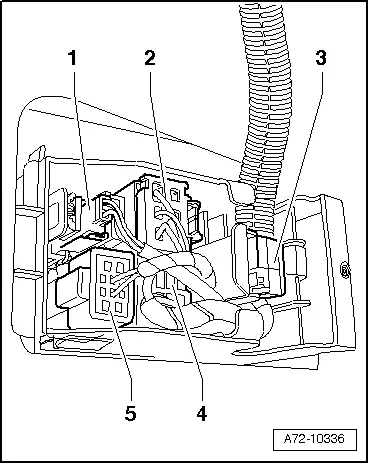

- Remove side airbag connector -1-.

- Connect the Airbag Lockout Adapter -VAS6281- to the side airbag connector on the front seat. Refer to → Chapter "Airbag Adapter, Connecting and Disconnecting".

- Versions with heated seats: Remove seat heating connector -2-.

- Versions with power seats: Remove the seat adjustment power supply connector -4-.

- Disconnect the seat belt latch connector -5-.

Audi Q5. A72-10336

Vehicles with DVD Player:

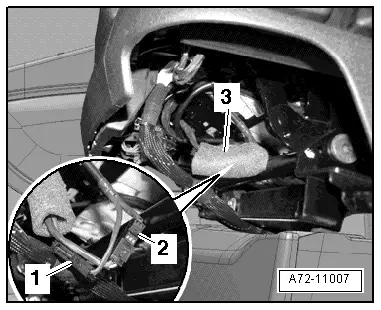

- Push the grommet -3- to the side.

- Disconnect and free up the electrical connectors -1- and -2- and free up the wiring harness.

Audi Q5. A72-11007

Connectors, Connecting

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

Connectors are connected in the following sequence, note the following:

  Note

Make sure the connectors are installed correctly and are secure.

  WARNING

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

  DANGER!

When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.

Perform the following before switching on the ignition:

  • Move the selector lever into P.
  • Activate the parking brake
  • Turn off the ignition.
  • Open the hood
  • Connect Battery Charger -VAS5095A- to the battery jump start terminal.
  • Turn on the ignition.

- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

  Note

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again. Refer to Vehicle Diagnostic Tester.

Airbag Adapter, Connecting and Disconnecting

Special tools and workshop equipment required

  • Airbag Lockout Adapter - VAS6281-

Disconnecting the Airbag Connector

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Disconnect the side airbag connector. Refer to → Chapter "Disconnecting And Connecting The Connector To The Connector Station".

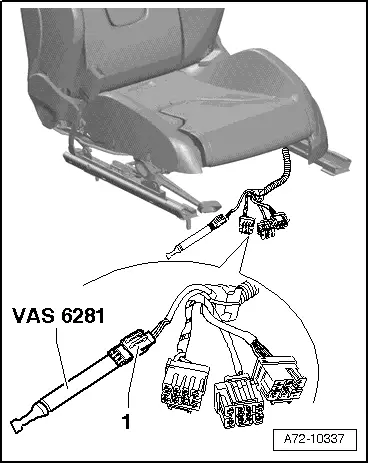

- Connect Airbag Lockout Adapter -VAS6281- to side airbag connector on seat side -1-.

Audi Q5. A72-10337

  Caution

The Airbag Lockout Adapter -VAS6281- must stay connected to seat until seat is installed again.

  Note

Ensure airbag adapter engages correctly.

Airbag Connector, Connecting

Airbag connectors are connected in the following sequence, note the following:

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

  Note

Make sure the connectors are installed correctly and are secure.

  WARNING

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

  DANGER!

When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.

Perform the following before switching on the ignition:

  • Move the selector lever into P.
  • Activate the parking brake
  • Turn off the ignition.
  • Open the hood
  • Connect Battery Charger -VAS5095A- to the battery jump start terminal.
  • Turn on the ignition.

- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

  Note

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again. Refer to Vehicle Diagnostic Tester.
