Audi Q5: Seat Height Adjuster, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body  Interior / Seat Frames / Seat Height Adjuster, Removing and Installing

Removing

  Caution

Move the front seat to the highest possible position. This reduces the spring force when removing and installing the seat height adjuster.

Seat height adjustment handle:

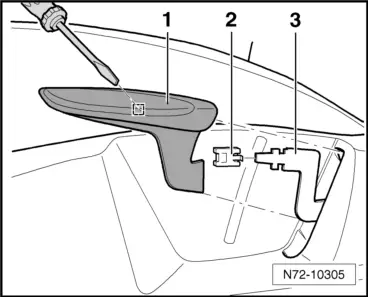

- Pull seat height adjustment handle -1- up as far as the stop and hold it in that position.

- Carefully pull the seat height adjustment slightly off the front seat.

- Push the spring on the clamp -2- on the inside of the seat height adjustment handle toward the outside with a small screwdriver and remove the handle -3-.

Seat height adjuster:

- Move the front seat all the way forward and raise it as high as possible. Then lower it one stroke.

- Remove the seat side sill panel trim.

  • Front seat manual. Refer to → Chapter "Sill Side Trim, Removing and Installing, Standard/Sport Manual Seats".
  • Passenger folding seat. Refer to → Chapter "Sill-Side Trim, Removing and Installing, Front Passenger Side Folding Seat".

Audi Q5. N72-10305

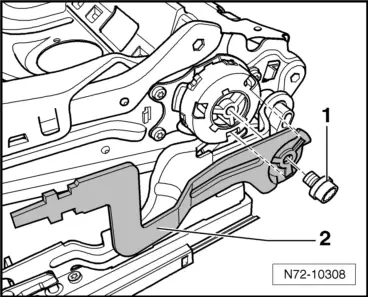

- Remove the bolt -1-.

- Remove the lever -2- from the seat height adjuster.

Audi Q5. N72-10308

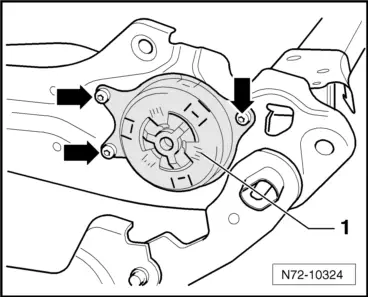

- Remove the bolts -arrows-.

- Loosen and remove the seat height adjustment -1- from the backward adjustment.

Installing

Install in reverse order of removal. Note the following:

- A second technician must push the seat downward over the seat backrest when installing the seat height adjuster into the backward adjustment.

Audi Q5. N72-10324

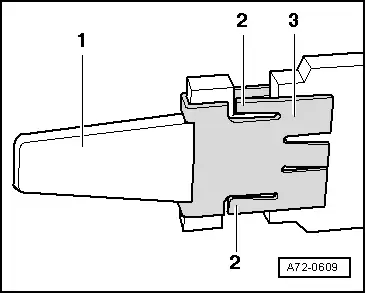

- Note the installation position of the clip.

  • Spring latch -2- of retaining clip -3- must be on the outside of lever -1-.

Audi Q5. A72-0609

Seat Angle Adjuster, Removing and Installing

Seat Angle Adjustment Handle, Removing and Installing

  Note

The backrest cover can be removed and installed with the seat still installed.

Removing

- Remove the seat side sill panel trim. Refer to → Chapter "Sill Side Trim, Removing and Installing, Standard/Sport Manual Seats".

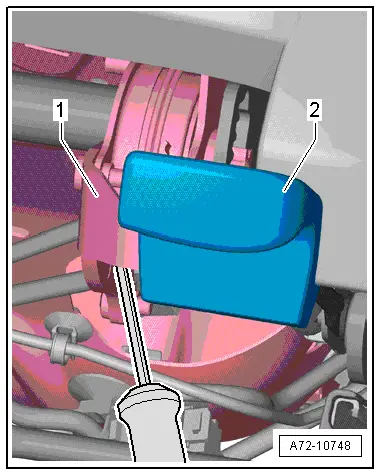

- Pry the handle -2- off the seat angle adjustment -1- by using a screwdriver to press down the clip locking spring.

Audi Q5. A72-10748

Installing

Install in reverse order of removal. Note the following:

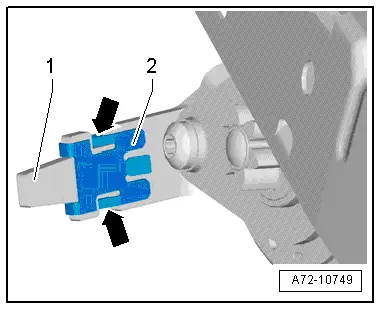

- Replace the clip on the seat height adjustment handle. Note the installation position.

- Make sure the seat height adjustment handle engages correctly with the clips.

  • The springs -arrows- (quantity: 2) on the clip -2- must be on the inner side of the lever -1-.

Audi Q5. A72-10749

Seat Angle Adjuster, Removing and Installing

Removing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Turn on the ignition.

- Disconnect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

- Remove the front seat. Refer to → Chapter "Front Seat, Removing and Installing".

- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture -VAS6136-. Refer to → Chapter "Front Seat, Mounting on Fixture for Seat Repair".

- Remove the seat side sill panel trim. Refer to → Chapter "Sill Side Trim, Removing and Installing, Standard/Sport Manual Seats".

- Remove the seat angle adjustment handle. Refer to → Chapter "Seat Angle Adjustment Handle, Removing and Installing".

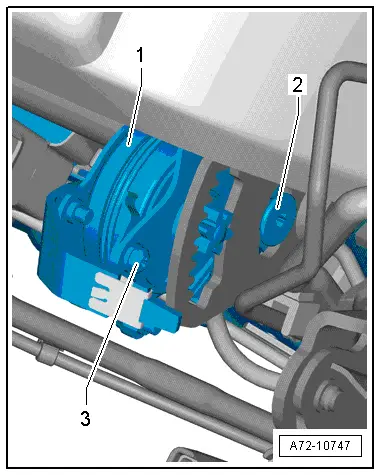

- Remove the shoulder pin -2-.

- Remove the bolt -3-.

- Remove the seat angle adjuster -1-.

Installing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

Install in reverse order of removal. Note the following:

- Replace the shoulder pin -2- and the bolt -3-.

- Clean the threaded holes before installing, for example using a thread tap.

Audi Q5. A72-10747

  Note

Make sure the connectors are installed correctly and are secure.

  WARNING

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

  DANGER!

When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.

Perform the following before switching on the ignition:

  • Move the selector lever into P.
  • Activate the parking brake
  • Turn off the ignition.
  • Open the hood
  • Connect Battery Charger -VAS5095A- to the battery jump start terminal.
  • Turn on the ignition.

- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

  Note

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again → Vehicle diagnostic tester.

Seat Angle Adjustment Motor, Removing and Installing

Removing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Raise the front seat all the way up.

- Remove the front seat. Refer to → Chapter "Front Seat, Removing and Installing".

- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture -VAS6136-. Refer to → Chapter "Front Seat, Mounting on Fixture for Seat Repair".

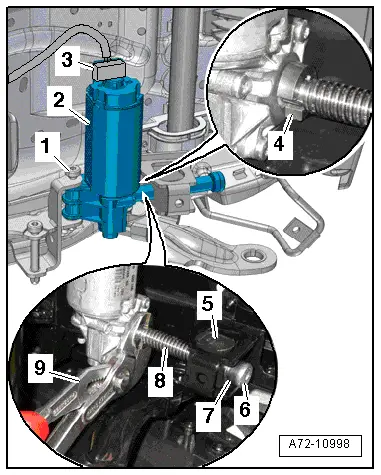

- Disconnect the connector -3- on the seat angle adjustment motor.

- Remove the ring -4- on the spindle with a screwdriver.

- Hold the spindle -8- with pliers -9- on the marked location to keep it from turning and remove the screw -6-.

- Remove the screw -1- and remove the seat angle adjustment motor -2- from the bracket.

- Separate the upper and lower seat frame, move the seat angle adjustment motor and spindle forward and remove the spindle nut -5-.

Audi Q5. A72-10998

Installing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Rotate the spindle -8- from the drive -5- as far as possible into the spindle nut.

- Install the screw -6- into the spindle my hand.

Audi Q5. A72-10998

  Note

It is only possible to tighten the screw -6- to the torque specification, when the seat is inside the vehicle and connected to the vehicle electrical system.

Install in reverse order of removal. Note the following:

  Note

Make sure the connectors are installed correctly and are secure.

  WARNING

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

  DANGER!

When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.

Perform the following before switching on the ignition:

  • Move the selector lever into P.
  • Activate the parking brake
  • Turn off the ignition.
  • Open the hood
  • Connect Battery Charger -VAS5095A- to the battery jump start terminal.
  • Turn on the ignition.

- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

  • Seat installed in the vehicle and connected to the vehicle electrical system.

- Move the seat downward via the angle adjustment and at the same time tighten the screw -6-.

  Note

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again → Vehicle diagnostic tester.

Seat Angle Adjustment Motor, Removing

  Note

Before removing the seat angle adjustment motor, check the electric and electronic components as well as the wiring to prevent any unnecessary repair costs. Refer to → Wiring diagrams, Troubleshooting & Component locations.

Remove if the seat angle adjustment motor is faulty

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Remove the front seat. Refer to → Chapter "Front Seat, Removing and Installing".

- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture -VAS6136-. Refer to → Chapter "Front Seat, Mounting on Fixture for Seat Repair".

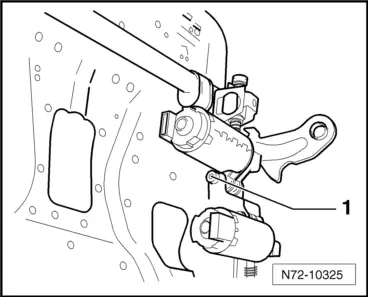

- Disconnect the connector on the seat angle adjustment motor.

- Remove the screw -1- and remove the seat angle adjustment motor.

Audi Q5. N72-10325

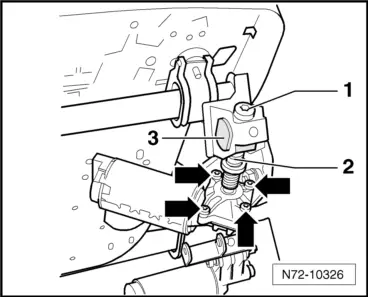

- Hold the spindle -2- with pliers and remove the screw -1-.

- Remove the four screws -arrows- and remove the seat angle adjustment motor.

- Remove the spindle from the spindle nut -3-.

Installing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Install the seat angle adjustment motor.

Audi Q5. N72-10326
