Audi Q5: Overview - Sound System

The following systems are offered.

Radio (CAN) Sound System Basic

  • One speaker in the left and right front doors
  • One loud speaker on the left and right side of the instrument panel

Radio (CAN) Sound System Basic

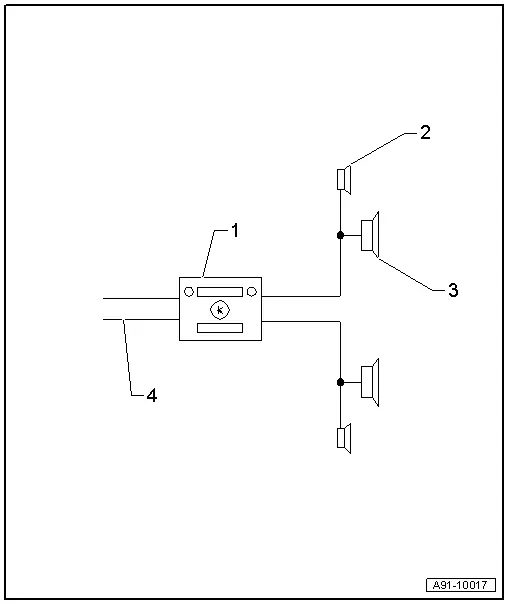

Audi Q5. Radio (CAN) Sound System Basic

1 - Radio -R- in the instrument panel

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the instrument panel

3 - Left Front Mid-Bass Speaker -R101-/Right Front Mid-Bass Speaker -R102- at bottom in front doors

4 - CAN Bus (Infotainment)

Radio (CAN) Sound System Basic Plus 8RX

  • One speaker in the left and right front doors
  • One loud speaker on the left and right side of the instrument panel
  • Two speakers in the left and right rear doors

MMI Basic sound system 8RX

  • One speaker in the left and right front doors
  • One loud speaker on the left and right side of the instrument panel
  • Two speakers in the left and right rear doors

Radio (CAN) Sound System Basic Plus/MMI Sound System Basic 8RX

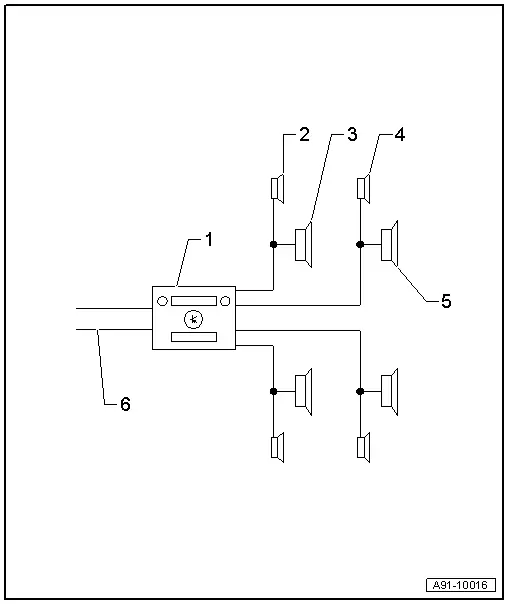

Audi Q5. Radio (CAN) Sound System Basic Plus/MMI Sound System Basic 8RX

1 - Radio -R- in the instrument panel/behind the left luggage compartment trim panel

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the instrument panel

3 - Left Front Mid-Bass Speaker -R101-/Right Front Mid-Bass Speaker -R102- at bottom in front doors

4 - Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- at top in rear doors

5 - Left Rear Mid/Low Range Speaker -R159-/Right Rear Mid/Low Range Speaker -R160- at bottom in rear doors

6 - CAN Bus (Infotainment)/MOST Bus

Radio (CAN) standard sound system 9VD

  • One speaker in the left and right front doors
  • One loud speaker on the left side, center and right side of the instrument panel
  • Two speakers in the left and right rear doors
  • Subwoofer in Rear Shelf -R157- (in the spare tire well)
  • Digital Sound System Control Module -J525-

Radio (CAN) standard sound system 9VD

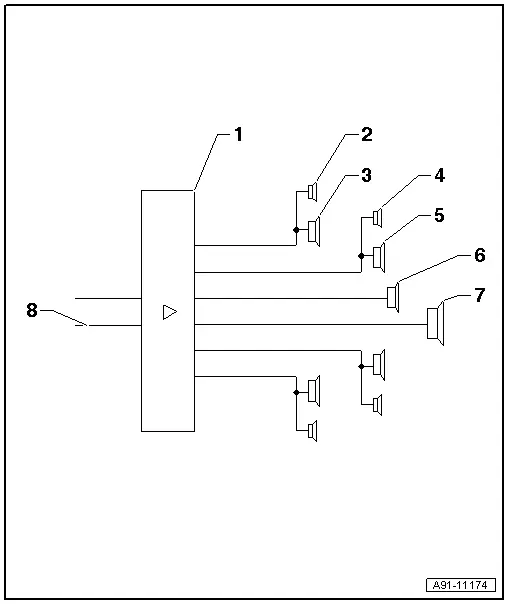

Audi Q5. Radio (CAN) standard sound system 9VD

1 - Digital Sound System Control Module -J525- behind the left luggage compartment trim panel

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the instrument panel

3 - Left Front Mid-Bass Speaker -R101-/Right Front Mid-Bass Speaker -R102- at bottom in front doors

4 - Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- at top in rear doors

5 - Left Rear Mid/Low Range Speaker -R159-/Right Rear Mid/Low Range Speaker -R160- at bottom in rear doors

6 - Center Mid/High Range Speaker -R158- in center instrument panel

7 - Subwoofer in Rear Shelf -R157- (in the spare tire well)

8 - CAN Bus (Infotainment)

MMI Standard Sound System 9VD

  • One speaker in the left and right front doors
  • One loud speaker on the left side, center and right side of the instrument panel
  • Two speakers in the left and right rear doors
  • Subwoofer in Rear Shelf -R157- (in the spare tire well)

MMI Standard Sound System 9VD

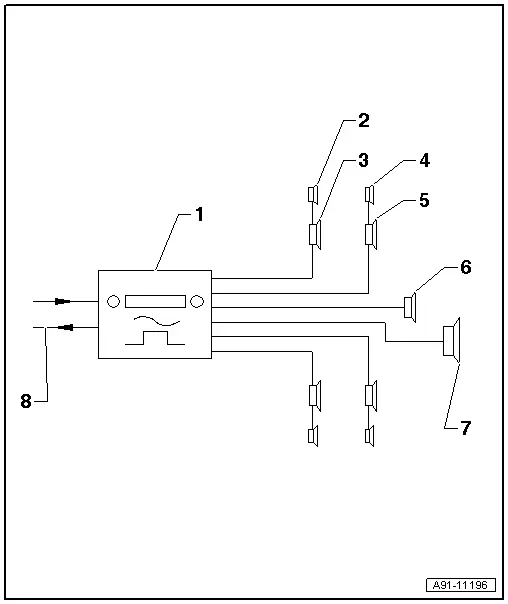

Audi Q5. MMI Standard Sound System 9VD

1 - Radio -R- behind the left luggage compartment trim panel

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the instrument panel

3 - Left Front Mid-Bass Speaker -R101-/Right Front Mid-Bass Speaker -R102- at bottom in front doors

4 - Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- at top in rear doors

5 - Left Rear Mid/Low Range Speaker -R159-/Right Rear Mid/Low Range Speaker -R160- at bottom in rear doors

6 - Center Mid/High Range Speaker -R158- in center instrument panel

7 - Subwoofer in Rear Shelf -R157- (in the spare tire well)

8 - MOST Bus

Premium Sound System, Bang & Olufsen, 9VK

  • One speaker in the left and right front doors
  • Per one loud speaker in the left and right triangular mirror
  • One loud speaker on the left side, center and right side of the instrument panel
  • Two speakers in the left and right rear doors
  • One speaker in the left and right D-pillars
  • Subwoofer in Rear Shelf -R157- (in the spare tire well)
  • Digital Sound System Control Module -J525-

Premium Sound System, Bang & Olufsen, 9VK

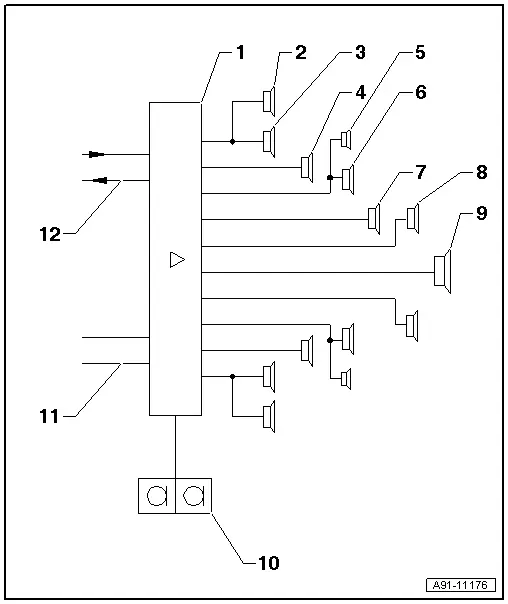

Audi Q5. Premium Sound System, Bang & Olufsen, 9VK

1 - Digital Sound System Control Module -J525- behind the left luggage compartment trim panel

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the mirror triangle

3 - Left Front Midrange Speaker -R103-/Right Front Midrange Speaker -R104- in the instrument panel

4 - Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23- at bottom in front doors

5 - Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- at top in rear doors

6 - Left Rear Mid/Low Range Speaker -R159-/Right Rear Mid/Low Range Speaker -R160- at bottom in rear doors

7 - Center Mid/High Range Speaker -R158- in center instrument panel

8 - Left Rear Midrange Speaker -R105-/Right Rear Midrange Speaker -R106- in the D-pillar trim panel

9 - Subwoofer in Rear Shelf -R157- (in the spare tire well)

10 - Microphone Unit In Front Roof Module -R164- (Interior Microphone -R74-) in the Front Interior Lamp -W1-

11 - CAN Bus (Infotainment)

12 - MOST Bus

Notes on MOST Bus

The optical Data bus "MOST Bus" is used in addition to the CAN Bus.

The connection to the other Data Bus systems in the vehicle are provided by the Data Bus On Board Diagnostic Interface -J533-.

A fiber-optic cable is used as a "connecting cable". Fiber optic cables are routed inside corrugated tubes for protection.

Replace complete fiber optic cable if possible.

The front surface of the connectors must not be dirty.

If disconnecting the connectors: Attach Fiber-Optic Repair Set - Connector Protective Caps -VAS6223/9-.

When installing fiber optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink fiber optic cables.

Repairing fiber optic cables. Refer to → Electrical Equipment; Rep. Gr.97; Fiber-Optic Cable.
