Audi Q5: Overview - Navigation System

The navigation system is available as an MMI option.

The navigation system is part of the Information Electronics Control Module 1 -J794- inside the instrument panel.

Operation is performed via the Multimedia System Control Head -E380-.

Navigation data is stored on an internal hard drive disc (HDD) on the MMI with maximum features.

Overview - Navigation System, Minimal Equipment

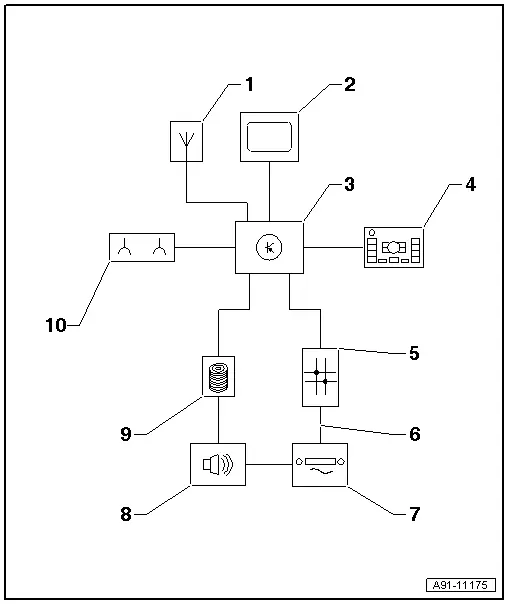

Audi Q5. Overview - Navigation System, Minimal Equipment

1 - Roof Antenna -R216-

2 - Front Information Display Control Head -J685- in center of the instrument panel

3 - Information Electronics Control Module 1 -J794- inside the instrument panel

4 - Multimedia System Control Head -E380- in the center console

5 - Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side

6 - MOST Bus

7 - Radio -R- behind the left luggage compartment trim panel

8 - Digital Sound System Control Module -J525- behind the left luggage compartment trim panel

9 - CD Changer -R41-/External Audio Source Connection -R199- (interface) in the glove compartment

10 - External Audio Source Connection -R199- (AUX IN jack) in the center console storage compartment

Overview - Navigation System, Maximum Equipment

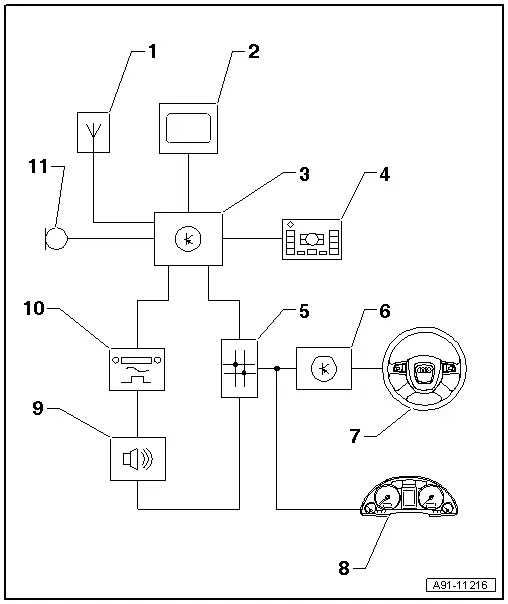

Audi Q5. Overview - Navigation System, Maximum Equipment

1 - Roof Antenna -R216-

2 - Front Information Display Control Head -J685- in center of the instrument panel

3 - Information Electronics Control Module 1 -J794- inside the instrument panel

4 - Multimedia System Control Head -E380- in the center console

5 - Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side

6 - Steering Column Electronics Control Module -J527- on steering column at steering column switch

7 - Multifunction Steering Wheel

8 - Instrument Cluster Control Module -J285- in the instrument panel

9 - Digital Sound System Control Module -J525- behind the left luggage compartment trim panel

10 - Radio -R- behind the left luggage compartment trim panel

11 - Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-) in the Front Interior Lamp -W1-

Perform the Fault Finding with the Vehicle Diagnostic Tester.

Antenna wires, repairing. Refer to → Electrical Equipment; Rep. Gr.97; Antenna Wires, Repairing.

Component Location Overview - Navigation System

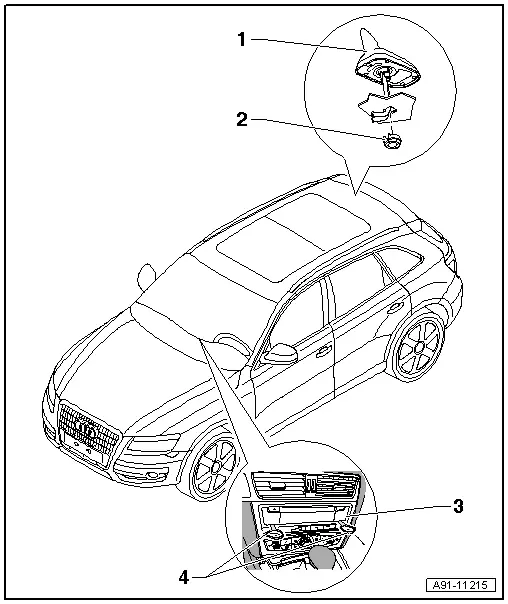

Audi Q5. Component Location Overview - Navigation System

1 - Roof Antenna -R216-

  • Antenna systems. Refer to → Chapter "Antenna Systems".

2 - Nut

  • 6 Nm

3 - Information Electronics Control Module 1 -J794-

  • Connector assignment. Refer to → Chapter "Navigation Connector Assignment".
  • Removing and installing. Refer to → Chapter "Information Electronics Control Module 1 -J794-, Removing and Installing".

4 - Radio Removal Tool -T10057-
