Audi Q5: Rear Window

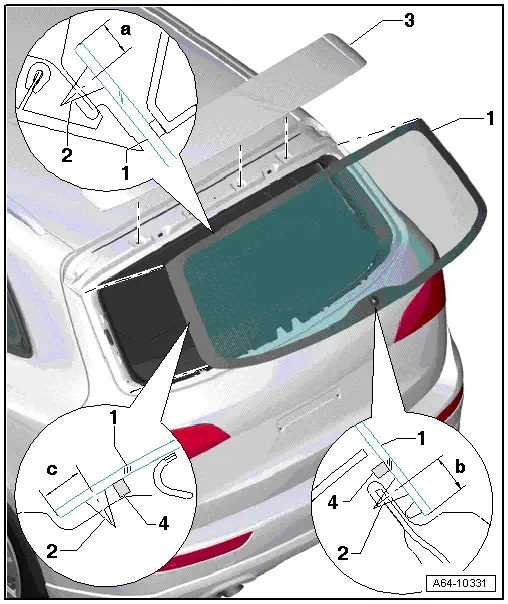

Overview - Rear Window

Audi Q5. Overview - Rear Window

1 - Rear Window

2 - Adhesive Bead

  Note

Note varying spacing dimensions to window edge.

  • Dimension -a- = 11 mm.
  • Dimension -b- = 12.5 mm.
  • Dimension -c- = 15.5 mm.

3 - Roof Spoiler

  • Removing and Installing. Refer to → Chapter "Overview - Spoiler".

4 - Adhesive Stop Profile

  • Must be adhered before window adhesive, near rear window heater distributing wire.
  • Place inner edge of adhesive stop profile to outer edge of distributing wire for rear window heater and press on.
  • Window adhesive must not come into contact with rear window defroster distributing wire.

Rear Window, Removing and Installing

Removing an Undamaged Window

- The rear lid trim panel is removed. Refer to → Body Interior; Rep. Gr.70; Luggage Compartment Trim Panels; Component Location Overview - Luggage Compartment Trim Panels.

- The roof spoiler is removed. Refer to → Chapter "Overview - Spoiler".

- The rear window wiper is removed. Refer to → Electrical Equipment; Rep. Gr.92; Rear Window Wiper System; Wiper Arm, Removing and Installing

- Disconnect rear window defroster and window antenna connectors and secure to center of window with adhesive tape.

  WARNING

When removing a window, always wear protective eyewear and leather gloves.

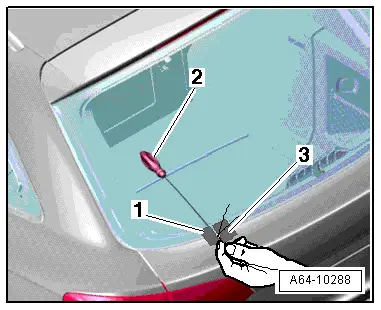

- Unroll with the Cutting Tool for Bonded Windows - Wire Reel -VAS6452/1- approximately 6.5 meters of cutting wire (approximately six turns) and cut it.

- Cover the awl outlet under the body flange with tape -1- to prevent damaging it.

- Feed both cutting wire ends -3- into the awl -2- and pull it in.

Audi Q5. A64-10288

- Place the cutting wire all the way around under the windshield as illustrated.

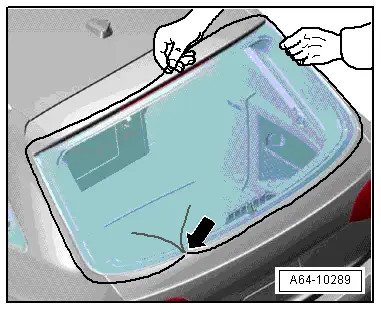

- Route cutting wire around rear window under the glass as shown in the illustration.

  Caution

The ends of the wire must not be twisted when cutting through the adhesive -arrow-.

Audi Q5. A64-10289

- Mount both spools on the inside of the windshield as illustrated.

Audi Q5. A64-10290

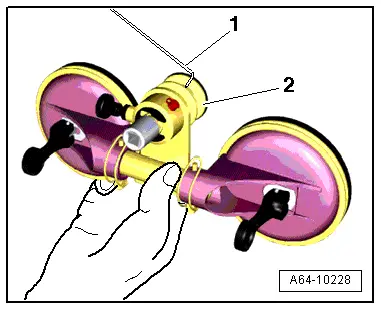

- Insert the ends of the cutting wire-1- into the spool -2-

Audi Q5. A64-10228

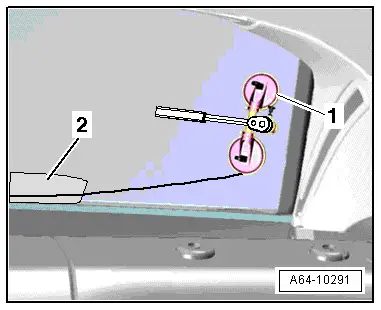

- Tension the cutting wire using the spool -1- and insert the plastic film -2- taken from the Cutting Tool for Bonded Windows -VAS6452- to protect the wire and the window glass.

Audi Q5. A64-10291

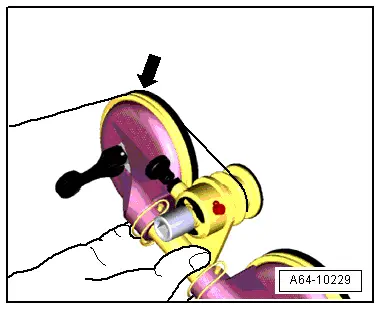

- Cut the first section open, while doing this, the wire is guided into the integrated roller -arrow- on the spool.

Audi Q5. A64-10229

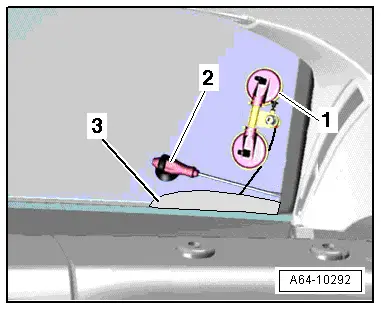

- Insert an additional guide awl -2- into the adhesive and secure it to the windshield with the suction cup as illustrated to make sure that the wire runs as close to the windshield as possible.

Audi Q5. A64-10292

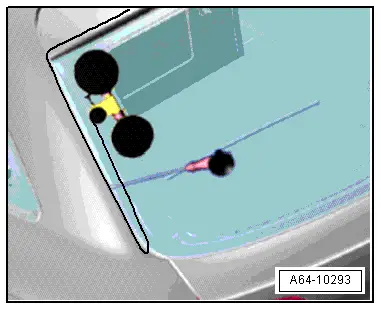

- Move the spool and the guide awl as illustrated and cut free the section along the "D-pillar".

Audi Q5. A64-10293

- Cut free the windshield further up to about the center.

Audi Q5. A64-10294

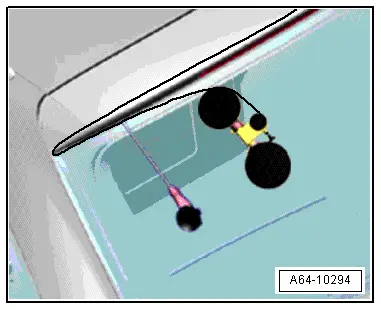

- Cut free the bottom of the windshield with the second spool.

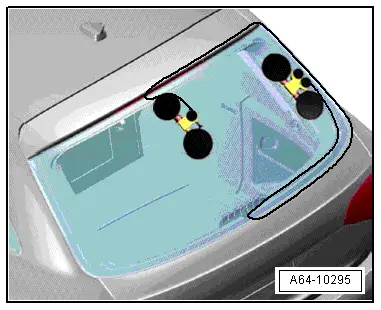

Audi Q5. A64-10295

- Move the spool upward and insert the guide awl as illustrated.

Audi Q5. A64-10296

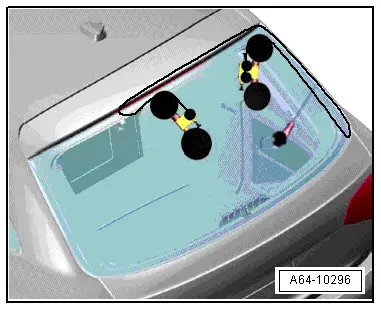

- Cut the window free moving upward along the "D-pillar".

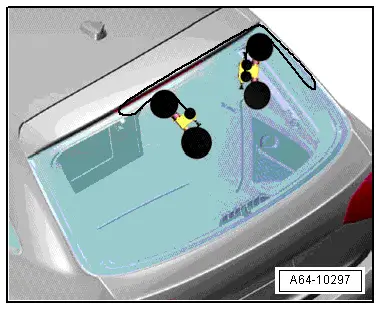

Audi Q5. A64-10297

- Move the spool over the center of the windshield as well as over the first spool as illustrated and cut free the rest of the windshield along the top.

- Remove the window with suction cups.

Damaged Rear Window, Removing

  WARNING

When removing a window, always wear protective eyewear and leather gloves.

- Protect body and interior from glass splinters.

- Remove glass pieces from adhesive material.

- Disconnect rear window defroster and window antenna connectors.

- Bond flange all around with fabric reinforced adhesive tape.

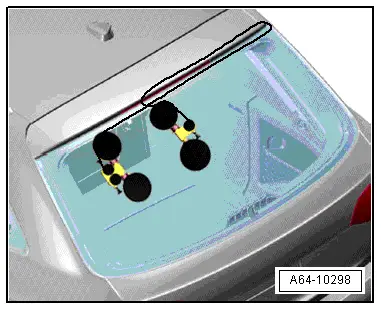

- Cut through the adhesive sealing material (with glass residue) in the from window opening using Window Cutter - VAG1561A- and Cutting Blade, Bent at Right Angle - VAG1561/10-.

Audi Q5. A64-10298

Preparations for the installing the rear window

  Note

  • When reusing the undamaged window, cut the rest of the adhesive material on the window and flange with the Window Cutter -VAG1561 A- and Window Cutter - Scraper (2 pc.) -VAG1561/8- so it is even, but do not remove it completely.
  • Residual material acts as a base for the new adhesive sealing material.

  Caution

  • Keep the adhesive surface free of dirt and grease.
  • Cut back the adhesive surface shortly before installing.
  • Do not prime or use a cleaning solution on the adhesive surface.

With New Window:

- Clean all around the adhesive surface with Cleaning Solution -D 009 401 04-.

  Caution

  • Ceramic application on window is not primer.
  • It must be primed before the application of adhesive sealing material!

- Apply the Glass-/Paint Primer -D 009 200 02- as described.

Applying Primer:

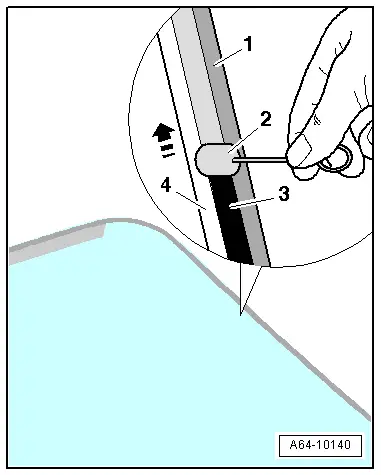

- Apply the glass/paint primer -3- to the adhesive surface on the glass -4- evenly in one stroke using the applicator -2-.

- Beginning applying with saturated felt.

  • Curing time 10 minutes

  Caution

Glass/paint primer conducts electricity and must not touch rear window defroster distributing wire.

Window Flange:

- If the window glass flange was damaged, the paint must be repaired and corrosion protection must be applied, if necessary. Refer to the Audi Paint Guide.

- Clean the repaired area with Cleaning Solution -D 009 401 04- and then apply Glass/Paint Primer -D 009 200 02-.

Installing

  Note

Cross-section thickness of adhesive bead is determined by dimension of opening in nozzle tip and rate of application.

Audi Q5. A64-10140

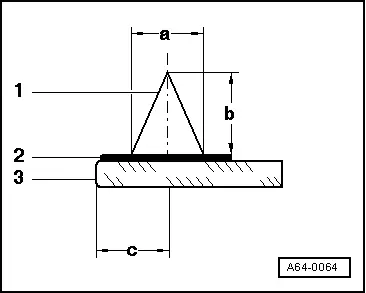

Dimensions for adhesive application:

1 - Adhesive Bead

2 - Glass/Paint Primer

3 - Washer

  • Dimension -a- = 8 mm +- 2 mm
  • Dimension -b- = 12 mm +- 2 mm
  • Dimension -c- = note the different spacing dimensions to the window edge. Refer to -item 2- .

Audi Q5. A64-0064

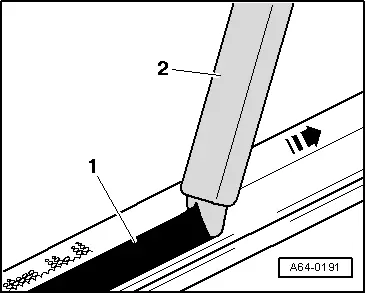

- Position the entire nozzle surface -2- on the window.

  • Application direction -arrow- for adhesive bead -1-.

Audi Q5. A64-0191

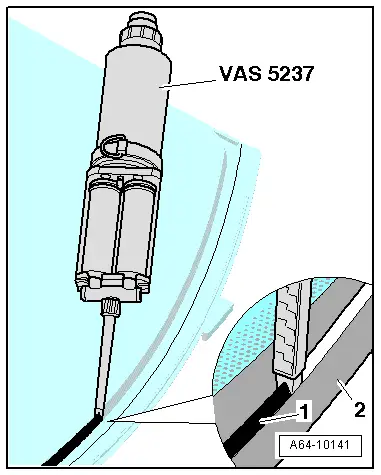

- Apply adhesive sealing material all around.

- With an undamaged removed window, apply adhesive to remaining bead.

- Insert the rear window into window cut-out using suction cups.

  Caution

The window must be installed within 15 minutes or the adhesive sealing material will not adhere properly.

- Center window along sides.

  • Distance from the window edge to the roof frame. Refer to -item 1-.
  • Secure the window to the top of the roof with adhesive tape.

- Observe minimum curing time. Refer to → Chapter "Minimum Curing Time for Bonded Windows".

Audi Q5. A64-10141
