Audi Q5: Headrest Cover and Cushion, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body  Interior / Seat Upholstery, Covers / Headrest Cover and Cushion, Removing and Installing

  Caution

  • It is only possible to replace the cover on the headrest with a leather cover. It is not possible to replace a fabric headrest cover because the cover is filled with foam and also serves as the casing for the upholstery.
  • The headrest support is built into the upholstery. Both components are attached to each other and cannot be separated.

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-

Removing

- Remove the front headrests. Refer to → Chapter "Headrest, Removing and Installing".

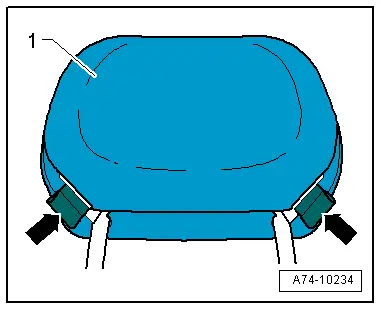

- Open the side locks -arrows- on the cover -1-.

Audi Q5. A74-10234

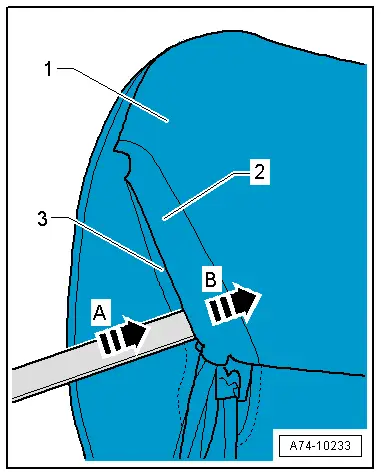

- Insert the Trim Removal Wedge -3409- in direction of -arrow A- between the cover zipper -1-.

- Bend the lower U-channel -3- in the direction of -arrow B-.

- Pull the upper side of the cover with the flat channel -2- out of the U-channel.

Audi Q5. A74-10233

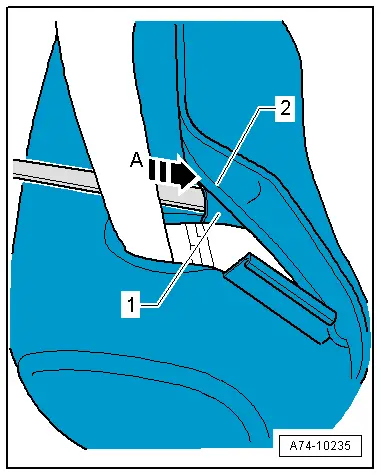

- Open the zipper by inserting the Trim Removal Wedge -3409- between the zipper and the cover.

- Bend the lower U-channel -1- in the direction of -arrow A-.

- Pull the upper side of the cover with the flat channel -2- out of the U-channel.

  Note

The cover must be completely open to remove the upholstery.

Audi Q5. A74-10235

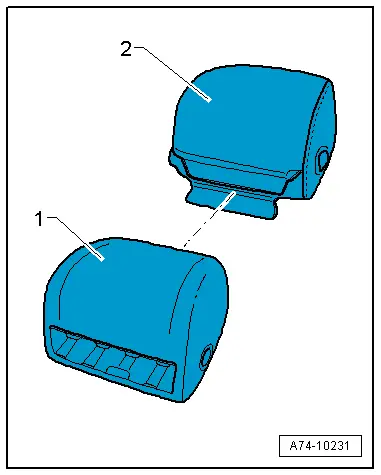

- Remove cushion -1- from cover -2-.

Audi Q5. A74-10231

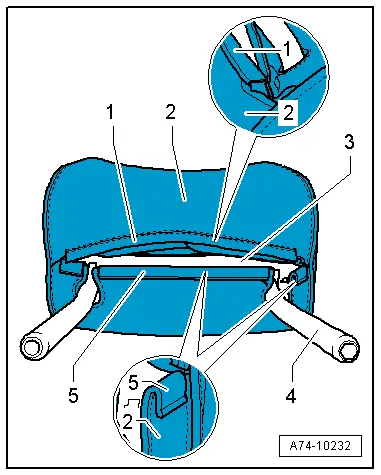

Installing

- Insert the cushion -1- into the cover -2-.

- Insert headrest mount in upholstery with cover.

- Close the main zipper by moving the upper cover flat channel -1- over the cover -2-.

- Slide the edge of the fabric edge with the flat channel into the U-channel -5-.

- Closing the side locks is similar to the closing the main lock.

- After closing the main zipper and the side zippers with a needle or other pointed object, line up the cover and the profiles.

- Ensure the cover sits on the upholstery -3- without any wrinkles and without seam markings.

Install in reverse order of removal.

Audi Q5. A74-10232

Driver/Front Passenger Seat Heating Element -Z6-/-Z8- , Removing and Installing

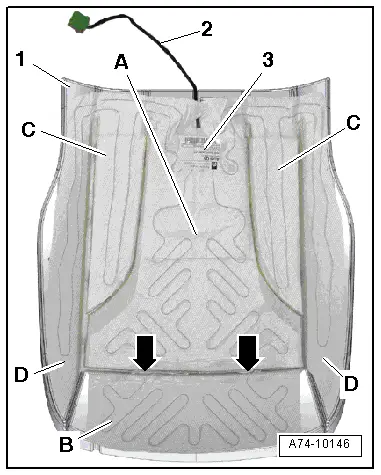

Driver/Front Passenger Seat Heating Element -Z6-/-Z8-, Removing and Installing, Standard Seat, Sport Seat, Folding Seat

Removing

- Separate the cover from the upholstery:

  • Standard/Comfort seat. Refer to → Chapter "Lower Seat Frame Cover and Cushion, Separating, Standard, Comfort, Folding Seat".
  • Sport seat. Refer to → Chapter "Lower Seat Frame Cover and Cushion, Separating, Sport Seat".

- Cut the electrical wire -3- off directly at the old backrest heating element -2-.

  Note

  • The old seat heating element remains on the upholstery -1- and the new seat heating element is bonded over it.
  • Ignore -A through D- and -arrows-.

Audi Q5. A74-10146

Installing

- Align new heating element on backrest cushion.

  Caution

  • Make sure the new heating element is affixed to the old heating element.
  • Remove the protective foil off the heating element in the affixing sequence.
  • When removing the protective film, make sure the heating element is not damaged and that it is attached without wrinkles.

- Bond the individual areas of the heating element in the sequence -A, B, C and D-.

- Route the connecting wires to the individual heating surfaces in the base of the gaps -arrows-.

- Pull electrical wire -2- through the slit in cushion -1-.

Install in reverse order of removal.

Audi Q5. A74-10146

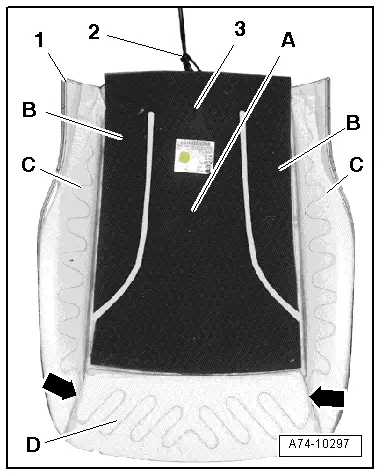

Seat Heating Element -Z6-/-Z8- , Removing and Installing, Comfort Seat

Removing

- Disconnect cover from upholstery. Refer to → Chapter "Lower Seat Frame Cover and Cushion, Separating, Standard, Comfort, Folding Seat".

- Cut the electrical wire -3- off directly at the old backrest heating element -2-.

- Loosen the heating surfaces -A- and -B- from the adhesive and remove.

  Note

  • The spacer fabric must not be damaged.
  • The old heating surfaces -C and D- remain on the cushion -1- and will be covered over by the new heating element.

Installing

- Align new heating element on backrest cushion.

  Caution

  • Make sure the new heating element is affixed to the old heating element.
  • Remove the protective foil off the heating element in the affixing sequence.
  • When removing the protective film, make sure the heating element is not damaged and that it is attached without wrinkles.

- Bond the individual areas of the heating element in the sequence -A, B, C and D-.

- Route the connecting wires to the individual heating surfaces in the base of the gaps -arrows-.

- Pull electrical wire -2- through the slit in cushion -1-.

Install in reverse order of removal.

Audi Q5. A74-10297

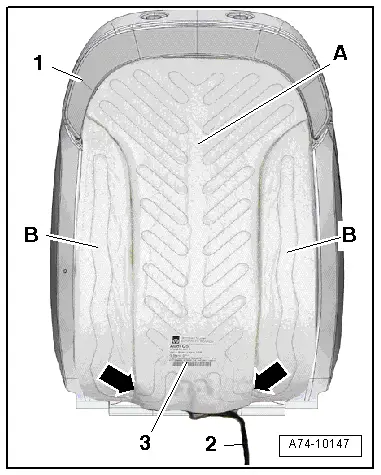

Driver/Front Passenger Backrest Heating Element -Z7-/-Z9-, Removing and Installing

Driver/Front Passenger Backrest Heating Element -Z7-/- Z9-, Removing and Installing, Standard Seat, Sport Seat Folding Seat

Removing

- Disconnect cover from upholstery. Refer to → Chapter "Backrest Cover and Cushion, Separating".

- Cut the electrical wire -3- off directly at the old backrest heating element -2-.

  Note

  • The old seat heating element remains on the upholstery -1- and the new seat heating element is bonded over it.
  • Ignore -A through D- and -arrows-.

Installing

- Align new heating element on backrest cushion.

  Caution

  • Make sure the new heating element is affixed to the old heating element.
  • Remove the protective foil off the heating element in the affixing sequence.
  • When removing the protective film, make sure the heating element is not damaged and that it is attached without wrinkles.

Audi Q5. A74-10147

- Bond the individual areas of the heating element in the sequence -A and B-.

- Route the connecting wires to the individual heating surfaces in the base of the gaps -arrows-.

- Pull electrical wire -2- through the slit in cushion -1-.

Install in reverse order of removal.

Audi Q5. A74-10147

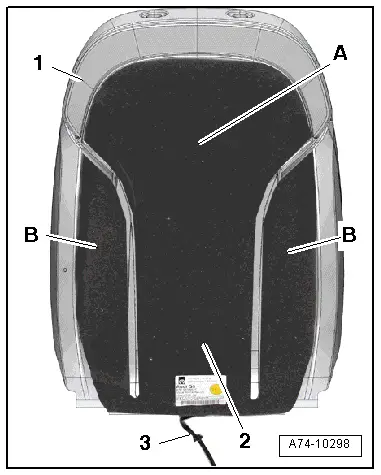

Backrest Heating Element -Z7-/-Z9-, Removing and Installing, Comfort Seat

Removing

- Disconnect cover from upholstery. Refer to → Chapter "Backrest Cover and Cushion, Separating".

- Cut the wire -3- off directly at the old heating element -2-.

- Loosen the heating surfaces -A- and -B- from the adhesive and remove.

  Note

The spacer fabric must not be damaged.

Installing

- Align new heating element on backrest cushion.

  Caution

  • Make sure the new heating elements are bonded so they line up with the old ones.
  • Remove the protective foil off the heating element in the affixing sequence.
  • When removing the protective film, make sure the heating element is not damaged and that it is attached without wrinkles.

- Bond the individual areas of the heating element in the sequence -A and B-.

- Pull electrical wire -3- through the slit in cushion -1-.

Install in reverse order of removal.

Audi Q5. A74-10298
