Audi Q5: Flange Shaft Protective Ring, Replacing

Flange Shaft Ring, Replacing, 0BC

  • The ring can only be replaced with the final drive and the flange shaft removed.

Special tools and workshop equipment required

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Multiple Use -VW412-
  • Press Piece - Lower Ball Joint - 3146-
  • -3-Separating Tool - 22-115mm, for example Puller - Kukko Quick Action Separating Tool - 22-115mm -Kukko 17/2-
  • The rear final drive is removed. Refer to → Chapter "Final Drive, Removing and Installing".
  • Flange shaft removed. Refer to → Chapter "Left Seal, Replacing, 0BC".

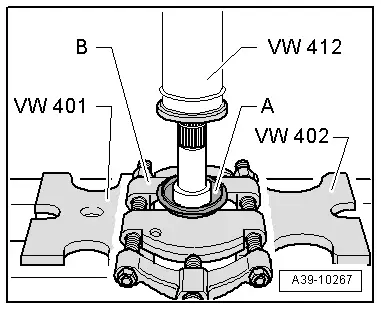

Removing the protective ring -A- from the flange shaft

B - Puller - Quick Action Separating Tool - 22-115mm, for example -Kukko 17/2-

Audi Q5. A39-10267

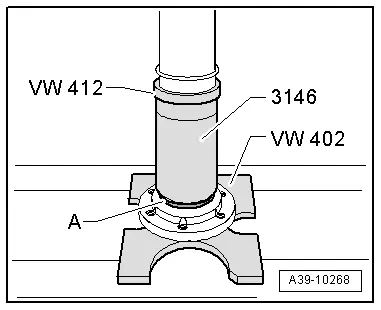

Installing the ring -A- on the flange shaft

  • Ring installed position -A-: the larger outer diameter faces the flange.

Audi Q5. A39-10268

Flange Shaft Ring, Replacing, 0BD

  • The ring can only be replaced with the final drive and the flange shaft removed.

Special tools and workshop equipment required

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Rod -VW407-
  • Circlip Sleeve -32 - 119-
  • Bearing Installer - Multiple Use -3062-
  • Separating Tool - 22-115mm, such as Puller - Kukko Quick Action Separating Tool - 22-115mm -17/2-
  • The rear final drive is removed. Refer to → Chapter "Final Drive, Removing and Installing".
  • Flange shaft removed. Refer to → Chapter "Left Seal, Replacing, 0BD".

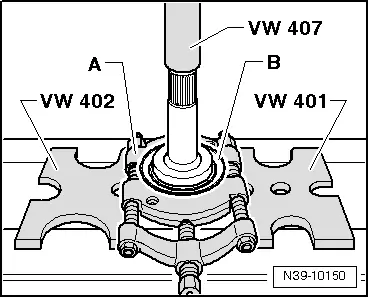

Remove the ring -B- from the flange shaft.

A - Separating Tool - 22-115mm, such as Puller - Kukko Quick Action Separating Tool - 22-115mm -Kukko 17/2-

Audi Q5. N39-10150

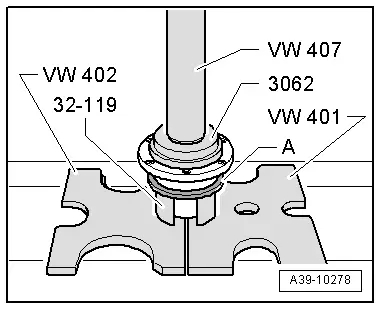

Installing the ring -A- on the flange shaft

  • Protective ring -A- installation position: the protective ring notch points to the Circlip Sleeve -32 - 119-.

Audi Q5. A39-10278

Flange Shaft Ring, Replacing, 0BE, 0BF

  • The ring can only be replaced with the final drive and the flange shaft removed.

Special tools and workshop equipment required

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Multiple Use -VW412-
  • Bearing Installer - Differential Bearing -40 - 21-
  • Seal Installer - Flywheel Oil Seal Kit - Press Sleeve -2003/1- from the Seal Installer - Flywheel Oil Seal Kit -2003-
  • Bearing Installer - Wheel Bearing -3345-
  • Separating Tool - 22-115mm, such as Puller - Kukko Quick Action Separating Tool - 22-115mm -17/2-
  • The rear final drive is removed. Refer to → Chapter "Final Drive, Removing and Installing".
  • Flange shaft removed. Refer to → Chapter "Left Seal, Replacing, 0BE, 0BF".

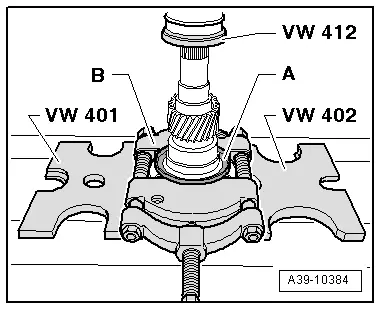

Removing the protective ring -A- from the flange shaft

B - Separating Tool - 22-115mm, such as Puller - Kukko Quick Action Separating Tool - 22-115mm -Kukko 17/2-

Audi Q5. A39-10384

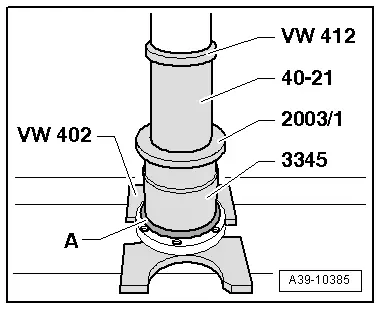

Carefully press the ring -A- onto the flange shaft.

  • Protective ring installation location -A-: The larger outer diameter on the protective ring faces the Bearing Installer - Wheel Bearing -3345-.

Audi Q5. A39-10385
