Audi Q5: Battery Charger -VAS5906-

  WARNING

Risk of injury. Follow all warning messages and safety precautions. Refer to → Chapter "Warnings and Safety Precautions".

  WARNING

Do not check or charge a Battery -A- when the visual indicator has "no color or is bright yellow". Jump starting must not be used!

There is a risk of explosion during testing, charging or jump starting.

These Batteries -A- must be replaced.

  Note

Observe the Battery Charger -VAS5906- Operating Instructions.

  • Battery Charger -VAS5906- device description. Refer to → Chapter "Battery Charger -VAS5906- Device Description".
  • Charge the Battery -A-. Refer to → Chapter "Battery, Charging with Battery Charger -VAS5906-".

Battery Charger -VAS5906- Device Description

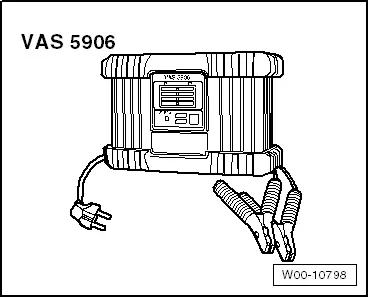

Battery Charger -VAS5906-

The Battery Charger -VAS5906- was developed especially for charging the vehicle electrical system while the vehicle is on display.

It supplies for automatic charging of 3 - 300 Ah for starter batteries.

The 14.4 V maximum charging voltage is not exceeded. All electrical consumers will be supported up to 30 A by the support charging.

After the battery -A- is completely charged, the Battery Charger -VAS5906- switches into the maintenance charging for long-term operation.

The Battery Charger -VAS5906- starts automatically and does not need any adjustments. Only the charging terminals and the network cable need to be connected.

For more information. Refer to the Battery Charger -VAS5906- Operating Instructions.

Audi Q5. W00-10798

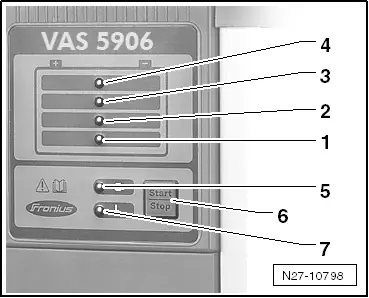

Control Field Overview

1 - 25% charge display

2 - 50% charge display

3 - 75% charge display

4 - 100% charge display

5 - Ready-to-use display

6 - Pushing the START/STOP and Setup buttons will stop and start the charging process. Enter into the setup menu and select characteristic line type (hold for 10 seconds)

7 - Display malfunction

Audi Q5. N27-10798
