Manually adjustable steering wheel

The height and reach of the steering wheel can be adjusted.

Driving

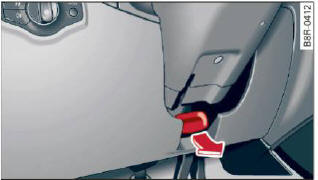

Fig. 98 Lever under the steering column

First, adjust the driver's seat correctly.

  • Pull the lever > fig. 98 -Arrow-.
  • Move the steering wheel to the desired position.
  • Push the lever against the steering column until it locks.

There must be at least 10 inches (25 cm) between your chest and the center of the steering wheel. If you cannot sit more than 10 inches (25 cm) from the steering wheel, see if adaptive equipment is available to help you reach the pedals and increase the distance from the steering wheel.

For detailed information on how to adjust the driver's seat.

WARNING

Improper use of steering wheel adjustment and improper seating position can cause serious personal injury.

  • Adjust the steering wheel column only when the vehicle is not moving to prevent loss of vehicle control.
  • Adjust the driver's seat or steering wheel so that there is a minimum of 10 inches (25 cm) between your chest and the steering wheel > fig. 151. If you cannot maintain this minimum distance, the airbag system cannot protect you properly.
  • If physical Limitations prevent you from sitting 10 inches (25 cm) or more from the steering wheel, check with your authorized Audi dealer to see if adaptive equipment is available.
  • If the steering wheel is aligned with your face, the supplemental driver's airbag cannot provide as much protection in an accident.

    Always make sure that the steering wheel is aligned with your chest.

  • Always hold the steering wheel with your hands at the 9 o'clock and 3 o'clock positions to reduce the risk of personal injury if the driver's airbag deploys.
  • Never hold the steering wheel at the 12 o'clock position or with your hands inside the steering wheel rim or on the steering wheel hub. Holding the steering wheel the wrong way can cause serious injuries to the hands, arms and head if the driver's airbag deploys.
