Audi Q5: Ribbed Belt Pulley without Freewheel, Removing and Installing

Special tools and workshop equipment required

  • Generator Belt Socket -3310-
  • Inner hex socket 8 mm or TORX T50

Removing

- Remove the generator if necessary. Refer to → Electrical Equipment; Rep. Gr.27; Generator; Generator, Removing and Installing.

- For some engine types the removal can be performed with the generator still installed, here only the ribbed belt must have the tension released and be removed.

- If present, press the protective cap off the generator pulley.

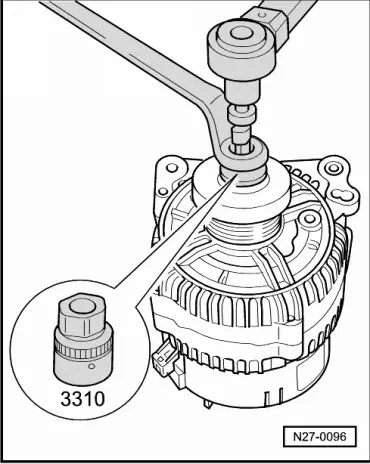

- Counterhold nut using Generator Belt Socket -3310- and rotate generator shaft clockwise to loosen it.

- Remove ribbed belt pulley.

Installing

Install in reverse order of removal. Note the following:

- Turn the generator shaft counterclockwise to tighten.

- Clip protective cap onto generator pulley.

Audi Q5. N27-0096

Tightening specification

Audi Q5. Tightening specification

Ribbed Belt Pulley with Freewheel, Removing and Installing

General Information

There are different ribbed belt pulley with freewheel.

Before removing check which special tool must be used for the removal of the ribbed belt pulley with freewheel.

  Caution

The length of the ribbed belt is different depending on the ribbed belt pulley with freewheel installed.

Check which ribbed belt pulley with freewheel is installed and make sure that the correct ribbed belt will be installed. For the ribbed belt allocation. Refer to the Parts Catalog .

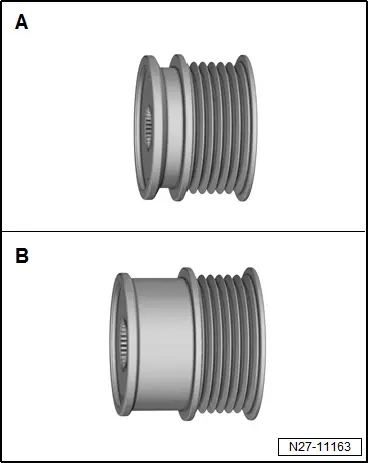

Characteristics of the Ribbed Belt Pulley with Freewheel

-A- small ribbed belt pulley with freewheel, special tool to be used Puller - Bevel Gear -T10474- or Multi-Tooth Adapter -3400-

-B- large ribbed belt pulley with freewheel, special tool to be used Multi-Tooth Adapter -3400-

Audi Q5. N27-11163

  Note

The ribbed belt for the large ribbed belt pulley with freewheel must be larger because it has a larger diameter.

Special tools and workshop equipment required

  • Puller - Bevel Gear -T10474-
  • Multi-Tooth Adapter -3400-
  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Inner Hex Socket 8 mm or TORX T50

Removing

- Remove the generator if necessary. Refer to → Electrical Equipment; Rep. Gr.27; Generator; Generator, Removing and Installing.

- For some engine types the removal can be performed with the generator still installed, here only the ribbed belt must have the tension released and be removed.

- Clamp the generator in a vise at the mounting points.

- If equipped, remove the protective cap from the decoupling belt pulley with freewheel.

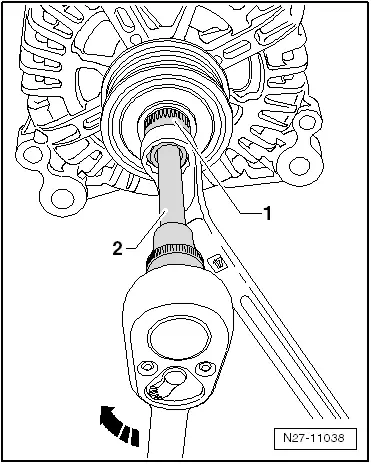

- Install the Multi-Tooth Adapter -T10474- or Multi-Tooth Adapter -3400--1- in the belt pulley and attach a wrench.

- Place a suitable tool -2- in the generator shaft.

- Turn the generator shaft clockwise in direction of -arrow- to loosen and while doing so counterhold with the wrench.

- Hold the ribbed belt pulley with freewheel in place by hand and turn it at the generator shaft until the ribbed belt pulley with freewheel can be removed.

Audi Q5. N27-11038

Installing

Install in reverse order of removal. Note the following:

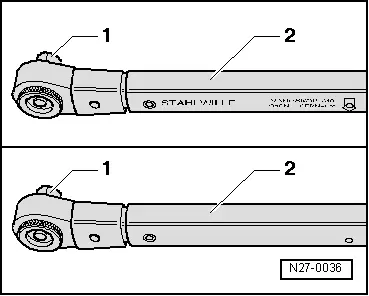

The Torque Wrench 1332 40-200Nm -VAG1332- must be rearranged for installing the decoupling belt pulley with freewheel as follows:

- Release the insert -1- and remove it from the handle part -2-.

- Turn the handle part -2- of the torque wrench 180º and reinsert the socket.

- Set the rotation direction of the torque wrench socket to "left".

- Next, screw the ribbed belt pulley with freewheel by hand onto the generator shaft until stop.

- Install the Multi-Tooth Adapter -T10474--1- ribbed belt pulley with freewheel and attach the wrench.

Audi Q5. N27-0036

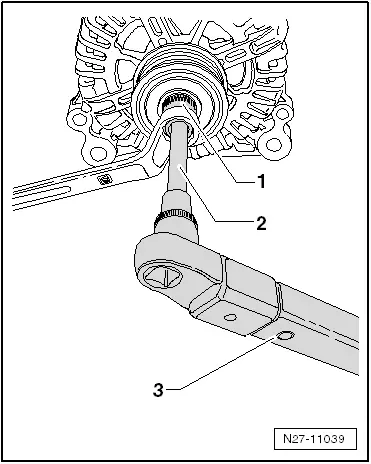

- Place a suitable tool -2- in the generator shaft.

- Turn the generator shaft using the Torque Wrench 1332 40-200Nm -VAG1332--3- counter clockwise to tighten the ribbed belt pulley with freewheel.

- Clip protective cap onto generator pulley.

Audi Q5. N27-11039

Tightening Specification

Audi Q5. Tightening specification

Ribbed Belt Pulley with Freewheel, Checking

Procedure

  • The ribbed belt pulley with freewheel is removed. Refer to → Chapter "Ribbed Belt Pulley with Freewheel, Removing and Installing".

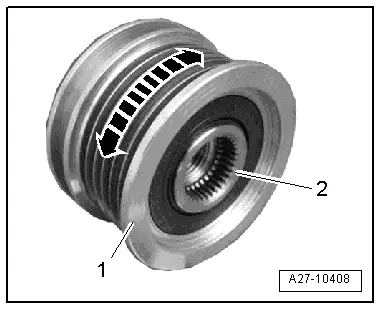

- Hold the inner ring -2- on the ribbed belt pulley with one hand using the thumb and index finger and the outer ring -1- with the other hand using the thumb and index finger.

- Hold the inner ring tight and turn the outer ring in the rotation direction of the generator.

  • If the free-running hub is intact, the outer does not turn.

- Hold the inner ring tight and turn the outer ring opposite the rotation direction of the generator.

  • If the free-running hub in intact, the outer ring turns with slight resistance.

Replace the ribbed belt pulley if the free-running hub does not function as described.

Audi Q5. A27-10408

Special Tools

Special tools and workshop equipment required

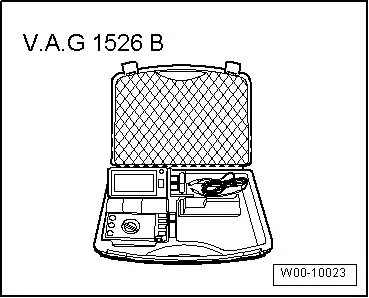

  • Analog/Digital Multimeter -FLU83III-

Audi Q5. W00-10023

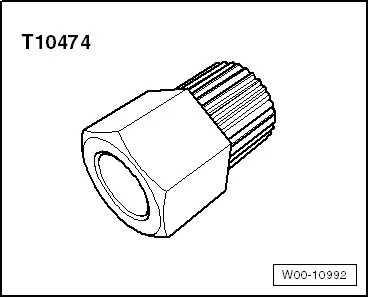

  • Puller - Bevel Gear -T10474-

Audi Q5. W00-10992

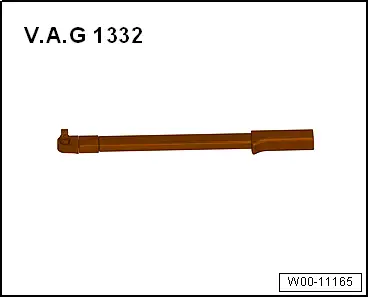

  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Inner Hex Socket 8 mm or TORX T50

Audi Q5. W00-11165

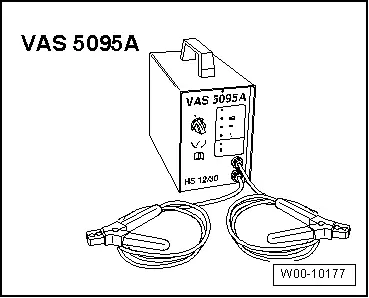

  • Battery Charger -VAS5095A-

Audi Q5. W00-10177

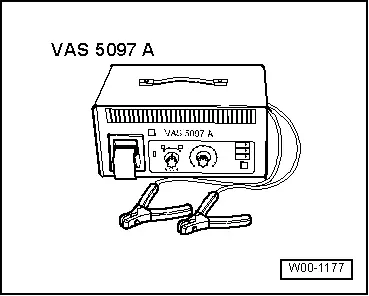

  • Battery Tester with Printer -VAS5097A-

Audi Q5. W00-1177

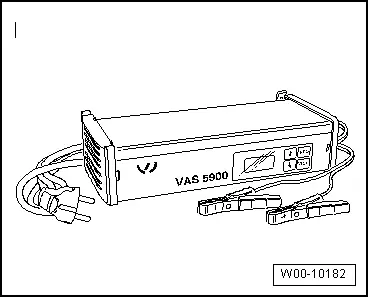

  • Battery Charger -VAS5900-

Audi Q5. W00-10182

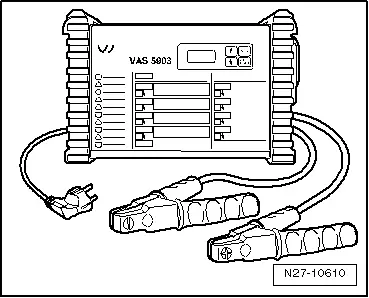

  • Battery Charger -VAS5903-

Audi Q5. N27-10610

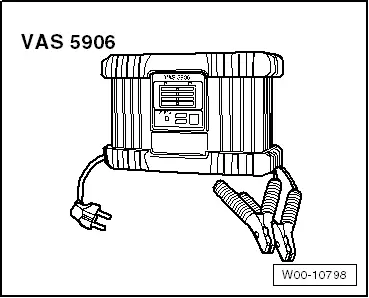

  • Battery Charger -VAS5906-

Audi Q5. W00-10798

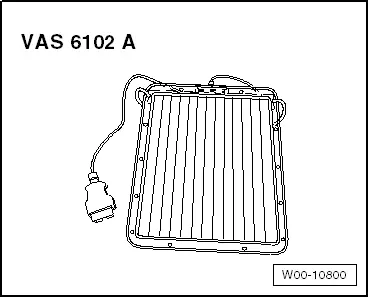

  • Solar Battery Maintainer -VAS6102A-

Audi Q5. W00-10800

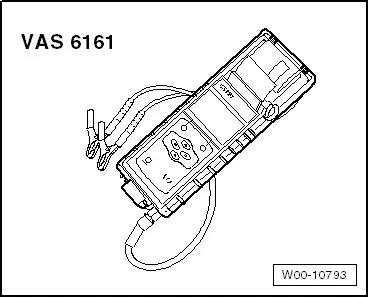

  • Battery Tester -VAS6161-

Audi Q5. W00-10793

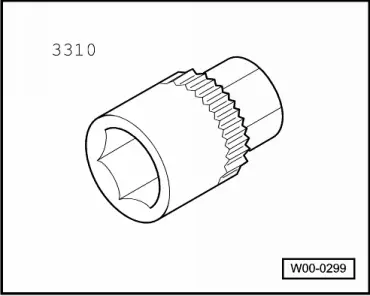

  • Generator Belt Socket -3310-

Audi Q5. W00-0299

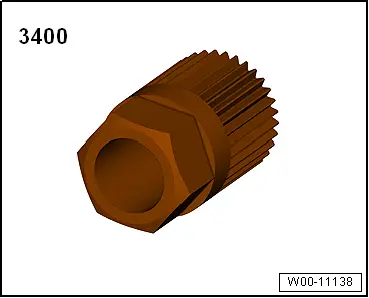

  • Multi-Tooth Adapter -3400-

Audi Q5. W00-11138
