Audi Q5: Rear Motor Support and Sun Shade Cable, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body Exterior / Sunroof / Rear Motor Support and Sun Shade Cable, Removing and Installing

Removing

- Remove the headliner. Refer to → Body Interior; Rep. Gr.70; Roof Trim Panels; Headliner, Removing and Installing.

- Remove the sunroof shade motor. Refer to → Chapter "Roof Shade Control Module - J394-, Removing and Installing".

- Remove the sunroof shade. Refer to → Chapter "Sunroof Shade, Removing and Installing".

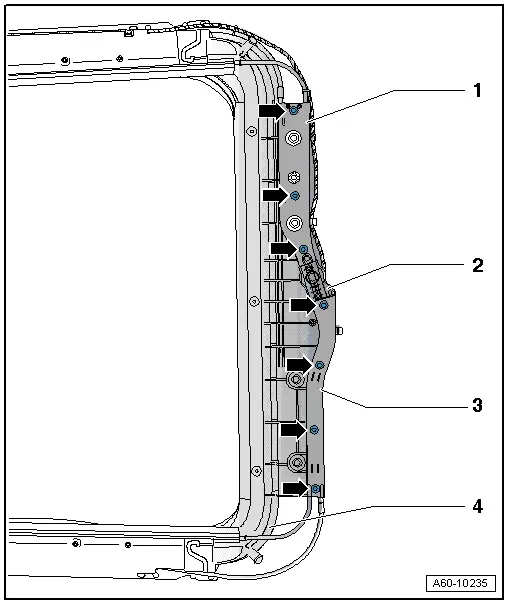

- Remove the screws -arrows- for the cable covers -1- and -3- (2 Nm).

Audi Q5. Rear Motor Support and Sun Shade Cable, Removing and Installing

- Remove the cable covers -1- and -3- from the frame -4-.

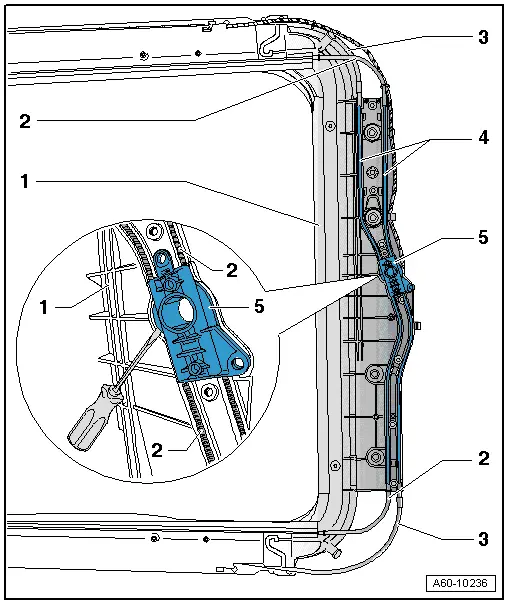

- Pull the cables for the sunroof shade out of the guide tubes -3- and motor support -5-.

- Pry the motor support -5- out of the frame -1- with a screwdriver.

Audi Q5. Rear Motor Support and Sun Shade Cable, Removing and Installing

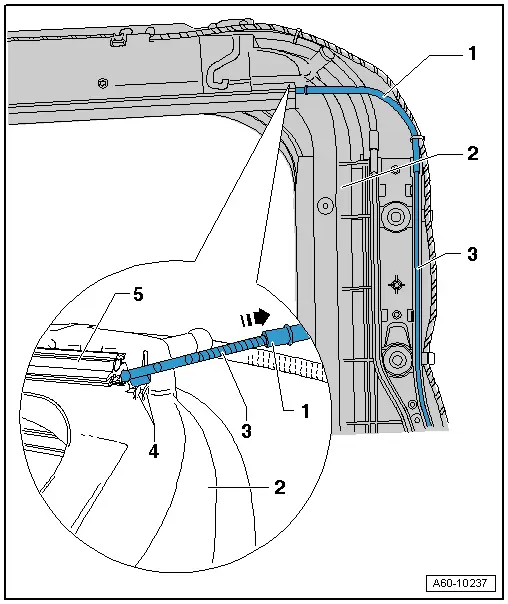

- Remove the guide tube -1- from the bracket -4- in the frame -2-.

Audi Q5. Rear Motor Support and Sun Shade Cable, Removing and Installing

- Remove the cable -3- from the sun shade rail -5-.

Installing

Install in reverse order of removal.

  Note

Do not lubricate the motor support and the cables for the sunroof shade.

- Install the sunroof shade. Refer to → Chapter "Sunroof Shade, Removing and Installing".

- Install the sunroof shade motor. Refer to → Chapter "Roof Shade Control Module - J394-, Removing and Installing".

- Install the headliner. Refer to → Body Interior; Rep. Gr.70; Roof Trim Panels; Headliner, Removing and Installing.

- Perform an adaptation on the motors for the sunroof and the sunroof shade after completing the procedure. Refer to → Chapter "Power Sunroof Control Module -J245-, Programming" for the sunroof motor and → Chapter "Roof Shade Control Module - J394-, Programming" for the sunroof shade motor.
