Overview - Seat Heating Element, Standard, Sport, Folding Seat

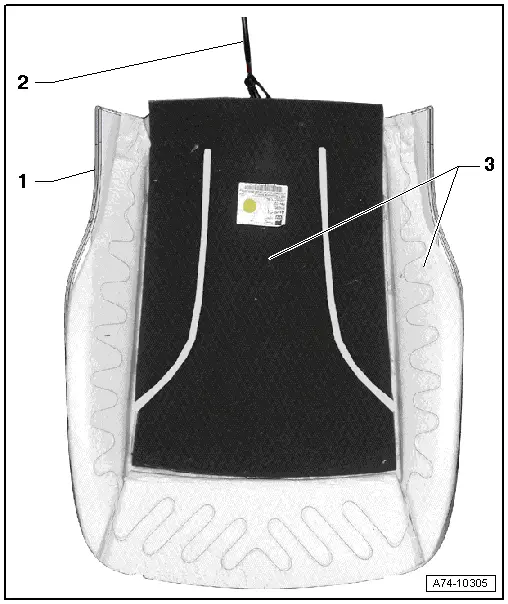

Audi Q5. Overview - Seat Heating Element, Standard, Sport, Folding Seat

1 - Cushion

  • For the lower seat frame
  • Allocation. Refer to the Parts Catalog.

2 - Line

  • Permanently attached to the heating element

3 - Seat Heating Element

  • Bonded with upholstery
  • Allocation. Refer to the Parts Catalog.
  • Removing and installing. Refer to → Chapter "Driver/Front Passenger Seat Heating Element -Z6-/-Z8-, Removing and Installing, Standard Seat, Sport Seat, Folding Seat".

Overview - Seat Heating Element, Comfort Seat

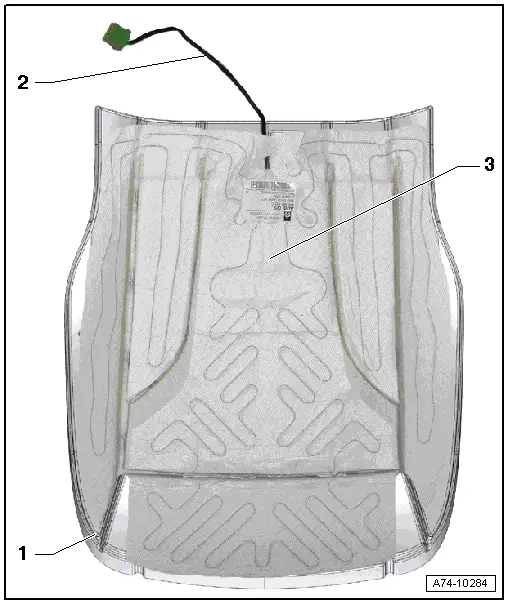

Audi Q5. Overview - Seat Heating Element, Comfort Seat

1 - Cushion

  • For the lower seat frame

2 - Line

  • Permanently attached to the heating element

3 - Seat Heating Element

  • Removing and installing. Refer to → Chapter "Seat Heating Element -Z6-/-Z8- , Removing and Installing, Comfort Seat".

Overview - Backrest Heating Element

Overview - Seat Backrest Heating Element, Standard, Sport, Folding Seat

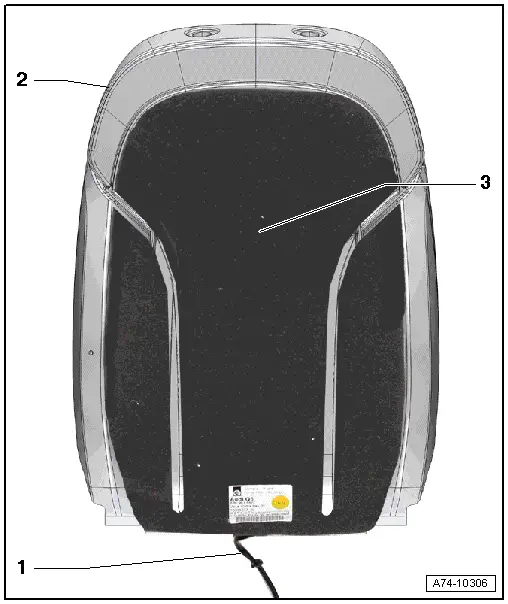

Audi Q5. Overview - Seat Backrest Heating Element, Standard, Sport, Folding Seat

1 - Line

  • Permanently attached to the heating element

2 - Cushion

  • For the backrest
  • Allocation. Refer to the Parts Catalog.

3 - Backrest Heating Element

  • Bonded with upholstery
  • Allocation. Refer to the Parts Catalog.
  • Removing and installing. Refer to → Chapter "Driver/Front Passenger Backrest Heating Element -Z7-/- Z9-, Removing and Installing, Standard Seat, Sport Seat Folding Seat".

Backrest Heating Element, Assembly Overview, Comfort Seat

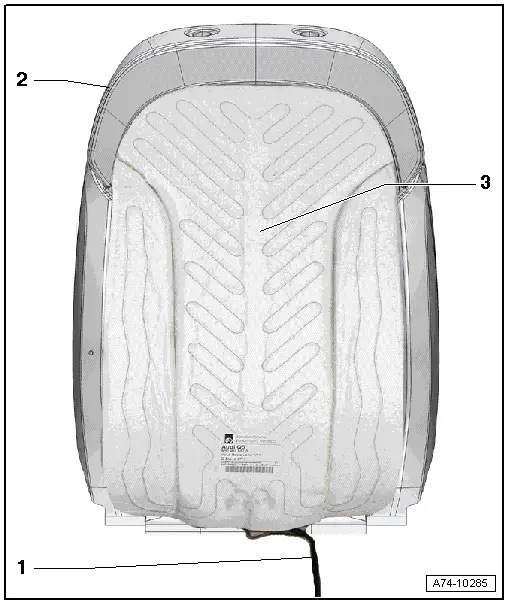

Audi Q5. Backrest Heating Element, Assembly Overview, Comfort Seat

1 - Line

  • Permanently attached to the heating element

2 - Cushion

  • For the backrest

3 - Backrest Heating Element

  • Bonded
  • Removing and installing. Refer to → Chapter "Backrest Heating Element -Z7-/-Z9-, Removing and Installing, Comfort Seat".
