Audi Q5: Overview - Front Seat

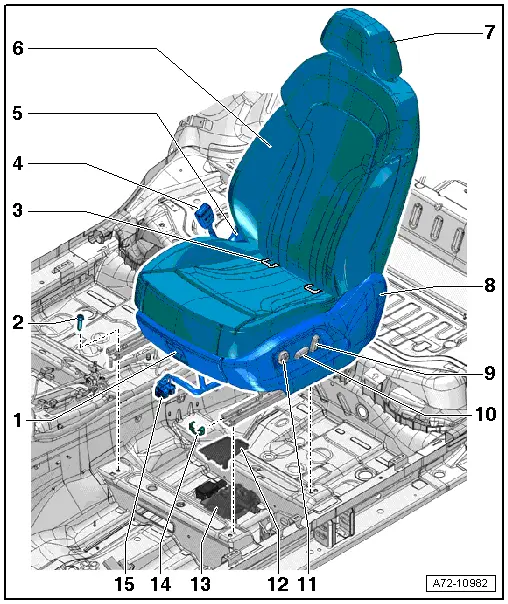

Front Standard Manual Seat, Assembly Overview

1 - Drawer/Storage Compartment

• Equipment levels
• Drawer, assembly overview. Refer to → Chapter "Overview - Drawer".
• Storage compartment, assembly overview. Refer to → Chapter "Overview - Storage Compartment".

2 - Bolt

• 50 Nm
• Quantity: 4

3 - Handle

• For seat forward/back adjustment
• Removing and installing. Refer to → Chapter "Seat Forward/Back Adjustment Handle, Removing and Installing".

4 - LATCH Child Seat Anchorage

• Equipment levels
• For the front passenger seat only
• Overview. Refer to → Chapter "Overview - Front Child Seat Anchors".
• For checking after an accident, refer to → Chapter "Child Seat Anchors, Checking After a Collision".

5 - Seat Belt Latch

• Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".
• Removing and installing. Refer to → Chapter "Front Seat Belt Latch, Removing and Installing".

6 - Seat Side Trim on the Tunnel Side

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".
• Removing and installing. Refer to → Chapter "Trim, Removing and Installing, Tunnel-Side".

7 - Front Seat

• There is no separation between the upper and lower seat pan frame on the front seat - standard seat (manual).
• Removing and installing. Refer to → Chapter "Front Seat, Removing and Installing, Manual".

8 - Headrest

• Overview. Refer to → Chapter "Overview - Headrest".

9 - Backrest Adjusting Wheel

• Removing and installing. Refer to → Chapter "Backrest Adjuster, Removing and Installing".

10 - Seat Side Sill Panel Trim

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

11 - Seat Height Adjuster

• Overview. Refer to → Chapter "Overview - Seat Height Adjuster".

12 - Actuator

• For the lumbar support
• Equipment levels
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".
• Lumbar Support Adjustment Switch, Removing and Installing. Refer to → Chapter "Driver/Front Passenger Seat Lumbar Support Adjustment Switch -E176-/-E177-, Removing and Installing".
• Four-way lumbar support removing and installing. Refer to → Chapter "Lumbar Support Adjustment Motors -V125-/-V126-/-V129-/-V130-, Removing and Installing".

13 - Cover

• For the connector station
• Removing and installing. Refer to → Chapter "Disconnecting And Connecting The Connector To The Connector Station".

14 - Connector Station

15 - Cover

• For the seat rail
• Quantity: 4
• Removing and installing. Refer to → Chapter "Seat Rail Cover, Removing and Installing".

16 - Connector

• With a corrugated tube for the modular wiring routing
• Modular Wiring Routing Assembly Overview, refer to → Chapter "Overview - Modular Wiring Routing"

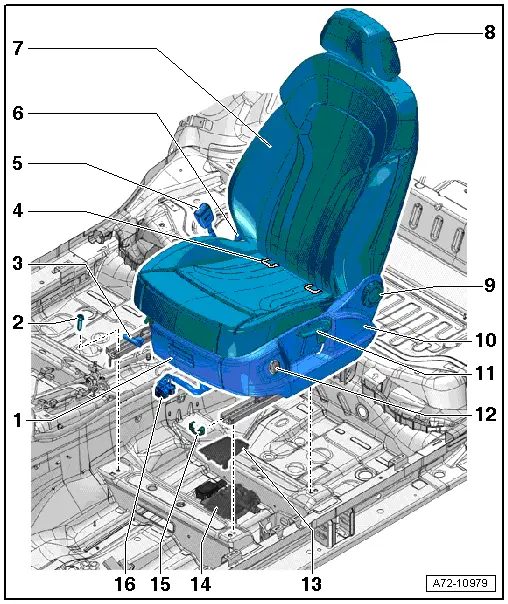

Front Standard Power Seat, Assembly Overview

1 - Storage Compartment

• Equipment levels
• Overview. Refer to → Chapter "Overview - Storage Compartment".

2 - Bolt

• Quantity: 4
• 50 Nm

3 - LATCH Child Seat Anchorage

• Equipment levels
• For the front passenger seat only
• Overview. Refer to → Chapter "Overview - Front Child Seat Anchors".
• For checking after an accident, refer to → Chapter "Child Seat Anchors, Checking After a Collision".

4 - Seat Belt Latch

• Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".

5 - Seat Side Trim on the Tunnel Side

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

6 - Power Standard Front Seat

• Removing and installing. Refer to → Chapter "Front Seat, Removing and Installing, Power".
• Seat frame assembly overview. Refer to → Chapter "Overview - Seat Pan"

7 - Headrest

• Overview. Refer to → Chapter "Overview - Headrest".

8 - Seat Side Sill Panel Trim

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

9 - Actuator

• For backrest adjustment
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

10 - Actuator

• For seat forward/back, tilt, and height adjustment
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

11 - Actuator

• For the lumbar support
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".
• Lumbar Support, removing and installing. Refer to → Chapter "Lumbar Support Adjustment Motors -V125-/-V126-/-V129-/-V130-, Removing and Installing".

12 - Cover

• For the connector station
• Removing and installing. Refer to → Chapter "Disconnecting And Connecting The Connector To The Connector Station".

13 - Connector Station

14 - Cover

• For the seat rail
• Quantity: 4
• Removing and installing. Refer to → Chapter "Seat Rail Cover, Removing and Installing".

15 - Connector

• With a corrugated tube for the modular wiring routing
• Modular Wiring Routing Assembly Overview, refer to → Chapter "Overview - Modular Wiring Routing"

Front Seat, Assembly Overview, Comfort Seat

1 - Storage Compartment

• Equipment levels
• Overview. Refer to → Chapter "Overview - Storage Compartment".

2 - Bolt

• 50 Nm
• Quantity: 4

3 - LATCH Child Seat Anchorage

• Equipment levels
• For the front passenger seat only
• Overview. Refer to → Chapter "Overview - Front Child Seat Anchors".
• For checking after an accident, refer to → Chapter "Child Seat Anchors, Checking After a Collision".

4 - Seat Belt Latch

• Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".

5 - Seat Side Trim on the Tunnel Side

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

6 - Front Seat - Comfort Seat

• Removing and installing. Refer to → Chapter "Front Seat, Removing and Installing, Power".
• Seat frame assembly overview. Refer to → Chapter "Overview - Seat Pan"

7 - Headrest

• Overview. Refer to → Chapter "Overview - Headrest".

8 - Seat Side Sill Panel Trim

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

9 - Actuator

• for backrest adjustment
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

10 - Actuator

• For seat forward/back, tilt, and height adjustment
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

11 - Actuator

• For the lumbar support
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".
• Four-way lumbar support removing and installing. Refer to → Chapter "Lumbar Support Adjustment Motors -V125-/-V126-/-V129-/-V130-, Removing and Installing".

12 - Cover

• For the connector station
• Removing and installing. Refer to → Chapter "Disconnecting And Connecting The Connector To The Connector Station".

13 - Connector Station

14 - Cover

• For the seat rail
• Quantity: 4
• Removing and installing. Refer to → Chapter "Seat Rail Cover, Removing and Installing".

15 - Connector

• With a corrugated tube for the modular wiring routing
• Modular Wiring Routing Assembly Overview, refer to → Chapter "Overview - Modular Wiring Routing"

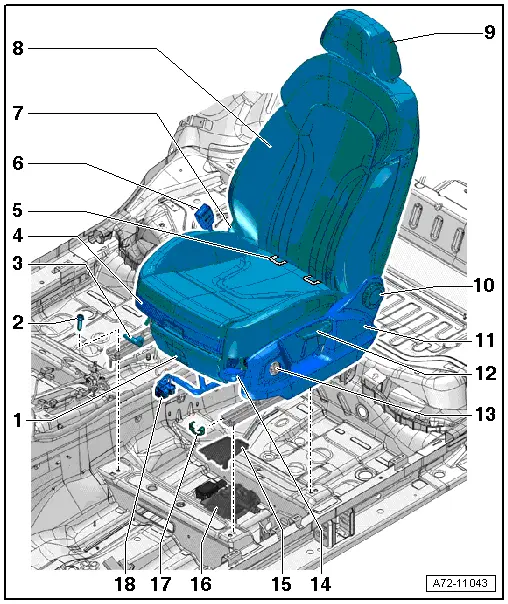

Front Sport Manual Seat, Assembly Overview

1 - Storage Compartment

• Equipment levels
• Overview. Refer to → Chapter "Overview - Storage Compartment".

2 - Bolt

• 50 Nm
• Quantity: 4

3 - Handle

• For seat forward/back adjustment
• Removing and installing. Refer to → Chapter "Seat Forward/Back Adjustment Handle, Removing and Installing".

4 - Seat Depth Adjuster

• Overview. Refer to → Chapter "Overview - Seat Depth Adjuster".

5 - LATCH Child Seat Anchorage

• Equipment levels
• For the front passenger seat only
• Overview. Refer to → Chapter "Overview - Front Child Seat Anchors".
• For checking after an accident, refer to → Chapter "Child Seat Anchors, Checking After a Collision".

6 - Seat Belt Latch

• Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".

7 - Seat Side Trim on the Tunnel Side

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".
• Removing and installing. Refer to → Chapter "Trim, Removing and Installing, Tunnel-Side".

8 - Manual Sport Front Seat

• There is no separation between the upper and lower seat pan frame on the manual Sport front seat.
• Removing and installing. Refer to → Chapter "Front Seat, Removing and Installing, Manual".

9 - Headrest

• Overview. Refer to → Chapter "Overview - Headrest".

10 - Backrest Adjusting Wheel

• Removing and installing. Refer to → Chapter "Backrest Adjuster, Removing and Installing".

11 - Seat Side Sill Panel Trim

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

12 - Seat Height Adjuster

• Overview. Refer to → Chapter "Overview - Seat Height Adjuster".

13 - Actuator

• For the lumbar support
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".
• Four-way lumbar support removing and installing. Refer to → Chapter "Lumbar Support Adjustment Motors -V125-/-V126-/-V129-/-V130-, Removing and Installing".

14 - Seat Angle Adjustment

• Overview. Refer to → Chapter "Overview - Seat Angle Adjuster".

15 - Cover

• For the connector station
• Removing and installing. Refer to → Chapter "Disconnecting And Connecting The Connector To The Connector Station".

16 - Connector Station

17 - Cover

• For the seat rail
• Quantity: 4
• Removing and installing. Refer to → Chapter "Seat Rail Cover, Removing and Installing".

18 - Connector

• With a corrugated tube for the modular wiring routing
• Modular Wiring Routing Assembly Overview, refer to → Chapter "Overview - Modular Wiring Routing"

Front Sport Power Seat, Assembly Overview

1 - Storage Compartment

• Equipment levels
• Overview. Refer to → Chapter "Overview - Storage Compartment".

2 - Bolt

• 50 Nm
• Quantity: 4

3 - Seat Depth Adjuster

• Overview. Refer to → Chapter "Overview - Seat Depth Adjuster".

4 - LATCH Child Seat Anchorage

• Equipment levels
• For the front passenger seat only
• Overview. Refer to → Chapter "Overview - Front Child Seat Anchors".
• For checking after an accident, refer to → Chapter "Child Seat Anchors, Checking After a Collision".

5 - Seat Belt Latch

• Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".

6 - Seat Side Trim on the Tunnel Side

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

7 - Power Sport Front Seat

• Seat frame assembly overview. Refer to → Chapter "Overview - Seat Pan"

8 - Headrest

• Overview. Refer to → Chapter "Overview - Headrest".

9 - Seat Side Sill Panel Trim

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat".

10 - Actuator

• for backrest adjustment
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

11 - Actuator

• For seat forward/back, tilt, and height adjustment
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

12 - Actuator

• For the lumbar support
• Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".
• Four-way lumbar support removing and installing. Refer to → Chapter "Lumbar Support Adjustment Motors -V125-/-V126-/-V129-/-V130-, Removing and Installing".

13 - Cover

• For the connector station
• Removing and Installing. Refer to → Chapter "Disconnecting And Connecting The Connector To The Connector Station".

14 - Connector Station

15 - Cover

• For the seat rail
• Quantity: 4
• Removing and installing. Refer to → Chapter "Seat Rail Cover, Removing and Installing".

16 - Connector

• With a corrugated tube for the modular wiring routing
• Modular Wiring Routing Assembly Overview, refer to → Chapter "Overview - Modular Wiring Routing"

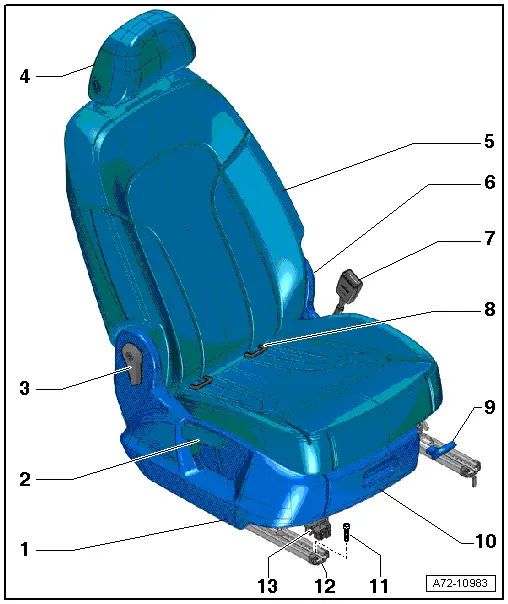

Overview - Front Folding Passenger Seat

1 - Seat Side Sill Panel Trim

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Front Passenger Side Folding Seat".

2 - Seat Height Adjuster

• Overview. Refer to → Chapter "Overview - Seat Height Adjuster".

3 - Release Handle

• For the backrest
• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Front Passenger Side Folding Seat".

4 - Headrest

• Overview. Refer to → Chapter "Overview - Headrest".

5 - Front Folding Seat

• Only passenger side
• There is no separation between the upper and lower frame on the passenger folding seat.
• Removing and installing. Refer to → Chapter "Front Seat, Removing and Installing, Manual".

6 - Seat Side Trim on the Tunnel side

• Overview. Refer to → Chapter "Overview - Sill and Tunnel Side Trim, Front Passenger Side Folding Seat".

7 - Seat Belt Latch

• Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".

8 - LATCH Child Seat Anchorage

• Equipment levels
• Overview. Refer to → Chapter "Overview - Front Child Seat Anchors".
• For checking after an accident, refer to → Chapter "Child Seat Anchors, Checking After a Collision".

9 - Handle

• for seat forward/back adjustment
• Removing and installing. Refer to → Chapter "Seat Forward/Back Adjustment Handle, Removing and Installing".

10 - Drawer

• Equipment levels
• Overview. Refer to → Chapter "Overview - Drawer".

11 - Bolt

• Quantity: 4
• 50 Nm

12 - Cover

• For the seat rail
• Removing and installing. Refer to → Chapter "Seat Rail Cover, Removing and Installing".

13 - Connector

• With a corrugated tube for the modular wiring routing
• Modular Wiring Routing Assembly Overview, refer to → Chapter "Overview - Modular Wiring Routing"
