Audi Q5: Component Locations Overview - Electric and Electronic Components

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body  Interior / Seat Frames / Component Locations Overview - Electric and Electronic Components

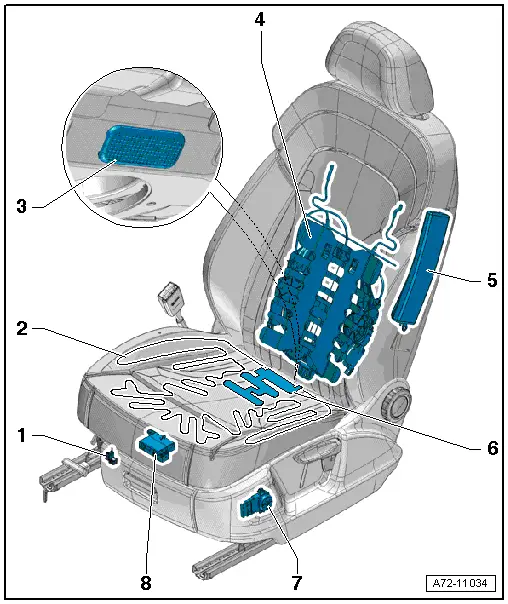

Electrical and Electronic Components, Component Locations Overview, Manual Front Seat

Audi Q5. Electrical and Electronic Components, Component Locations Overview, Manual Front Seat

1 - Seat Position Sensor

  • Driver side: Driver Seat Position Sensor -G553-
  • Front passenger side: Front Passenger Seat Position Sensor -G554-
  • Overview. Refer to → Chapter "Overview - Seat Position Sensor".

2 - Heating Element

  • Equipment levels
  • Overview. Refer to → Chapter "Overview - Seat Heating Element, Standard, Sport, Folding Seat".

3 - Footwell Lamp

  • Equipment levels
  • Removing and Installing. Refer to → Electrical Equipment; Rep. Gr.96; Lamps; Left/Right Rear Footwell Lamp W45/W46, Removing and Installing.

4 - Four-Way Lumbar Support

  • cannot be disassembled; available only as a complete unit. Refer to Parts Catalog
  • Driver side:
    • With Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
    • With Driver Seat Lumbar Support Height Adjustment Motor -V129-
  • Front passenger side:
    • With Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
    • With Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
  • Overview. Refer to → Chapter "Overview - Lumbar Support".

5 - Front Side Airbag

  • Driver side: with the Driver Thorax Airbag Igniter -N199-
  • Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-

  WARNING

Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".

  • Overview. Refer to → Chapter "Overview - Front Side Airbag".

6 - Front Passenger Seat Occupant Sensor -G128-

  • Equipment levels
  • for the front passenger seat only

7 - Lumbar Support Adjustment Switch

  • Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
  • Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
  • Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

8 - Seat Ventilation Control Module (Integrated in the Seat Heating)

  • With driver side heated seat: Left Front Seat Ventilation Control Module -J800-
  • With passenger side heated seat: Right Front Seat Ventilation Control Module -J799-
  • Overview. Refer to → Chapter "Overview - Memory Seat/Steering Column Adjustment Control Module".

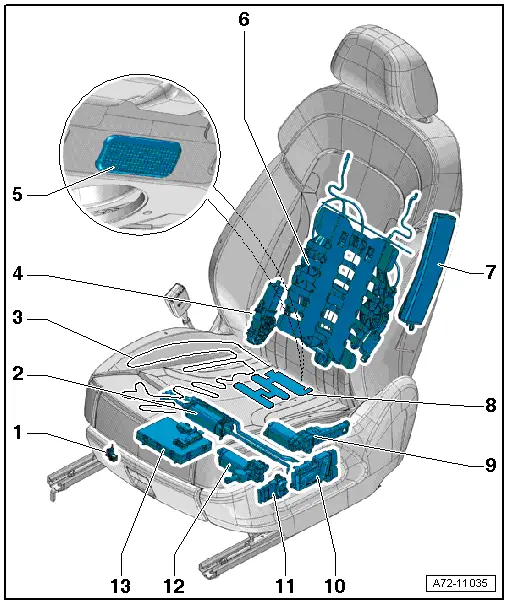

Electrical and Electronic Components, Component Locations Overview, Power Front Seat

Audi Q5. Electrical and Electronic Components, Component Locations Overview, Power Front Seat

1 - Seat Position Sensor

  • Driver side: Driver Seat Position Sensor -G553-
  • Front passenger side: Front Passenger Seat Position Sensor -G554-
  • Overview. Refer to → Chapter "Overview - Seat Position Sensor".

2 - Seat Forward/Back Adjustment Motor

  • Driver side: Driver Seat Forward/Back Adjustment Motor -V28-
  • Front passenger side: Front Passenger Seat Forward/Back Adjustment Motor -V31-
  • Overview. Refer to → Chapter "Overview - Seat Forward/Back Adjustment Motor".

3 - Heating Element

  • Equipment levels
  • Overview. Refer to → Chapter "Overview - Seat Heating Element, Standard, Sport, Folding Seat".

4 - Backrest Adjustment Motor

  • Driver side: Driver Backrest Adjustment Motor -V45-
  • Front passenger side: Front Passenger Backrest Adjustment Motor -V46-
  • Overview. Refer to → Chapter "Overview - Backrest Adjustment Motor".

5 - Footwell Lamp

  • Equipment levels
  • Removing and Installing. Refer to → Electrical Equipment; Rep. Gr.96; Lamps; Left/Right Rear Footwell Lamp W45/W46, Removing and Installing.

6 - Lumbar Support

  • cannot be disassembled; available only as a complete unit → Parts Catalog
  • Driver side:
    • With Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
    • With Driver Seat Lumbar Support Height Adjustment Motor -V129-
  • Front passenger side:
    • Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
    • Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
  • Overview. Refer to → Chapter "Overview - Lumbar Support".

7 - Front Side Airbag

  • Driver side: with the Driver Thorax Airbag Igniter -N199-
  • Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-

  WARNING

Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".

  • Overview. Refer to → Chapter "Overview - Front Side Airbag".

8 - Front Passenger Seat Occupant Sensor -G128-

  • Equipment levels
  • for the front passenger seat only
  • Removing and installing. Refer to → Chapter "Front Passenger Seat Occupied Sensor -G128-, Removing and Installing".

9 - Seat Height Adjustment Motor

  • Driver side: Driver Seat Height Adjustment Motor -V245-
  • Front passenger side: Front Passenger Seat Height Adjustment Motor -V246-
  • Overview. Refer to → Chapter "Overview - Seat Height Adjustment Motor".

10 - Seat Adjustment Control Head

  • Driver side: Driver Seat Adjustment Control Head -E470- with:
    • Driver Backrest Adjustment Switch -E96-
    • Driver Seat Angle Adjustment Switch -E222-
    • Driver Seat Forward/Back Adjustment Switch -E363-
    • Driver Seat Height Adjustment Switch -E364-
  • Front passenger side: Front Passenger Seat Adjustment Control Head -E471- with:
    • Front Passenger Seat Forward/Back Adjustment Switch -E64-
    • Front Passenger Backrest Adjustment Switch -E98-
    • Front Passenger Seat Angle Adjustment Button -E334-
    • Front Passenger Seat Height Adjustment Switch -E365-
  • Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

11 - Lumbar Support Adjustment Switch

  • Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
  • Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
  • Overview. Refer to → Chapter "Overview - Seat, Backrest and Headrest Adjustment Control Head".

12 - Seat Angle Adjustment Motor

  • Driver side: Driver Seat Angle Adjustment Motor -V243-
  • Front passenger side: Front Passenger Seat Angle Adjustment Motor -V244-
  • Overview. Refer to → Chapter "Overview - Seat Angle Adjustment Motor".

13 - Memory Seat/Steering Column Adjustment Control Module

Seat with memory function:

  • Driver side: Memory Seat/Steering Column Adjustment Control Module -J136-
  • Front passenger side: Front Passenger Memory Seat Control Module -J521-

Vehicles with seat heating or Comfort seat:

  • Driver side: Left Front Seat Ventilation Control Module -J800- (integrated in the seat heating)
  • Front passenger side: Driver side: Left Front Seat Ventilation Control Module -J799- (integrated in the seat heating function)
  • Overview. Refer to → Chapter "Overview - Memory Seat/Steering Column Adjustment Control Module".

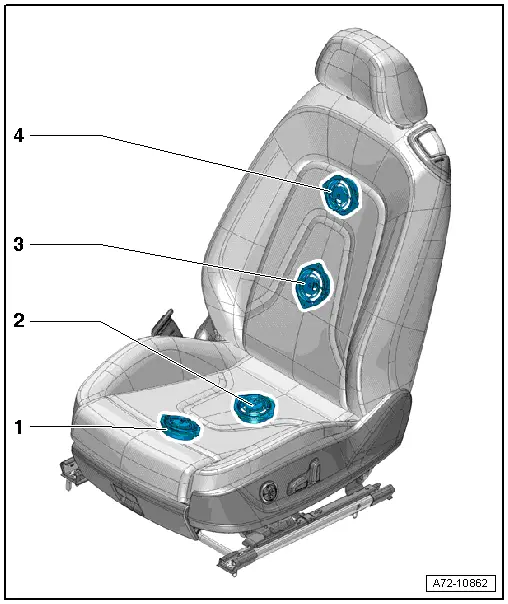

Electrical and Electronic Components, Component Locations Overview, Seat Cushion and Backrest Fan

Audi Q5. Electrical and Electronic Components, Component Locations Overview, Seat Cushion and Backrest Fan

1 - Seat Cushion Fan

  • Driver side: Driver Seat Cushion Blower Fan -V390-
  • Front passenger side: Front Passenger Seat Cushion Blower Fan -V391-
  • Removing and installing. Refer to → Chapter "Seat Cushion Fan, Removing and Installing".

2 - Seat Cushion Fan 2

  • Driver side: Driver Seat Cushion Blower Fan 2 -V419-
  • Front passenger side: Front Passenger Seat Cushion Blower Fan 2 -V420-
  • Removing and installing. Refer to → Chapter "Seat Cushion Fan, Removing and Installing".

3 - Backrest Fan 2

  • Driver side: Driver Seat Backrest Blower Fan 2 -V417-
  • Front passenger side: Front Passenger Seat Backrest Blower Fan 2 -V418-
  • Removing and installing. Refer to → Chapter "Upper Backrest Fan, Removing and Installing".

4 - Backrest Fan

  • Driver side: Driver Seat Backrest Blower Fan -V388-
  • Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
  • Removing and installing. Refer to → Chapter "Upper Backrest Fan, Removing and Installing".
