Audi Q5: Component Location Overview - Seat Belts and Attaching Points

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body  Interior / Passenger Protection, Airbags, Seat Belts / Component Location Overview - Seat Belts and Attaching Points

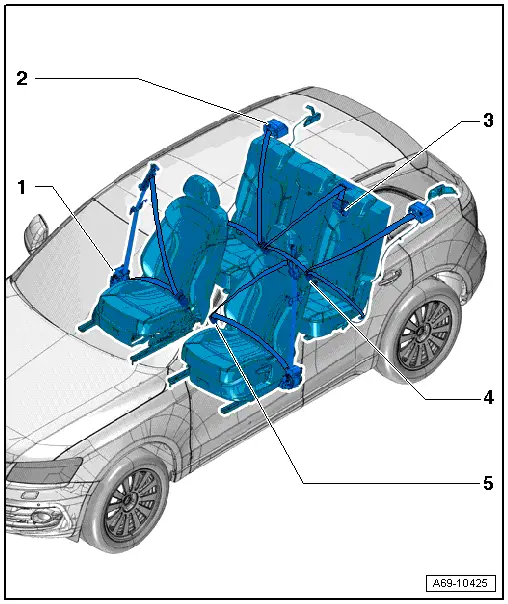

Audi Q5. Component Location Overview - Seat Belts and Attaching Points

1 - Front Three-Point Seat Belt

  • Drivers side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
  • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
  • Overview. Refer to → Chapter "Overview - Front Three-Point Seat Belt".

2 - Rear Outside Three-Point Seat Belt

  • Market-specific: Driver side with Driver Side Rear Seat Belt Tensioner Igniter -N196-
  • Market-specific: Passenger side with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
  • Overview. Refer to → Chapter "Overview - Rear Outer Three-Point Seat Belt".

3 - Rear Three-Point Seat Belt in the Center Seating Position

  • Overview. Refer to → Chapter "Overview - Rear Center Three-Point Seat Belt".

4 - Rear Seat Belt Latch

  • Overview. Refer to → Chapter "Overview - Rear Seat Belt Latch".

5 - Front Seat Belt Latch

  • Overview. Refer to → Chapter "Overview - Front Seat Belt Latch".

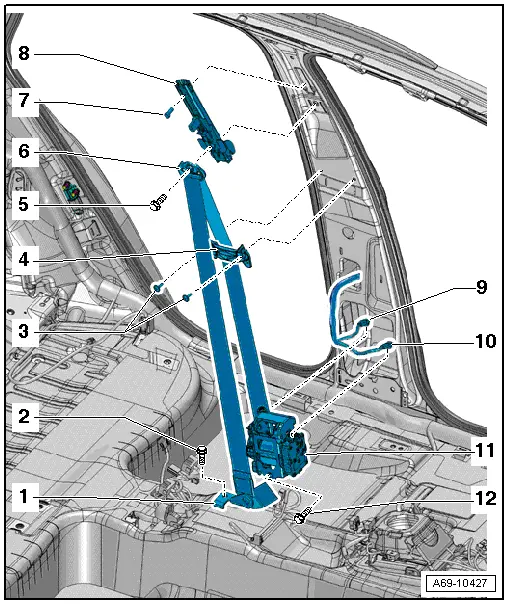

Overview - Front Three-Point Seat Belt

Audi Q5. Overview - Front Three-Point Seat Belt

1 - Front Belt Anchor

  • Removing and installing. Refer to → Chapter "Front Belt End Fitting, Removing and Installing".

2 - Bolt

  • 45 Nm
  • If it was removed because of an accident, replace the bolt

3 - Bolts

  • 5 Nm
  • Self-locking
  • Always replace if removed
  • Threaded holes for screws must be cleaned, for example, with thread cutter

4 - Front Seat Belt Guide

  • Removing and installing. Refer to → Chapter "Front Seat Belt Guide, Removing and Installing".

5 - Bolt

  • If it was removed because of an accident, replace the bolt
  • 45 Nm

6 - Seat Belt Guide

7 - Bolt

  • 27 Nm
  • If it was removed because of an accident, replace the bolt

8 - Seat Belt Height Adjuster

  • Removing and installing. Refer to → Chapter "Seat Belt Height Adjuster, Removing and Installing".
  • Always replaced if the belt tensioner has deployed with the belt on

9 - Connector

  • For the Driver Belt Force Limiter -G551-
  • For the Front Passenger Belt Force Limiter -G552-
  • Disconnecting and connecting. Refer to → Chapter "Front Three-Point Seat Belt, Removing and Installing".

10 - Connector

  • For the Driver Seat Belt Tensioner Igniter 1 -N153-
  • For the Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  • Disconnecting and connecting. Refer to → Chapter "Front Three-Point Seat Belt, Removing and Installing".

11 - Automatic Belt Retractor

  • Drivers side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
  • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
  • Removing and installing. Refer to → Chapter "Front Three-Point Seat Belt, Removing and Installing".

12 - Bolt

  • 45 Nm
  • If it was removed because of an accident, replace the bolt

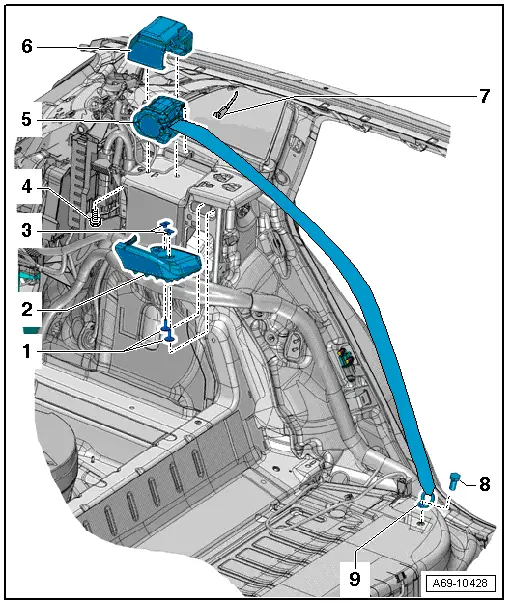

Overview - Rear Outer Three-Point Seat Belt

Audi Q5. Overview - Rear Outer Three-Point Seat Belt

1 - Bolts

  • Do not change the bolt position when removing and installing the belt guide. It is set by the manufacturer.

2 - Rear Outside Belt Guide

  • Replace the entire belt guide if damaged.
  • Removing and installing. Refer to → Chapter "Outer Rear Belt Guide, Removing and Installing".

3 - Nut

4 - Bolt

  • 45 Nm
  • If it was removed because of an accident, replace the bolt

5 - Automatic Belt Retractor

  • Market-specific: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
  • Market-specific: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
  • Removing and installing. Refer to → Chapter "Outer Rear Three-Point Seat Belt, Removing and Installing".

6 - Noise Insulation

  • For the automatic belt retractor

7 - Connector

  • Market-specific for Driver Side Rear Seat Belt Tensioner Igniter -N196-
  • Market-specific for Passenger Side Rear Seat Belt Tensioner Igniter -N197-

8 - Bolt

  • 45 Nm
  • If it was removed because of an accident, replace the bolt

9 - Outer Rear Belt End Fitting

  • Removing and installing. Refer to → Chapter "Rear Outer Belt End Fitting, Removing and Installing".

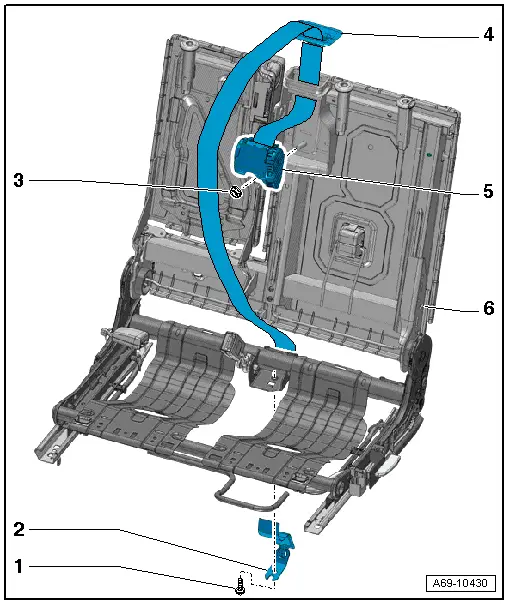

Overview - Rear Center Three-Point Seat Belt

Audi Q5. Overview - Rear Center Three-Point Seat Belt

1 - Bolt

  • 45 Nm
  • Replacing

2 - Belt End Fitting

  • Rear in the center
  • Removing and installing. Refer to → Chapter "Rear Seat Belt Anchor in Center Seating Position, Removing and Installing".

3 - Nut

  • 45 Nm
  • If it was removed because of an accident, replace the nut

4 - Cover

  • For the rear center belt guide
  • Replace if damaged.
  • Removing and installing. Refer to → Chapter "Rear Seat Belt Cover in Center Seating Position, Removing and Installing".

5 - Automatic Belt Retractor

  • Removing and installing. Refer to → Chapter "Rear Three Point Seat Belt in Center Seating Position, Removing and Installing".

6 - Left 2/3 Rear Seat

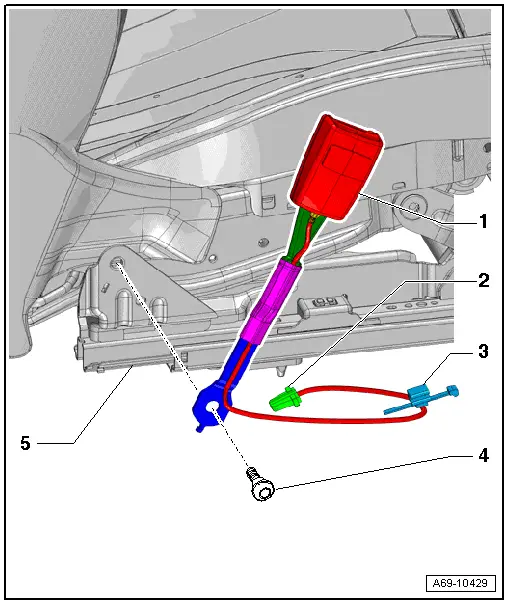

Overview - Front Seat Belt Latch

Audi Q5. Overview - Front Seat Belt Latch

1 - Front Seat Belt Latch

  • Driver side with Driver Seat Belt Switch -E24-
  • Front passenger side: With Front Passenger Seat Belt Switch -E25- (depending on the country; belt latch version not illustrated)
  • Removing and installing. Refer to → Chapter "Front Seat Belt Latch, Removing and Installing"
  • Always replaced if the belt tensioner has deployed with the belt on
  • Installed position

2 - Connector

  • For the seat belt switch

3 - Wiring Bracket

4 - Bolt

  • 34 Nm
  • If it was removed because of an accident, replace the bolt

5 - Seat Frame

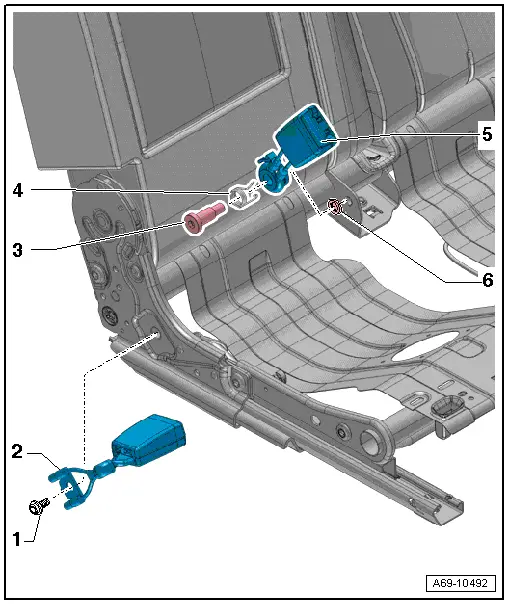

Overview - Rear Seat Belt Latch

Audi Q5. Overview - Rear Seat Belt Latch

1 - Bolt

  • 40 Nm
  • If it was removed because of an accident, replace the bolt

2 - Seat Belt Latch

  • Rear in the center
  • Removing and installing. Refer to → Chapter "Rear Seat Belt Latch in Center Seating Position, Removing and Installing".
  • Always replaced if the belt tensioner has deployed with the belt on

3 - Bolt

  • 45 Nm
  • If it was removed because of an accident, replace the bolt

4 - Spring

5 - Seat Belt Latch

  • Rear outer
  • Removing and installing. Refer to → Chapter "Outer Rear Belt Latch, Removing and Installing".
  • Always replaced if the belt tensioner has deployed with the belt on

6 - Spring Washer
