Audi Q5: Battery charging

Starting the engine requires a well charged battery.

Checking and Filling

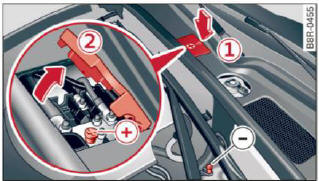

Fig. 202 Engine compartment: Connectors for charger and jumper cables

Always read and heed all WARNINGS below.

  • Hybrid drive: read the important information concerning a dead high voltage battery under.
  • Turn off the ignition and all electrical consumers.
  • Make sure the area is well ventilated when you charge the battery.
  • Open the engine hood.
  • Remove the cover 1 by pressing on the arrow > fig. 202.
  • Open the cover 2 on the positive terminal.
  • Connect the charger connectors according to the instructions to the jump start bolts. (Bolts under the cover = "positive", Bolts with hex head = "negative").
  • Only now plug the mains lead for the charging equipment into the wall outlet and turn it on.
  • Make sure the charging rate is not over 30 amps/14.8 Volt
  • When the battery is fully charged: Turn the charging equipment off and remove the mains lead from the wall outlet.
  • Now remove the clamps for the charging equipment.
  • Close the cover 2 on the positive terminal and re-install the cover 1.
  • Close the hood.

A discharged battery can freeze at temperatures of only 32 ºF (0 ºС). Allow a frozen battery to thaw completely before attempting to charge it. However, we recommend not using a thawed battery again because the battery casing can be cracked due to ice formation and can leak battery acid.

Battery charging (Maximum charging rate of 30 amps/14.8 Volt)

When charging at low voltages (e.g. with a trickle charger), the battery cables do not have to be disconnected first. The battery caps should not be opened when charging a battery.

It is not necessary to remove the battery from the luggage compartment.

Fast charging the battery (charging rate above 14.8 Volts)

For technical reasons do not use a battery charger that uses voltage greater than 14.8 Volts to charge your vehicle's battery.

WARNING

Charging a battery can be dangerous.

  • Always follow the operating instructions provided by the battery charger manufacturer when charging your battery.
  • Never charge a frozen battery. It may explode because of gas trapped in the ice. Allow a frozen battery to thaw out first.
  • Do not reuse batteries which were frozen. The battery housing may have cracked and weakened when the battery froze.
  • Charge the battery in a welt ventilated area. Keep away from open flame or electrical spark. Do not smoke. Hydrogen gas generated by the battery is explosive.
  • To reduce the danger of explosion, never connect or disconnect charger cables while the charger is operating.
  • Fast charging a battery is dangerous and should only be attempted by a competent technician with the proper equipment.
  • Battery acid that may spill during charging should be washed off with a solution of warm water and baking soda to neutralize the acid.

Note

Never use a fast charger as a booster to start the engine. This will seriously damage sensitive electronic components, such as control units, relays, radio, etc., as well as the battery charger.
