Audi Q5: Air Intake Grille, Removing and Installing
Air Intake Grille, Removing and Installing, Audi Q5
Removing
Version 1:

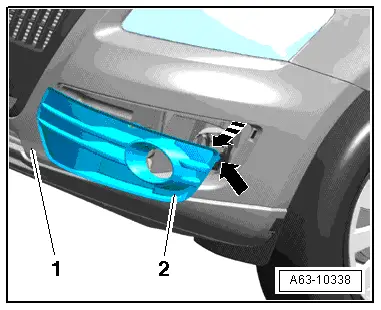

- Remove the air intake grille -2- from the bumper cover -1-.
Version 2:

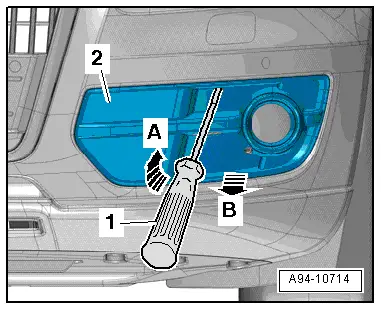

- Release the hook -arrow A- using a screwdriver -1-.
- Pull the air intake grille -2- out of the bumper cover -arrow B-.
Installing
Install in reverse order of removal.
Air Intake Grille, Removing and Installing, Audi Q5 S-Line and Audi SQ5
Special tools and workshop equipment required
- Hook Tool -T40207-
Removing
Left Side:

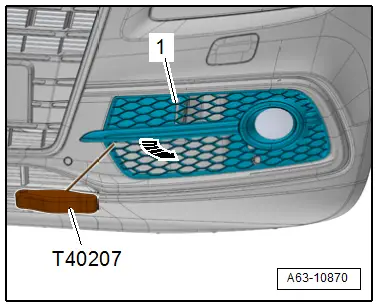

- Pull the air intake grille -1- at the inner side out of the bumper cover using the Hook Tool - T40207--arrow-.
Right Side:

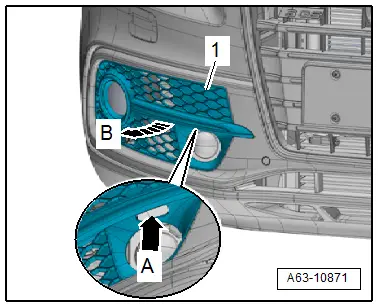

- Grasp the recessed handle -arrow A- and pull the air intake grille -1- at the inner side out of the bumper cover -arrow B-.
Center
- Remove the radiator grille. Refer to → Chapter "Radiator Grille, Removing and Installing, Audi Q5 S-Line and Audi SQ5".

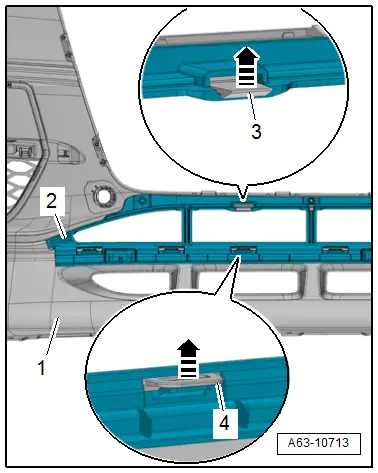

- Release the tabs -4- and retainers -3--arrows-.
- Remove the air intake grille -1- from the bumper cover -2-.
Installing
Install in reverse order of removal. Note the following:
- Insert the air intake grille in the bumper cover and press on it until the tabs engage completely in the bumper.
Front Bumper Cover End Plate, Removing and Installing
Bumper Cover End Plate, Removing and Installing, Audi Q5
Removing
- Remove the front noise insulation. Refer to → Chapter "Noise Insulation, Removing and Installing".

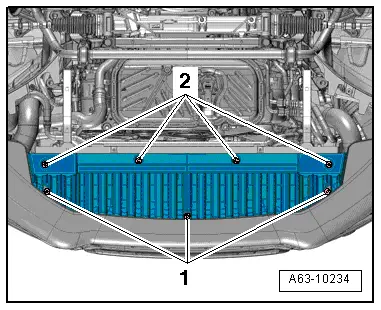

- Remove the bolts -1- and -2-.
- Remove the end plate to the rear.
Installing
Install in reverse order of removal.
Bumper Cover End Plate, Removing and Installing, Audi Q5 S-Line and Audi SQ5
Front Bumper Cover End Plate
Removing
- Remove the front noise insulation. Refer to → Chapter "Noise Insulation, Removing and Installing".
- Remove the bolts -A arrows-.

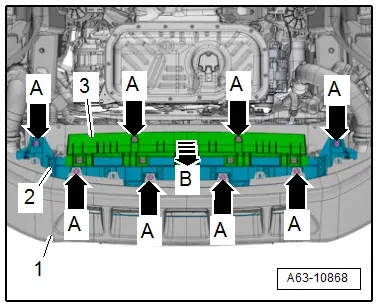

- Pull the rear end panel -3- down slightly -arrow B- and then pull the front end panel -2- back from the bumper cover -1-.
Installing
Install in reverse order of removal.
Rear Bumper Cover End Plate
Removing
- Remove the bolts -A arrows-.
- Pull the rear end plate -2- down slightly -Pfeil B- and remove it from the front end plate -1-.
Installing
Install in reverse order of removal.
