Audi Q5: Radio Connector Assignments, Chorus

Audi Q5. Radio Connector Assignments, Chorus

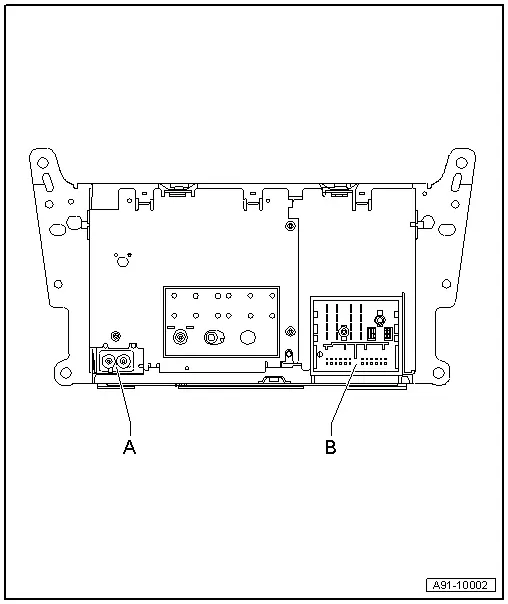

A - (AM/FM1/FM2) antenna jack

B - Black connection block with four multipin connectors

  Note

Unlisted connector terminals are not assigned.

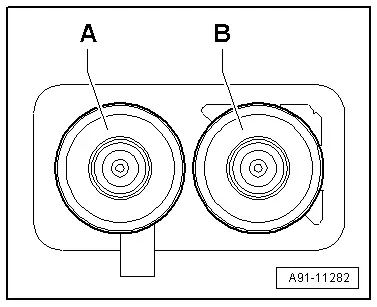

A - AM/FM1/FM2 antenna jack

 A - Chamber 2 (AM/FM1) from Antenna Amplifier 3 -R112- (Antenna -R11-)

 B - Chamber 1 (FM2) from Antenna Amplifier -R24- (Radio Antenna 2 -R93-)

Audi Q5. A91-11282

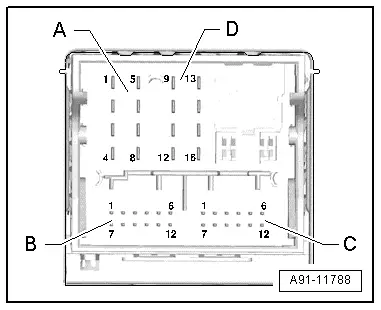

B - Connection block with four multipin connectors

A - Brown 8-pin connector (T8k)

1 - Right rear speaker (+)

2 - Right front speaker (+)

3 - Left front speaker (+)

4 - Left rear speaker (+)

5 - Right rear speaker (-)

6 - Right front speaker (-)

7 - Left front speaker (-)

8 - Left rear speaker (-)

Audi Q5. A91-11788

B - 12-pin connector (T12s)

1 - Left LF-In from the External Audio Source Connection -R199-

2 - LF-In ground from the External Audio Source Connection -R199-

3 - Ground

4 - Permanent positive

5 - Not Assigned

6 - DATA OUT

7 - Right LF-In from the External Audio Source Connection -R199-

8 - Left signal

9 - Right signal

10 - Positive switched

11 - DATA IN

12 - CLK

Audi Q5. A91-11788

C - Green 12-pin connector (T12a)

1 - Microphone IN (-)

2 - Right LF OUT

3 - LF OUT ground

4 - Microphone OUT (-)

5 - Left LF IN (-)

6 - LF (-) from the cell phone preparation/Telephone Transceiver -R36-

7 - Microphone IN (+)

8 - Left LF OUT

9 - Microphone OUT (+)

10 - LF mute wire from preliminary setup for cell phone preparation

11 - Left LF IN (+)

12 - LF (+) from the cell phone preparation/Telephone Transceiver -R36-

Audi Q5. A91-11788

D - Black 8-pin connector (T16l)

9 - CAN Bus high (Infotainment)

10 - CAN Bus low (Infotainment)

11 - Power Supply to Front Information Display Control Head -J685-

12 - Terminal 31

13 - CAN Bus (Display) to the Front Information Display Control Head -J685-

14 - CAN Bus (Display) to the Front Information Display Control Head -J685-

15 - Terminal 30

16 - Permanent positive (not used)

Audi Q5. A91-11788
