Audi Q5: PASSENGER AIR BAG OFF light

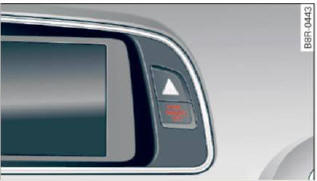

Fig. 168 Section from the instrument panel: PASSENGER
AIR BAG OFF light
The PASSENGER AIR BAG OFF light is located in
the center of the instrument panel > fig. 168.
The PASSENGER AIR BAG OFF light will come on and stay on to tell you when the
front Advanced Airbag on the passenger side has been turned off by the
electronic control unit. Each time you turn on the ignition, the PASSENGER AIR
BAG OFF light will flash for a few seconds and:
- will stay on if the front passenger seat is not occupied,
- will stay on if there is a small child or child restraint on the front
passenger seat,
- will go out if the front passenger seat is occupied by an adult as
registered by the weight-sensing mat.
The PASSENGER AIR BAG OFF light must come on and stay on if the ignition is
on and
- a car bed has been installed on the front seat, or
- a rearward-facing child restraint has been installed on the front
passenger seat, or
- a forward-facing child restraint has been installed on the front
passenger seat, or
- the weight registered on the front passenger seat is equal to or Less
than the combined weight of a typical 1 year-old restrained in one of the
rear-facing or forward-facing infant restraints listed in Federal Motor
Vehicle Safety Standard 208 with which the Advanced Airbag System in your
vehicle was certified.
If the front passenger seat is not occupied, the front airbag will not
deploy, and the PASSENGER AIR BAG OFF light will stay on. Never install a
rearward-facing child restraint on the front passenger seat, the safest place
for a child in any kind of child restraint is at one of the seating positions on
the rear seat.
If the PASSENGER AIR BAG OFF tight comes on when one of the conditions listed
above is met, be sure to check the light regularly to make certain that the
PASSENGER AIR BAG OFF light stays on continuously whenever the ignition is on.
If the PASSENGER AIR BAG OFF light does not appear and not stay on all the time,
stop as soon as it is safe to do so and
- reactivate the system by turning the ignition off and then turning it on
again;
- remove and reinstall the child restraint. Make sure that the child
restraint is properly installed and that the safety belt for the front
passenger seat has been correctly routed around the child restraint as
described in the child restraint manufacturer's instructions;
- make sure that the convertible locking feature on the safety belt for
the front passenger seat has been activated and that the safety belt has
been pulled tight. The belt must not be loose or have loops of slack so that
the sensor below the safety belt latch on the seat can do its job;
- make sure that things that may increase the weight of the child and
child safety seat are not being transported on the front passenger seat;
- make sure that the safety belt tension sensor is not blocked. Shake the
safety belt latch on the front passenger seatback and forth;
- If a strap or tether is being used to tie the child safety seat to the
front passenger seat, make sure that it is not so tight that it causes the
weight-sensing mat to measure more weight than is actually on the seat.
If the PASSENGER AIR BAG OFF light still does not come on and does not stay
on continuously (when the ignition is switched on),
- take the child restraint off the front passenger seat and install it
properly at one of the rear seat positions. Have the airbag system inspected
by your authorized Audi dealer immediately.
- move the child to a rear seat position and make sure that the child is
properly restrained in a child restraint that is appropriate for its size
and age.
The PASSENGER AIR BAG OFF tight should NOT come on when the ignition is on
and an adult is sitting in a proper seating position on the front passenger
seat. If the PASSENGER AIR BAG OFF light comes on and stays on or flashes for
about 5 seconds while driving, under these circumstances, make sure that:
- the adult on the front passenger seat is properly seated on the center
of the seat cushion with his or her back up against the backrest and the
backrest is not reclined,
- the adult is not taking weight off the seat by holding on to the
passenger assist handle above the front passenger door or supporting their
weight on the armrest,
- the safety belt is being properly worn and that there is not a lot of
slack in the safety belt webbing,
- accessory seat covers or cushions or other things that may cause an
incorrect reading or impression on the weight-sensing mat under the
upholstery of the seat have been removed from the front passenger seat,
- a safety belt extender has not been left in the safety belt latch for
the front passenger seat.
In addition to the PASSENGER AIR BAG OFF light in the center of the
instrument panel, the message PASSENGER AIR BAG OFF or PASSENGER AIR BAG ON will
briefly appear in the instrument cluster display. This is to inform the driver
of the current front passenger airbag status.
