Audi Q5: Pass-Through Door Lock, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body  Interior / Seat Frames / Pass-Through Door Lock, Removing and Installing

Removing

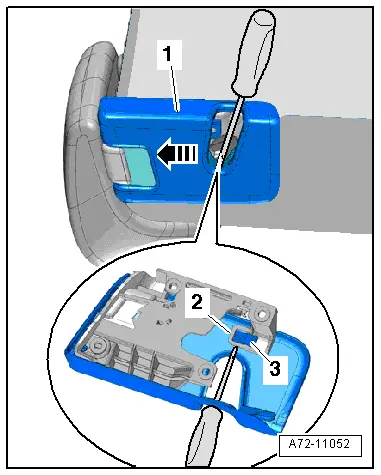

- Unlock the pass-through door.

- Unclip the trim tab -3- its retainer -2-.

- Remove the trim -1- from the pass-through door lock -arrow-.

Audi Q5. A72-11052

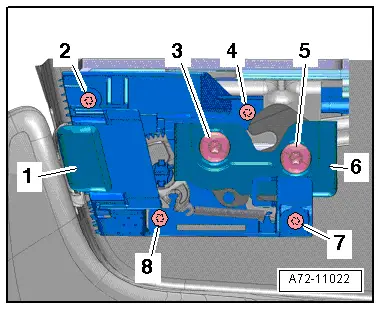

- Remove the screws -2, 3, 4, 5, 7 and 8-.

- Remove the lock -6- and the release -1- from the pass-through door.

Installing

Install in reverse order of removal.

Audi Q5. A72-11022

Pass-Through Cover, Removing and Installing

Removing

- Remove the left two third rear seat. Refer to → Chapter "Rear Seat, Removing and Installing".

- Remove the inner cover on the rear seat backrest. Refer to → Chapter "Inner Cover, Removing and Installing".

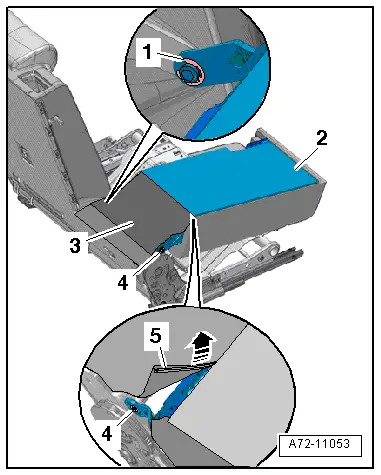

- Move the rear seat backrest cushion to the side and remove the circlip -1- with a screwdriver.

- Unlock the pass-through door.

- Remove the trim mat -3- on the pass-through door by removing the piping with a screwdriver -5--arrow-.

- Remove the bolt -4-.

- Remove the pass-through door -2- and the center armrest.

Installing

Install in reverse order of removal.

Audi Q5. A72-11053

Center Armrest Trim, Removing and Installing

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-

Removing

- Fold the rear center armrest up.

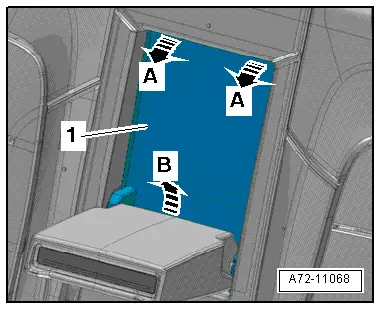

- Starting at the top, pry off the center armrest trim -1--arrows A- using the Trim Removal Wedge -3409-.

- Pull the trim as far as possible toward the rear.

- Hold the trim on the side and pull it up and remove in direction of -arrow B-.

- Remove the rear center armrest trim.

Installing

Install in reverse order of removal.

Audi Q5. A72-11068

Center Armrest, Removing and Installing

Removing

- Remove the rear center armrest trim. Refer to → Chapter "Center Armrest Trim, Removing and Installing".

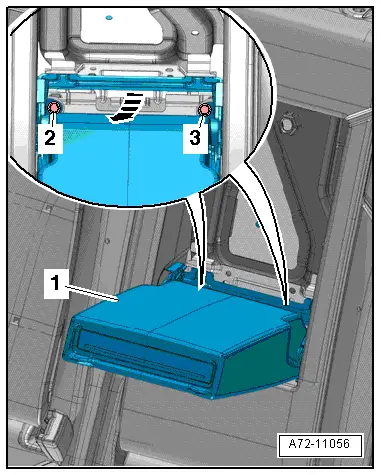

- Remove the bolts -2 and 3-.

- Disengage and remove the rear center armrest -1- on the backrest -arrow-.

Installing

Install in reverse order of removal.

Audi Q5. A72-11056

Cupholder Trim, Removing and Installing

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-

Removing

- Fold the rear center armrest up.

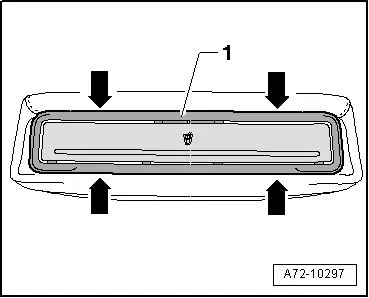

- Carefully pry off the trim -1- with the Trim Removal Wedge -3409--arrows-.

- Remove the trim from the rear center armrest.

Audi Q5. A72-10297

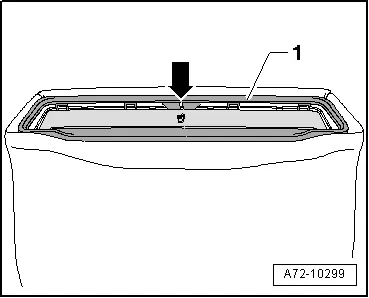

Installing

- The guide in the trim -1- must face upward -arrow-.

- Install the trim to the center armrest and press on it until it audibly engages.

Audi Q5. A72-10299

Cupholder, Removing and Installing

Removing

- Remove the cupholder trim. Refer to → Chapter "Cupholder Trim, Removing and Installing".

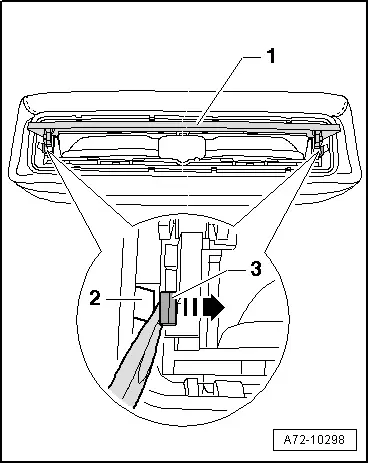

- Open the cupholder cover -1-.

- Press the clamp -3- on one side in the direction of the -arrow- using a screwdriver and carefully remove the cupholder trim over the retaining tab -2- from the rear center armrest.

- Repeat the process on the other side.

- Remove the cupholder.

Installing

Install in reverse order of removal.

Audi Q5. A72-10298

Seat Heating Control Module -J882-, Removing and Installing

Removing

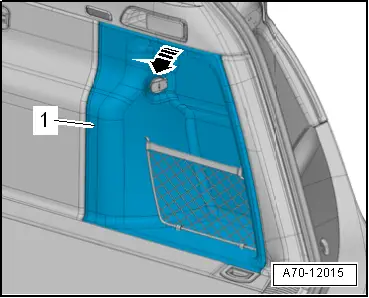

- Remove the cover -1- from the right luggage compartment right side trim panel -arrow-.

Audi Q5. A70-12015

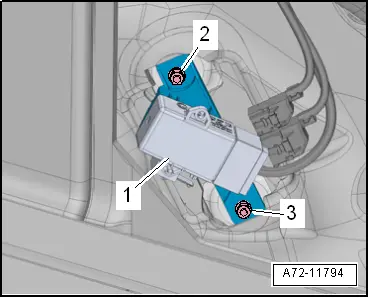

- Remove the nuts -2 and 3-.

- Remove the control module -1- and bracket.

Audi Q5. A72-11794

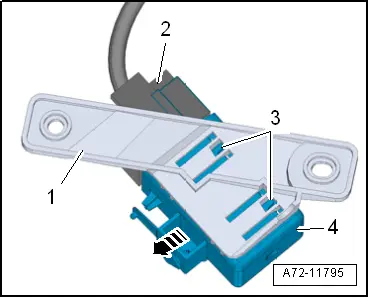

- Open the tabs -3- on the bracket with a screwdriver.

- Remove the control module -4- from the bracket -1- in direction of -arrow-.

- Disconnect the connector -2- and remove the seat heating control module.

Installing

- Clip the control module -4- back into the bracket -1-.

Install in reverse order of removal.

Audi Q5. A72-11795

Special Tools

  • Pop Rivet Nut Pliers -VAS5073A-

Audi Q5. W00-1185

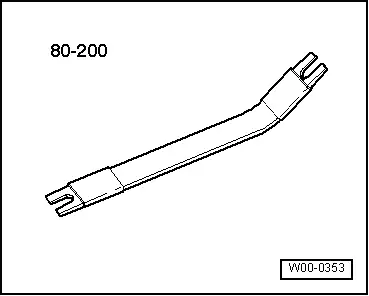

  • Pry Lever -80 - 200-

Audi Q5. W00-0353

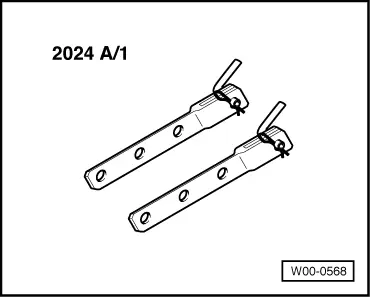

  • Engine Sling - Engine Bracket -2024A/1-

Audi Q5. W00-0568

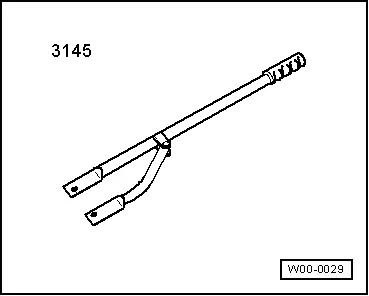

  • Driveshaft Handle -3145-

Audi Q5. W00-0029

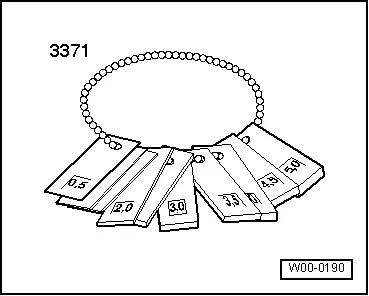

  • Gauge - Gap Adjustment -3371-

Audi Q5. W00-0190

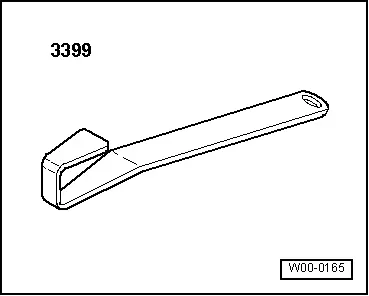

  • Assembly Tool -3399-

Audi Q5. W00-0165

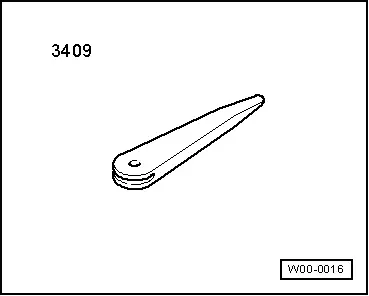

  • Trim Removal Wedge -3409-

Audi Q5. W00-0016

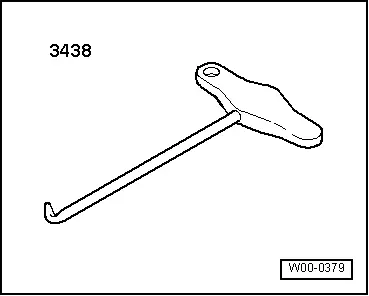

  • T-Handle Hook -3438-

Audi Q5. W00-0379

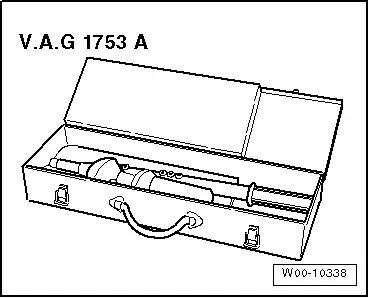

  • Pop Rivet Pliers -VAG1753A-

Audi Q5. W00-10338

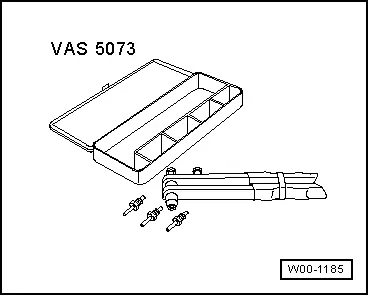

  • Pop Rivet Nut Pliers -VAS5073-

Audi Q5. W00-1185

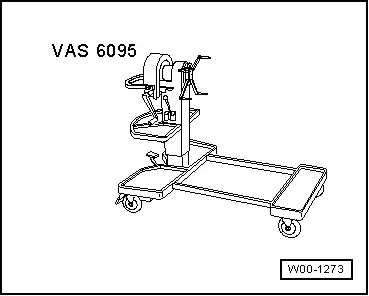

  • Engine And Transmission Holder -VAS6095-

Audi Q5. W00-1273

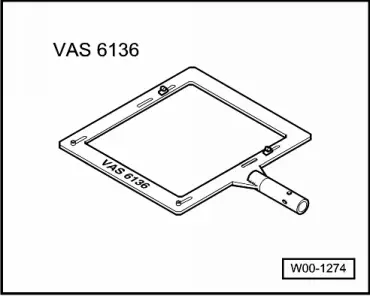

  • Engine/Transmission Holder - Seat Repair Fixture -VAS6136-

Audi Q5. W00-1274

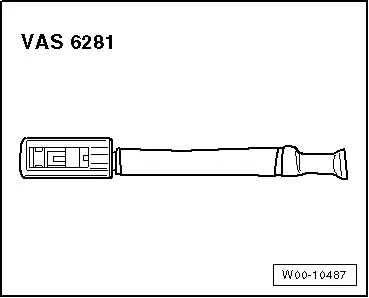

  • Airbag Adapter -VAS6281-

Audi Q5. W00-10487
