Audi Q5: How side curtain airbags work
Side curtain airbags can work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who are properly restrained.

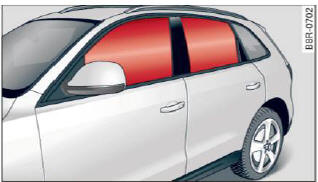

Fig. 172 Illustration of principle: Inflated side curtain airbags
on the left side
The side curtain airbags inflate between the occupant
and the windows on the side of the vehicle
that is struck in a side collision > fig. 172.
When the system is triggered, the side curtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In order
to help provide this additional protection, the
side curtain airbag must inflate within the blink
of an eye at very high speed and with great force.
The side curtain airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the supplemental
side curtain airbag inflates. This applies
especially to children.
Although they are not a soft pillow, side curtain
airbags can "cushion" the impact and in this way
they can help to reduce the risk of injury to the
head and the upper part of the body.
A fine dust may develop when the airbag deploys,
This is quite normal and does not mean there is a
fire in the vehicle.
Important safety instructions on the side curtain airbag system
Airbags are only supplemental restraints. Always properly wear safety
belts and ride in a proper seating position.
There is a lot that you and your passengers must know and do to help the
safety belts and airbags do their job to provide supplemental protection.
WARNING
Improperly wearing safety belts and improper seating positions increase
the risk of serious personal injury and death whenever a vehicle is being used.
- Never let occupants place any parts of their bodies in the area
from which the side curtain airbags inflate.
- Always make sure that the side curtain airbags can inflate without
interference. Unsuitable accessories fitted inside the expansion range of a
head airbag can dangerously interfere with its function. A deploying head
airbag develops enough force to catapult any piece of add-on component out
of its path of inflation and into the passenger compartment. An occupant hit
by such a projectile can suffer serious injury or death.
- Do not swivel the sun visors to the side if you have any objects
clipped onto them (for example pens). If the airbag should deploy, you could
be injured by these objects.
- Use the built-in coat hooks only for lightweight clothing. Never
leave any heavy or sharp-edged objects in the pockets that may interfere
with airbag deployment and can cause personal injury in an accident.
- Never use hangers to hang clothing from the hooks.
- Only use factory-installed sun shades or, in the case of shades
installed after the vehicle leaves the factory, only Audi roll-up sunscreens
may be used.
- Always sit in proper seating position and wear safety belts while
traveling so that the side curtain airbags can help provide protection.
- The airbag system can only be triggered once. If the airbag has
been triggered, the system must be replaced by an authorized Audi dealer or
qualified workshop.
- Always have work involving the side curtain airbag system, removal
and installation of the airbag components, or other repairs performed by an
authorized Audi dealer or qualified workshop. Otherwise the airbag system
may not work correctly.
- Never attempt to modify any components of the airbag system
in any
way.
