Audi Q5: Driveshaft, Removing and Installing, Driveshaft Bolted on Transmission Side
Special tools and workshop equipment required
- Drive Axle Alignment Fixture - 3139-
- Counterhold - Kit - Multiple Use -T10172- with Counterhold - Kit - Adapter 5 - T10172/5-
- Engine and Gearbox Jack -VAS6931- with Universal Transmission Support -VAG1359/2-
- High Temperature Grease. Refer to the Parts Catalog.
Driveshaft, Removing
- Note the instructions. Refer to → Chapter "Overview - Driveshaft, Bolts On Transmission Side".
- A two-column workshop hoist should be used when working on the driveshaft.
Note
Do not bend the flex joint in the front exhaust pipe more than 10º or it will be damaged.

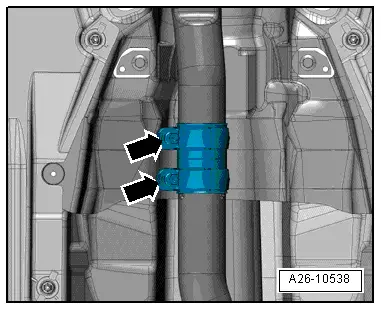

- Loosen the clamping sleeve(s) -arrows- and separate the exhaust system.
- Tie the front exhaust pipe(s) to the underbody.
- Remove the rear section of the exhaust system -2-. Refer to → Rep. Gr.26; Exhaust Pipes/Mufflers; Overview - Muffler.
Note
A second technician is needed to help remove the rear section of the exhaust system.
Audi A4 and Audi A5

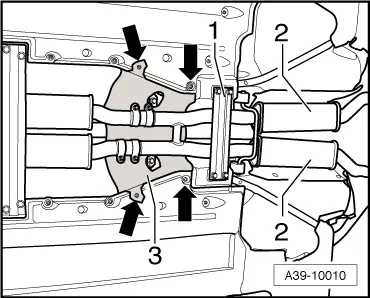

- Remove the crossmember -1-.
- Remove the heat shield -3--arrows-.
Audi Q5

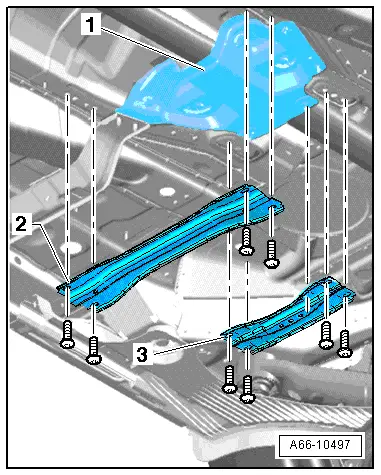

- Remove the front -2- and rear -3- crossmembers.
- Remove the heat shield -1-.
Continuation for all Vehicles

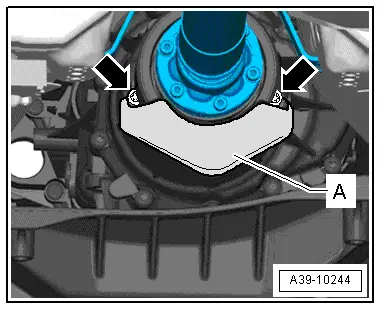

- Remove the heat shield -A- from the transmission -arrows-, if applicable.

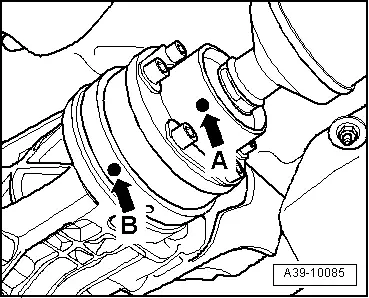

- Check whether there is a color dot on the driveshaft and at flange/driveshaft on the rear final drive -arrow A and arrow B-
- If one of these markings is no longer visible (for example -arrow A- on the driveshaft), then mark the missing point in color.
- The mark on the driveshaft -arrow A- and on the rear final drive -arrow B- are on one line.

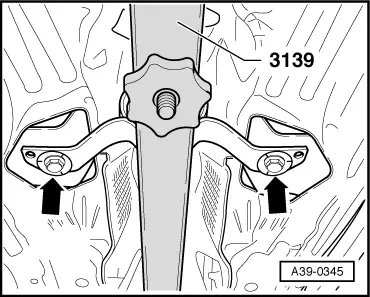

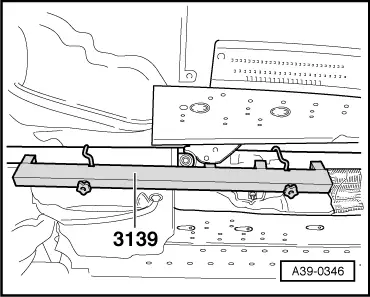

- Attach the Drive Axle Alignment Fixture -3139- and tighten the plastic nuts.
Note
Never place the Alignment Fixture on the balance plates.
- Remove the intermediate bearing bolts -arrows-.

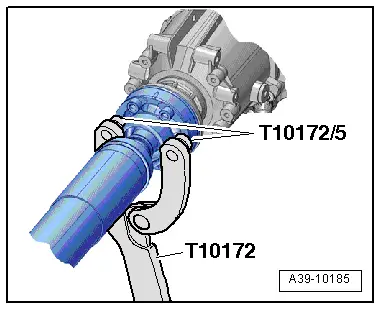

- Remove the bolts attaching the driveshaft to the transmission by counterholding with the Counterhold - Multiple Use -T10172A- and with the Counterhold - Kit - Adapter 5 -T10172/5- or Counterhold - Kit - Adapter 6 -T10172/6-.
- Remove the driveshaft from the transmission and support the driveshaft with the Engine and Gearbox Jack -VAS6931-.

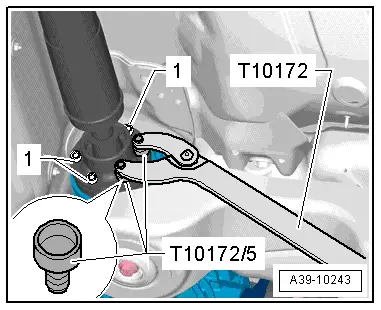

- Remove the bolts -1- (quantity: 6) from the rear CV joint.
- Use the Counterhold - Kit - Multiple Use -T10172- with Counterhold - Kit - Adapter 5 -T10172/5- or Counterhold - Kit - Adapter 6 -T10172/6-.
- Remove the driveshaft.
Note
Always transport and store driveshaft when it is fully extended.
Driveshaft, Installing
Install in reverse order of removal. Note the following:
- Remove the old, dry High Temperature Grease from the CV joints and the driveshaft flanges. Fill with the exact same amount of new High Temperature Grease.
- Always remove any remaining locking fluid from thread bores in drive flanges for transmission driveshaft and for rear final drive. They can be cleaned with a thread tap. If the threads are not clean, the bolts will break off when they are being installed.
- After removing the driveshaft from the rear final drive, do not install the additional balance washer (thicker washer) that may be between the backing plate and the bolt.
- Always replace the bolts for driveshaft (self-locking bolts).
- Pay attention to the installed position of the driveshaft: the center of the CV joint is located behind the intermediate bearing facing the rear final drive.
- Check the driveshaft seal on the rear final drive flange and the transmission for damage (bent, rubber layer worn off) and replace if damaged. Replace the damaged seal.
- Install the driveshaft while paying attention to the rear final drive:
- The dots on the driveshaft -arrow A- and on the rear final drive -arrow B- must line up.
- Maximum difference between the markings: 30º.
- Install the new bolts all the way in by hand but do not tighten them.
- Install the bolts -arrows- just far enough so that the so the intermediate bearing can still be moved.
- Tighten the bolts -1- on the rear driveshaft. Follow the tightening sequence. Refer to → Fig. "Driveshaft to Rear Final Drive - Tightening Specification and Sequence".
- Tighten the bolts on the front driveshaft. Tightening specification. Refer to -item 5-.
- Remove the Drive Axle Alignment Fixture -3139-.
- Tighten the driveshaft intermediate bearing on the body without tension. Tightening specification. Refer to -item 8-.
- Tighten the heat shield -A- to the transmission -arrows-. Tightening Specification. Refer to → Fig. "Driveshaft Heat Shield - Tightening Specification".
- Install the heat shield -1-.
- If equipped, install the front crossmember -2- and the rear crossmember -3-. Refer to → Body Exterior; Rep. Gr.66; Underbody Panel; Overview - Underbody Panels.
- Install the exhaust system and align it without tension. Refer to → Rep. Gr.26; Exhaust Pipes/Mufflers; Overview - Muffler.
