Audi Q5: Airbag Crash Sensors

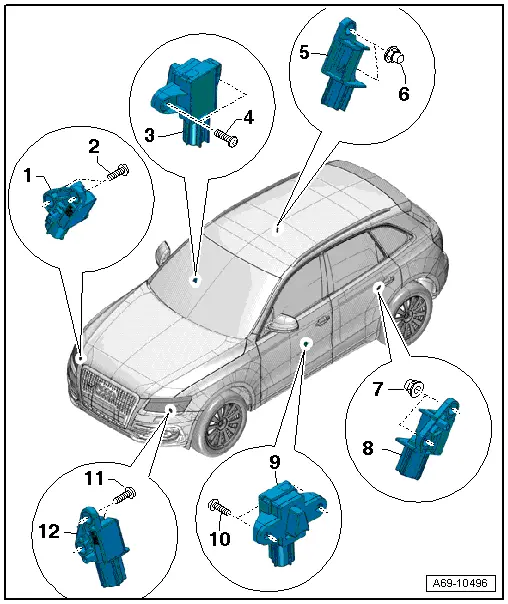

Component Location Overview - Airbag Crash Sensors
1 - Passenger Side Front Airbag Crash Sensor -G284-
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to → Chapter "Driver Front Airbag Crash Sensor -G283-, Removing and Installing".
2 - Bolt
- 9 Nm
- Quantity: 2
3 - Front Passenger Side Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to → Chapter "Front Side Airbag Crash Sensors (Pressure Sensors) Safety Precautions".
- Removing and installing. Refer to → Chapter "Driver Side Airbag Crash Sensor -G179-/ Front Passenger Side Airbag Crash Sensor -G180-, Removing and Installing".
4 - Bolt
- 5 Nm
- Quantity: 2
5 - Passenger Side Rear Side Airbag Crash Sensor -G257-
- Installed location: on the inside of the wheel housing behind the sill panel strip.
- Removing and installing. Refer to → Chapter "Driver Side Rear Side Airbag Crash Sensor -G256-/ Passenger Side Rear Side Airbag Crash Sensor-G257-, Removing and Installing".
6 - Nut
- 9 Nm
- Quantity: 2
7 - Nut
- 9 Nm
- Quantity: 2
8 - Driver Side Rear Side Airbag Crash Sensor -G256-
- Installed location: on the inside of the wheel housing behind the sill panel strip.
- Removing and installing. Refer to → Chapter "Driver Side Rear Side Airbag Crash Sensor -G256-/ Passenger Side Rear Side Airbag Crash Sensor-G257-, Removing and Installing".
9 - Driver Side Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to → Chapter "Front Side Airbag Crash Sensors (Pressure Sensors) Safety Precautions".
- Removing and installing. Refer to → Chapter "Driver Side Airbag Crash Sensor -G179-/ Front Passenger Side Airbag Crash Sensor -G180-, Removing and Installing".
10 - Bolt
- 5 Nm
- Quantity: 2
11 - Bolt
- 9 Nm
- Quantity: 2
12 - Driver Front Airbag Crash Sensor -G283-
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to → Chapter "Driver Front Airbag Crash Sensor -G283-, Removing and Installing".
Driver Front Airbag Crash Sensor -G283-, Removing and Installing
Removing
WARNING
Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
There is a risk of injury if the engine starts automatically in vehicles with the Start/Stop System.
- For vehicles with an activated Start/Stop System (recognizable from a notification in the instrument cluster), the motor can be started automatically if needed.
- Make sure that the start/stop system is deactivated when working on the vehicle (turn off the ignition, turn on the ignition when necessary).
- Turn on the ignition.
- Disconnect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.
- Remove the front noise insulation. Refer to → Body Exterior; Rep. Gr.66; Underbody Panel; Overview - Underbody Panels.
WARNING
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

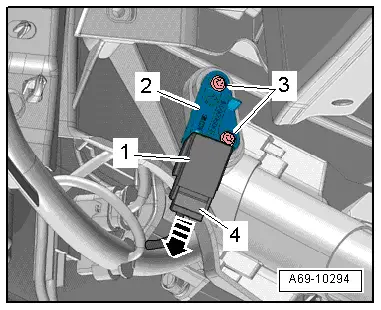

- Pull the locking mechanism -4- down -arrow- and disconnect the connector -1-.
- Remove the bolt -3- and the front airbag crash sensor -2-.
Installing
WARNING
- Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
Install in reverse order of removal. Note the following:
Note
- Make sure the connectors are installed correctly and are secure.
- Make sure the wires do not get caught.
WARNING
Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.
DANGER!
When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.
Perform the following before switching on the ignition:
- Move the selector lever into P.
- Activate the parking brake
- Turn off the ignition.
- Open the hood
- Connect Battery Charger -VAS5095A- to the battery jump start terminal.
- Turn on the ignition.
- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.
Note
If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again → Vehicle diagnostic tester.
Driver Side Airbag Crash Sensor -G179-/ Front Passenger Side Airbag Crash Sensor -G180-, Removing and Installing
Removing
WARNING
- Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Follow the safety precautions for front side airbag crash sensors (pressure sensors). Refer to → Chapter "Front Side Airbag Crash Sensors (Pressure Sensors) Safety Precautions".
- Turn on the ignition.
- Disconnect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.
- Remove the door trim panel. Refer to → Chapter "Front Door Trim Panel, Removing and Installing".
WARNING
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

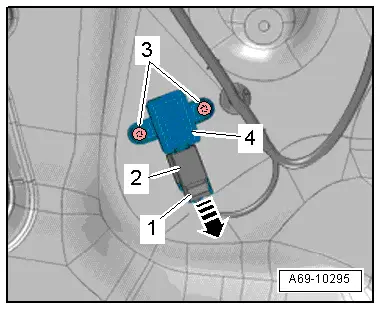

- Pull the locking mechanism -1- down -arrow- and disconnect the connector -2-.
- Remove the bolts -3- and the side airbag crash sensors -4-.
Installing
WARNING
- Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Follow the safety precautions for front side airbag crash sensors (pressure sensors). Refer to → Chapter "Front Side Airbag Crash Sensors (Pressure Sensors) Safety Precautions".
- Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
Install in reverse order of removal. Note the following:
Note
- Make sure the connectors are installed correctly and are secure.
- For proper crash sensor (pressure sensor) function, ensure door does not leak.
- All components (for example, cover, speaker, door trim) must be installed correctly.
- The door trim clips seal the system. Replace the clips if necessary.
- Make sure the wires do not get caught.
WARNING
Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.
DANGER!
When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.
Perform the following before switching on the ignition:
- Move the selector lever into P.
- Activate the parking brake
- Turn off the ignition.
- Open the hood
- Connect Battery Charger -VAS5095A- to the battery jump start terminal.
- Turn on the ignition.
- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.
Note
If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again → Vehicle diagnostic tester.
Driver Side Rear Side Airbag Crash Sensor -G256-/ Passenger Side Rear Side Airbag Crash Sensor-G257-, Removing and Installing
Removing
WARNING
Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Turn on the ignition.
- Disconnect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.
- Remove the rear sill trim. Refer to → Chapter "Sill Panel, Removing and Installing, Rear Sill Panel".
WARNING
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

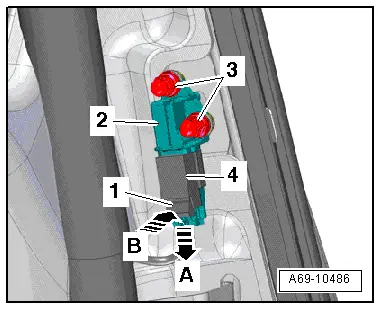

- Pull the catch -1- down -arrow A- and press it -arrow B-, then disconnect the connector -4-.
- Remove the nuts -3- and the side airbag crash sensors -2-.
Installing
WARNING
- Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
Install in reverse order of removal. Note the following:
Note
- Make sure the connectors are installed correctly and are secure.
- Make sure the wires do not get caught.
WARNING
Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.
DANGER!
When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.
Perform the following before switching on the ignition:
- Move the selector lever into P.
- Activate the parking brake
- Turn off the ignition.
- Open the hood
- Connect Battery Charger -VAS5095A- to the battery jump start terminal.
- Turn on the ignition.
- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.
Note
If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again Vehicle Diagnostic Tester.
