Audi Q5: Vehicle tool kit and tire repair set
Applies to Vehicles: with hybrid drive

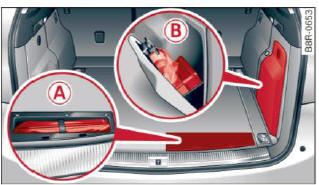

Fig. 115 Luggage compartment: vehicle tool bag and tire
repair set
The vehicle tool kit is found under a cover in the
cargo floor > fig. 115 (A), The tire repair set (Tire
Mobility System) is found in the storage compartment
in the right side trim panel (B).
Additional information about the vehicle tool kit
may be found under and about the
tire repair set under.
Tips
The right storage compartment in the luggage
compartment and its contents must always
be kept in the vehicle. The vehicle must
not be operated without the tire repair set.
